Gmc-09, 12, 18, 22...AC Contactor

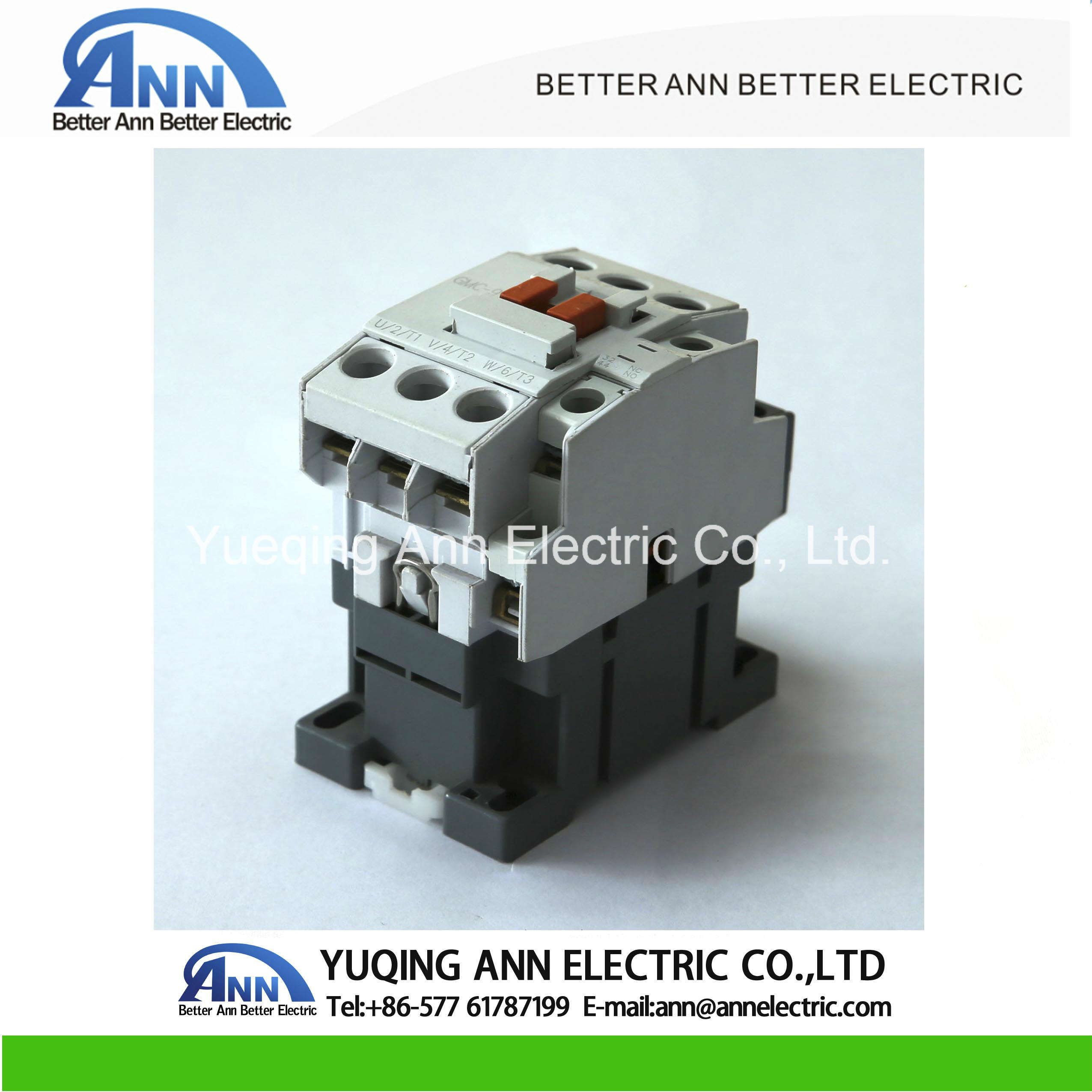

Name: Gmc-09, 12, 18, 22...AC Contactor
Brand: all-electronics-online.com
SKU: 838955375
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 2.6-23/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GMC

Product Description

1. GMC Series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50HZ or 60HZ, rated current up to 95A, for making frequently starting & controlling the AC motor.

2. 09-220A GMC AC Contactor can be Combined with the auxiliary contact block, thermal relay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.

3. With the thermal relay, it is combined into the electromagnetic starter.

Specifications

Mode	IEC-60947 AC1 duty	UL AC3 duty				Continuous current(th)
		UL AC3 duty
		200-240V	380-440V	500-550V	690V
GMC-9	20A	2.5KW 11A	4KW 9A	4KW 7A	4KW 5A	20A
GMC-12	20A	3.5KW 13A	5.5KW 12A	7.5KW 12A	7.5KW 9A	25A
GMC-18	25A	4.5KW 18A	7.5KW 18A	7.5KW 13A	7.5KW 9A	30A
GMC-22	32A	5.5KW 22A	11KW 22A	15KW 22A	15KW 18A	32A
GMC-32	50A	7.5KW 32A	15KW 32A	18.5KW 28A	18.5KW 21A	45A
GMC-40	60A	11KW 40A	18.5KW 40A	22KW 32A	22KW 25A	50A
GMC-50	80A	15KW 55A	22KW 50A	30KW 43A	30KW 33A	70A
GMC-65	100A	18.5KW 65A	30KW 65A	37KW 60A	37KW 47A	80A
GMC-75	110A	22KW 75A	37KW 75A	45KW 64A	45KW 47A	90A
GMC-85	135A	25KW 85A	45KW 85A	45KW 75A	45KW 52A	100A
GMC-100	150A	30KW 105A	55KW 105A	55KW 85A	55KW 65A	160A
GMC-125	150A	37KW 125A	60KW 120A	60KW 90A	60KW 70A	160A

Mode	Panel installation	External dimension(mm)	Mounting dimension(mm)


GMC-9	Rail & screw	44x80x86.8	30~35x48~59	35x60
GMC-12
GMC-18
GMC-22
GMC-32		68x82x94.6
GMC-40
GMC-50	Rail & screw	94x123.5x117.4	100x50~60	100x60
GMC-65
GMC-75
GMC-85
GMC-100		100x157.4x146.5	80x110	90x125
GMC-125			80x100	90x125
