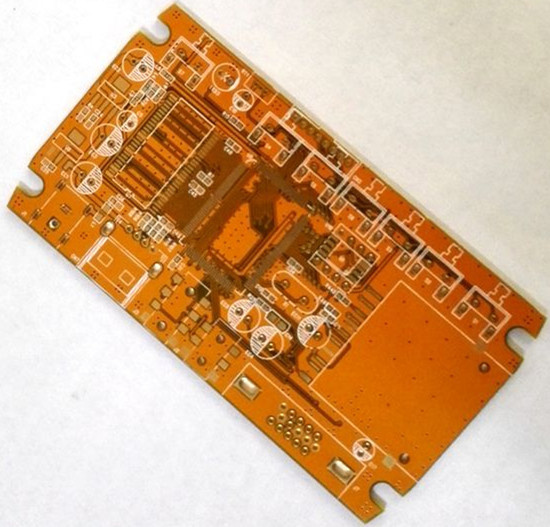

Gold Plated 4 Layer PCB for Handheld Game Player

Name: Gold Plated 4 Layer PCB for Handheld Game Player
Brand: all-electronics-online.com
SKU: 775512055
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	US $ 0.015-0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	xzg120504
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Western Europe
Tg Value:	Tg150
Board Thickness:	1.6mm
Copper Thickness:	1 Oz
Surface Finishing:	Gold Plating
Soldermask:	Yellow
Silkscreen:	White
Min Line W/S:	4/4 Mil
Min Hole Size:	0.2mm
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Application:	Handheld Game Player
Brand:	Xzg

Product Description

Specification:

Layer	4
Material	FR4-TG 150
Board Thickness	1.6mm
Copper Thickness	1oz
Soldermask	Yellow
Silkscreen	White
Surface Finishing	Gold Plating
Min Line Width/Space	4/4 mil
Min Hole Size	0.2mm

PCB Packing - Inner packing: Vacuum packing / plastic Bag
- Outer packing: Standard carton packing
Certificate: UL, ISO 9001, ISO 14001,TS16949

Factory Tour:

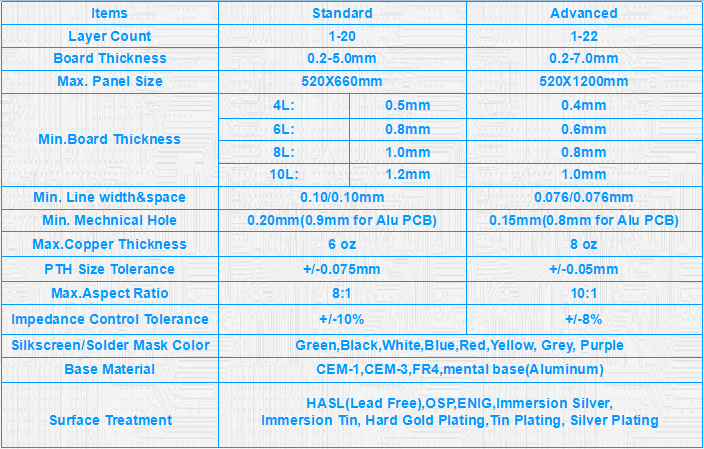

Capability:

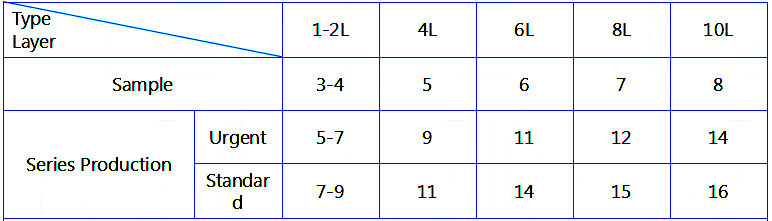

Lead Time:

1. Lead time is Calendar Days counted from date of EQ confirmed;
2. Shorter lead time is available with express production service;

Why US:

UL (E246887), ISO9001, TS16949, ISO 14001 certified.
Turnover USD 50-100 million per year
25,000 sqm area,1100 staff
Mass Production from single to 20 layers
Special Material: ROGERS, Arlon, Taconic.etc.
Client: SAMSUNG, Skyworth, Malata, Midea.etc.

FAQ:

Q1:Are you a manufacturer or trading company?
A:XZG is a PCB manufacturer, specialized in PCB for over ten years.

Q2:What kind of PCB file you need before production?
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)

Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.

Q4:What is your minimum order quantity?

A:Our MOQ is 1 PCS.

Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
