| Prod Model: |
renhotec -610-0062 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| Impedance: |
50 Ohm &75 Ohm |
| Body Material: |
Brass or Zinc Alloy |
| Finish: |
Nickel Plating |
| Standard: |
RoHS Compliant |
| Lead Time: |
5-7 Days |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Double Bayonet Plug-in |

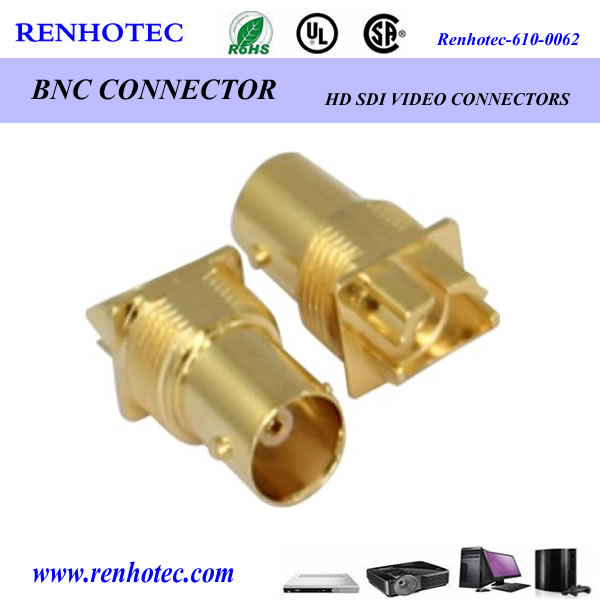

Product Description
BNC connectors are light and compact connectors which use bayonet-lock coupling for easy coupling.50ΩType connectors can be used with 75ΩTransmission lines when operating at frequencies of 200MHz or lower.However it is recommended that BNC 75ΩConnectors should be used at frequencies of over 200MHz.
Material and fish:
Shell:Zinc alloy gold plated
Contact pin:Brass gold plated
Socket:Beryllium gold plated
Elastic contact:Beryllium gold plated
Insulator:PTFE
Crimp ferrule:Copper alloy nickel or gold plated
Oo-ringsealing:6146 silastic
Major technical chracterstics:
Impedance:50/75 ΩNominal
Frequency Range;0-4 GHz with low reflection
Voltage Rating:500 volts peak
Dielectric Withstanding Voltage:1, 500 volts RMS
VSWR:M39012 straight connectors:1.3 max 0-4 GHz
M39012 right angle connectors:1.35 max 0-4 GHz
MIL-C-39012 Contact ResistanceCenter contact:1.5 mΩ;Outer contact:0.2 mΩ
MIL-C-39012 Insulation Resistance:5, 000 MΩ
MIL-C 39012 Braid to Body0.1 milliohm
MIL-C-39012 RF Leakage-55 dB min at 3 GHz
MIL-C-39012 Insertion Loss0.2 dB min at 3 GHz
Applications:
·Antennas
·Automotive
·Cable Modems
·Computers/LANs
·Medical Equipment
·Radios
·Telecom
