Product Description

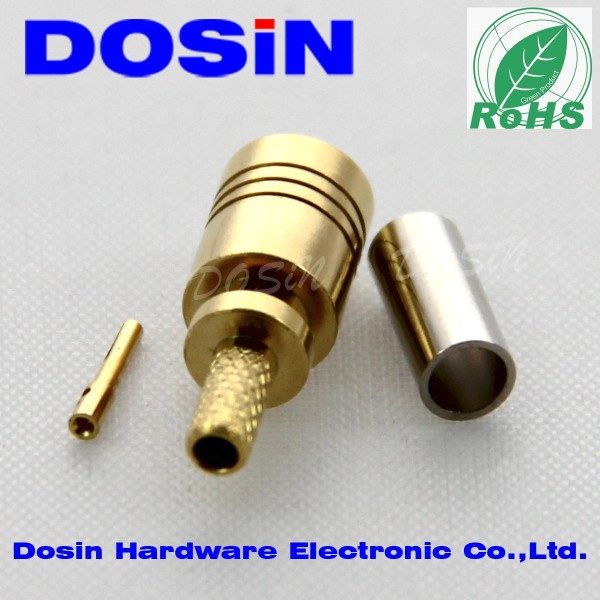

Gold-Plated Plug RF SMB Connector for Cable
The SMB interface features a snap-on coupling mechanism and is available in 50 Ohm and 75 Ohm configurations. SMB connectors offer broadband performance with low reflection DC to 4 GHz and utilize die cast components on non-critical areas to provide a low-cost solution.
MAJOR TECHNICAL CHARACTERISTICS
| Major Technical Characteristics |
| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Vibration | 100m/S2 (10 to 2000 Hz), 10G |
| Impendence | 50ohm |
| Frequency Range | DC-4GHz |
| Working Voltage | 335V r.m.s at sea level |
| Withstanding Voltage | 1000V r.m.s at sea level |
| Center Contact Resistance | ≤3Mohm |
| Outer Contact Resistance | ≤2.5Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.28N |
| Coupling Nut Retention Force | ≥180N |
| Insertion Loss | ≤0.15dB/6GHz |
| Voltagge Standing Wave Ratio : |
| Straight | ≤1.10+0.02f |
| Right Angle | ≤1.20+0.03f |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass |
| Contact | Brass |
| Insulator | PTFE |
| Suitable cables |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
APPLICABLE STANDARD
MIL-C-39012;
CECC 22130;
IEC 60169-10.
