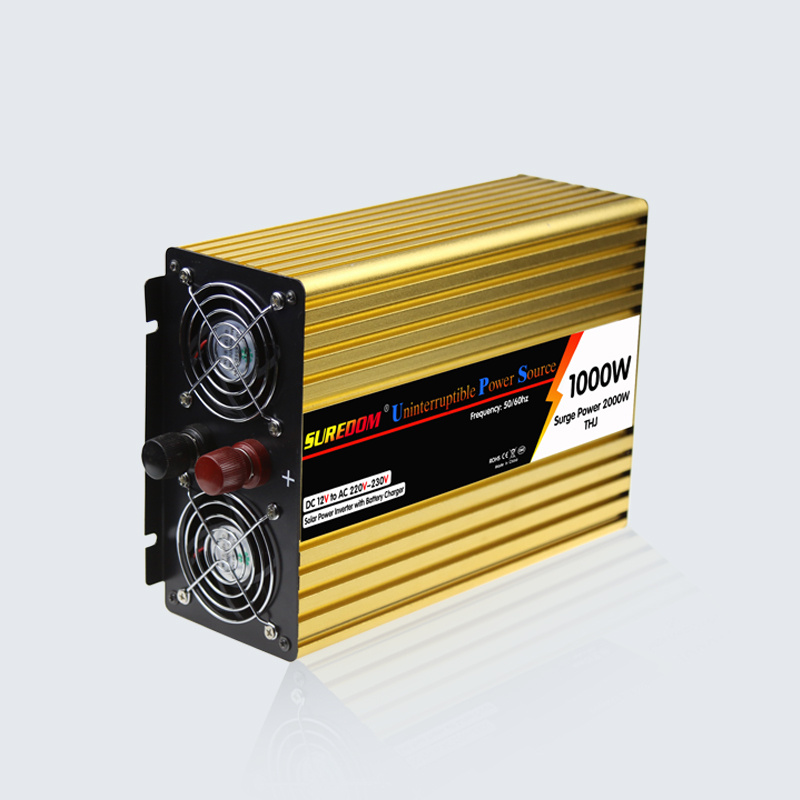

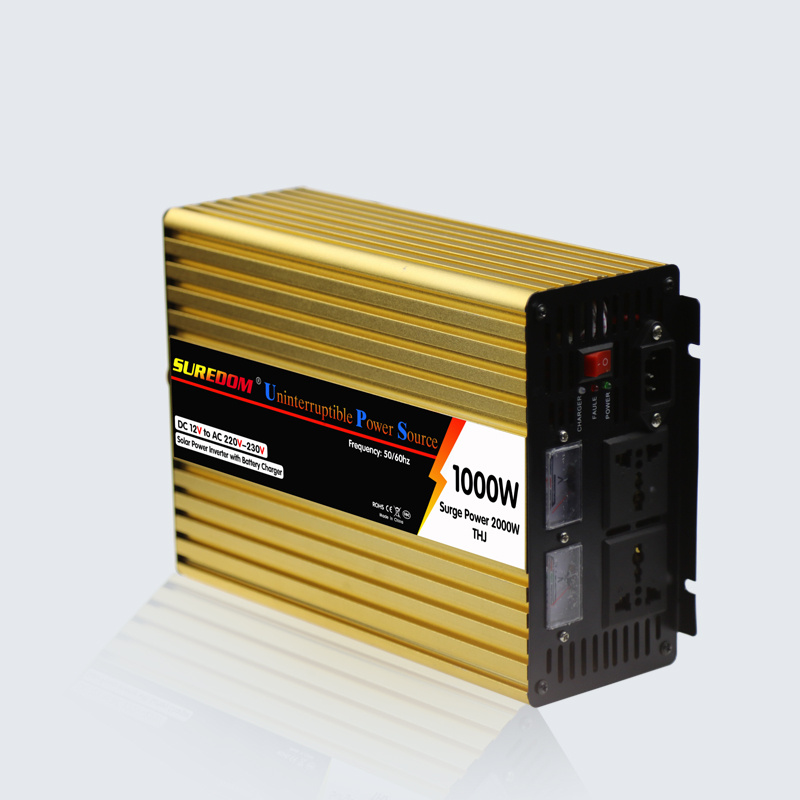

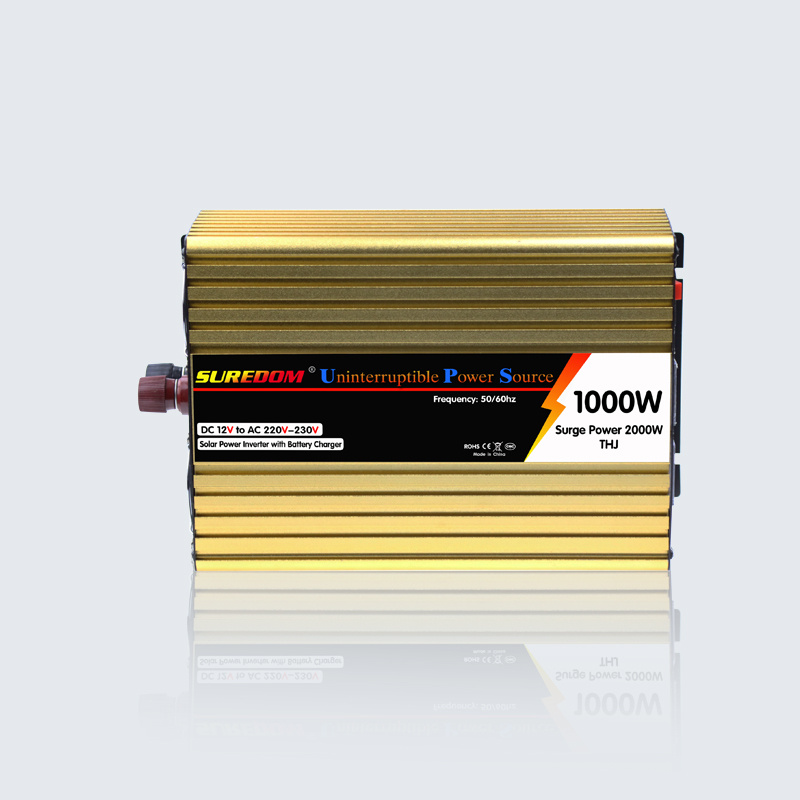

Golden 1000W UPS Power Inverter with Digital or Voltmeters

Product Feature:

1. Factory 1500w power inverter with charger
2. All round safety protection

3. LED indicator

4. 12 months warranty. Over 5-year lifetime!
5. OEM service
6. Package: Blister inner packing, carton mass packing.

7.Offer battery cable

8.Excellent double-faced circuit board and components

9.Heat-Sink built in internal and come with Auto temperature control fan for heat dissipation

10.CE EMC LVD ISO9001 certification

Protection Funtion:

1. LED Indicator
2. Buzzer Alarm
3. Over-Load Protection
4. Over-Voltage Protection
5. Low-Voltage Protection
6. Over-Temperature Protection
7. Short-circuit protection

Application:

1) In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2) Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.

Parameter:


Company Profile:

FAQ

Q1. The electric appliance doesn't work and the indicator light isn't on.
Reason:
1. Faulty battery.
2. Wrong connection of positive pole and negative pole.
3. Loose connection of the cables.
Answer:
1. Check the battery, and change it if needed.
2. Check the connection of battery. The inverter might be damaged and should
be changed or sent to be repaired.
3. Check the cables and connection points, and tighten the terminals.

Q2. The electric appliance doesn't work and the RED indicator light is on.
Reason:
1. The rated power of electric appliance exceeds the nominal power of inverter
which leads to over load shut down.
2. The rated power of electric appliance is less than the nominal power of the inverter
but its peak power is too high which leads to over load shutdown
3. The electricity in battery runs out (the inverter alarms)
4. Poor ventilation causes over heat shutdown
5. Input voltage is too high.
Answer:
1. Please use the electric appliance which power is less than the nominal power of inverter.
2. The peak power of electric appliance is no more than that of power inverter, or the same power.
3. Charge the battery or change it.
4. Turn off the inverter for 15 minutes, remove the items near fan and those around the inverter,
and put the inverter in a shady and cool place
5. Turn off the inverter and test the output voltage of battery.

Q3. The output voltage of power inverter tested is too low.
Reason: Generally the numerical reading range of voltmeter for testing use is too small.
Answer: If you test the output voltage of modified sine wave inverters, please use "true RMS
Muti-meter" to obtain the accurate data.


Q4. Only small power load can be driven.
Reason: When the current goes through the cables, the voltage declines.
Answer: Shorten the length and use thicker cables.

Q5. The hours of use are too short.
Reason:
1. The electricity consumption of the electric appliance is larger than rated load of power inverter.
2. The battery is faulty or damaged
3. The battery is not well charged
4. The current declines when through cables
Answers:
1. Use larger capacity battery.
2. Change battery.
3. If the charger can't charge the battery fully, it needs to change a better intelligent charger.
4. Shorten the length of the cables and use the thicker cables.
