| Prod Model: |
IRQ/SK15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 250mm Lead Wire Length: |
ISO 9001 Certificate |
| 340mm Total Length: |
270mm Heated Length |
| D2 Ceramic Cap: |
12mm Diameter |
| Filament: |
Tungsten |
| 220v: |
1000w |
Product Description

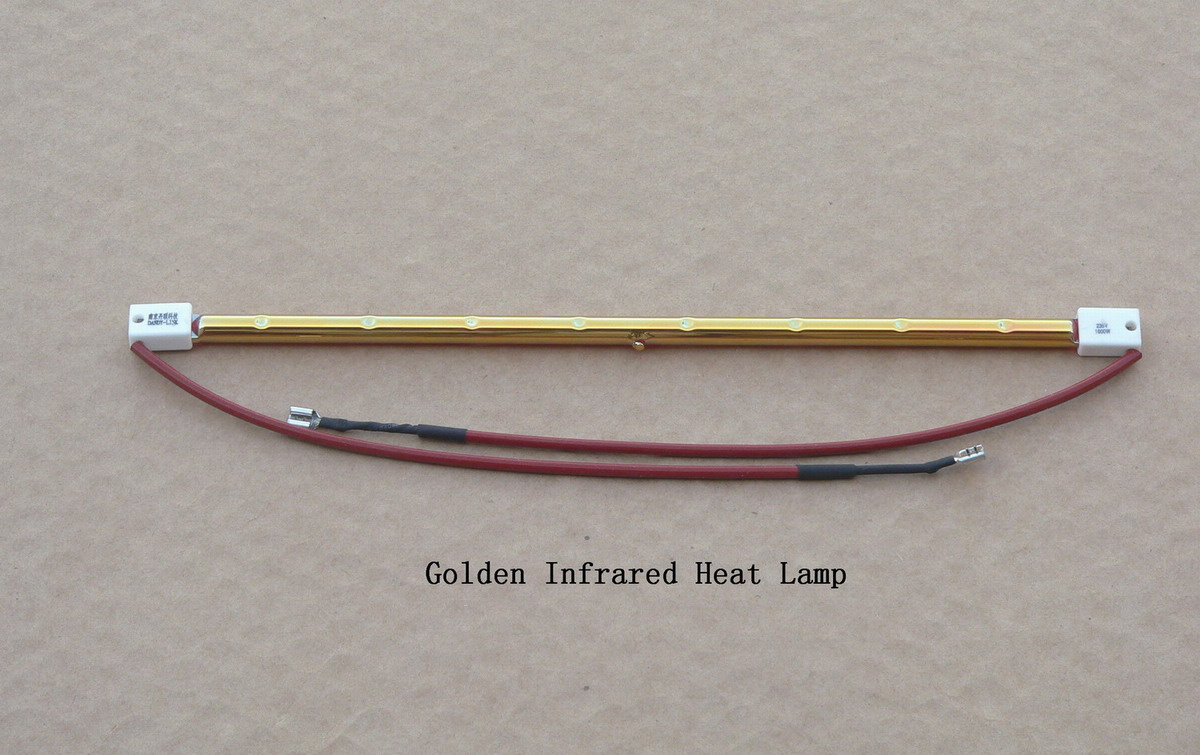

Infrared heater lamp is an electric heater consisting of a high-power incandescent lamp that emits infrared radiation. Heat lamps have a wide range of applications. Heat lamps are used on farms to keep young poultry or young pigs warm. Lights used for poultry are often called brooding lamps. Heat lamp assemblies arecombined with forced air systems for drying coated and printed materials. Infrared quartz heat lamps are very efficient for drying the inks and coatings commonly used for printing, particularly high-quality, glossy printing work which involves relatively large amounts of ink and coatings and is done on paper which is generally not as absorbent as, for example, newsprint.
Typical quartz heat lamp assemblies include reflectors which partially or fully surround the quartz tubes and tube housings which include the electrical connections. In processing of integrated circuit devices, a long arc gas-discharge lamp is used for rapidly heating a semiconductor wafer. A heating lamp assembly for use with semiconductor reactors has a reflector assembly constructed of tubes joined together by heat conductive spacers to provide for water cooling of the reflector assembly.
| Heated length | Total length | Power | Voltage | Reflector | Diameter | Ceramic cap |
| (mm) | (mm) | (W) | (V) | (mm) |
| 100-300 | 170-400 | 300-1500 | 110/115/120/127 | / | 10/12/14/15 | A1/C/D2/E/X |
| 200-400 | 270-500 | 500-2000 | 220/230/235/240 | / | 10/12/14/15 | A1/C/D2/E/X |
| 400-800 | 470-900 | 1500-3000 | 220/230/235/240 | / | 10/12/14/15 | A1/C/D2/E/X |
| 400-800 | 470-900 | 2500-4500 | 380/400/415 | / | 10/12/14/15 | A1/A2/C/D2/E/X |
| 700-1200 | 770-1300 | 1500-2500 | 220/230/235/240 | / | 10/12/14/15 | A1/A2/C/D2/E/X |
| 1200-2000 | 1270-2100 | 1500-2500 | 220/230/235/240 | / | 10/12/14/15 | A1/A2/C/D2/E/X |
Nanjing Dandy-Link Technology is a science & technology-oriented company that has been highly honored by the Government and Business Sector for our honest reputation for successive years. And we are invited in developing the newest GB/T 4654-2008 National Infrared Standards for non-metallic basic body infrared heater. The high-quality products and good services from Dandy-Link Technology have already built up its own brand reputation, it's also highly praised by many clients, and it's used to replace foreign brands. Our company's products have all passed the ISO9001 authentication, and are honored as "quality-credit guaranteed demonstration company" by the Light production quality guarantee centre for many years. Thereinto the infrared heating emitters were awarded as "reassurance brand" because they continuously passed the examines, and it was unfurled on the
andand some other press.
Dandy-Link is a science & technology-oriented, quality-oriented, and service-oriented company, specialized in designing, manufacturing and developing the following products:
1. IR radiation heating emitters: High output IR radiation heating emitter (quartz heater), carbon fiber heater and IR radiation heating emitter with gold reflective coating.
2. Temperature and power controllers: Thyristor trigger(Thyristor zero crossing controller, Phase shift controller), Trigger module, Thyristor main circuit unit, Integrated Thyristor modular AC power controller and temperature control system.
3. IR radiation drying equipments: Infrared heating oven, Automotive paint baker and matched heating equipment sets.
We possess our own development group and core technology of said products. Therefore we have advantages over other similar products in advance and in quality. Our company's heating and temperature control products have a high technique jump-off point and a high quality/price rate, and considered more from the users' view, so that the reputation in the clients has risen quickly.
High quality Combined with our business concept of "Customer-centric", you will enjoy our suit and price-reasonable production, advanced and mature technology, comprehensive and consummate service. We believe that we can satisfy your company, and we hope we can have the opportunity to serve your company.
Any inquiry is appreciated.
Dandy-Link Technology_we can do better!
Anything need, please contact Anna: +86 18936279957.
