Good 11.1V 2400mAh Li-ion Rechargeable Battery Pack

Name: Good 11.1V 2400mAh Li-ion Rechargeable Battery Pack
Brand: all-electronics-online.com
SKU: 761040195
Availability: InStock
Rating: 4.7 (76 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP0111-2400-L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Type:	Rechargeable Battery
Delivery Date:	15days
Warranty:	One Year
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel

Product Description

Good 11.1v 2400mah li-ion rechargeable battery pack

Product Description

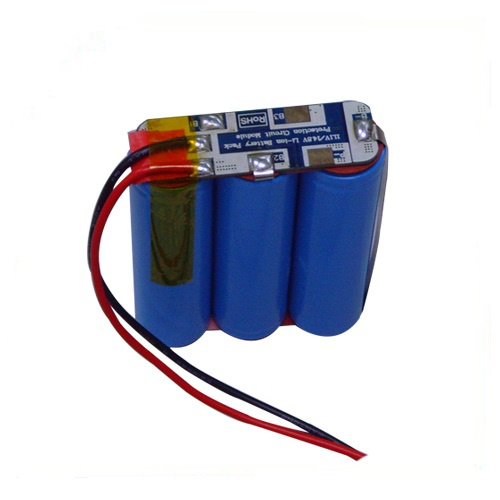

Description	Li-ion Battery: 11.1V/2.4Ah (26.64Wh,) with PCM Battery:Li-ion battery 18650 3.7V/2400mAh Protected by 1 pcs PCM (4A limited) located on the top Battery pack is wrapped blue PVC
Voltage	Voltage: 3.7V (working) 4.2 V (peak)
Capacity	2400 mAh (8.88Wh)
Cycle life	> 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection +tupian	One PCM (PCM-Li03S8-012) installed with the battery pack and protects the battery from Over charge detection voltage(4.35V±0.025V) Over discharge detection voltage (2.40V±0.08V) Over current detection current ( 15±3A) Short circuits Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
Pre-wired	Discharge terminal: 2" long 24AWG open wire end Red wire = Positive Black wire = Negative
Charging rate	1.25A (0.5C)
Max. Discharging Rate	15A limited by 24AWG wire
Dimensions (LxWxH)	56mmx 20mm x 70mm
Weight	160g
Warranty	Limited Warranty: Repair or exchange only within 30 days.
Charger	Please use our charger below for fully recharge battery pack. Smart Charger (2.0A) for 12.6V Li-ion Battery Pack, 100-240V (4.0hrs charge time)
Applications
Warning

Protection circuit provide such protection as follow:
Over charger protection

Over discharge protection

Over Current protection

Short circuit protection (Exterior Short Circuit and can be automatic recovery)

Low resistance

Temperature:
Charging temperature: 0 - 45 C degrees
Discharging temperature: -20 - 60 C degrees
Storage temperature: -20 - 45 C degrees

Remark: The cell can be replaced by other available models such as 14430 14500 18490 18500 and so on, we can make all kinds of customized battery packs.
If you have different requirement on technique, shape and so on for the battery pack, we can made-to-order as per your request.
