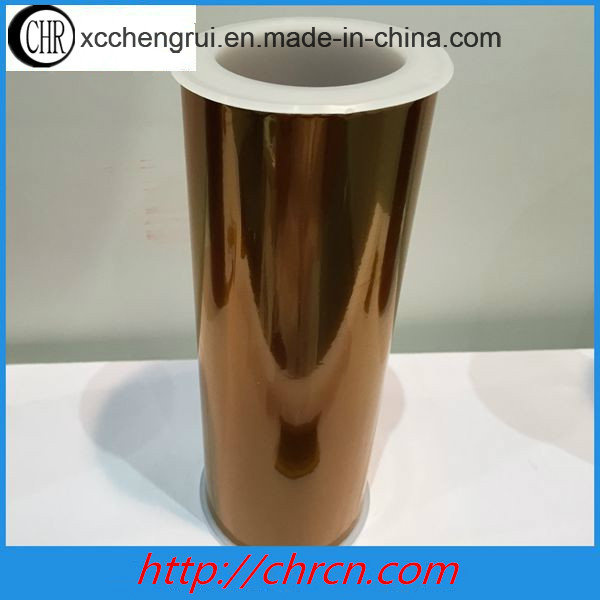

Good 6051 Insulation Material Insulation Polyimide Film

Name: Good 6051 Insulation Material Insulation Polyimide Film
Brand: all-electronics-online.com
SKU: 702518442
Availability: InStock
Rating: 4.8 (29 reviews)

Price:	US $ 28kg
Trade Terms:	FOB,CFR,CIF
Min Order:	50kg
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	6051
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Mid East
Temperature:	H Grade
Rated Voltage:	4kv-15kv
Tensile Strength:	135MPa
Style:	Rolls, Tapes or Stripes
Brand Name:	Chr
Application:	Motor
Type:	Solid
Chemistry:	Organic Insulation
Thermal Rating:	H 180
Maximum Voltage:	<10KV
Material:	Polyimide
Color:	Yellow, Golden
Brand:	Chr

Product Description

Dscription:

Polyimide film 6050 is synthesized by polymerizing PMDA and ODA in strong polar solvents through the process of forming film and imines treatment under high temperature.

Features:

Polyimide film 6050 ,with excellent electric insulating prpperties, heat resistance, radiation resisting property

Class : H

Standard number:GB/T13542.6-2006

Polyimide film 6050 can be used for H grade electrical machinery, electrical insulation and other uses of electrical insulating materials, which can becutted different width of dribbling according to customers requirements

Normal Thickness: 25um, 40um, 50um, 75um,100um.It can be used in flexible printed circuits and as insulation materials.

Technical data:

Properties		Units	Values
Density Min		g/cm³	1.40
Tensile strength min	Longitudinal Direction	Kgf/mm²	10
	Transversal Direction		10
Elongation min	Longitudinal Direction	%	25
	Transversal Direction		20
Breakdown strength min	20±5	Kv/mm	100	Min Value	60
	200±5		80		48
Volume resistivity min	20±5	Ω·cm	1x1015
	200±5		1x1012
Surface resistivity min		Ω	1x1014
Loss tangent (50Hz) max			0.01
Dielectric constant (50Hz) max			4

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
