Good Insulation Alumina Ceramic Substrates with ISO9001 Certificate

Name: Good Insulation Alumina Ceramic Substrates with ISO9001 Certificate
Brand: all-electronics-online.com
SKU: 824618735
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	US $ 1-500/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	N/M
Product Name:	Ceramic Substrates
Advantages:	Very Good Insulation
Surface Treatment:	Good Flatness and No Any Cracks, Chips and Bubbles
Shape:	Round, Square
Application:	Insulators
Type:	Insulation Sheet
Material:	Ceramic
Thermal Rating:	250 250
Maximum Voltage:	>100KV
Chemistry:	High Purity Alumina
Classification:	Ceramic Insulation Materials
Brand:	N/M

Product Description

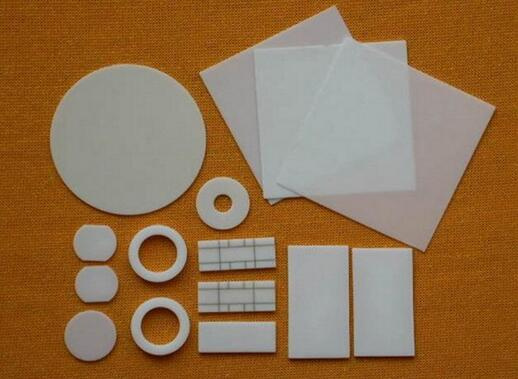

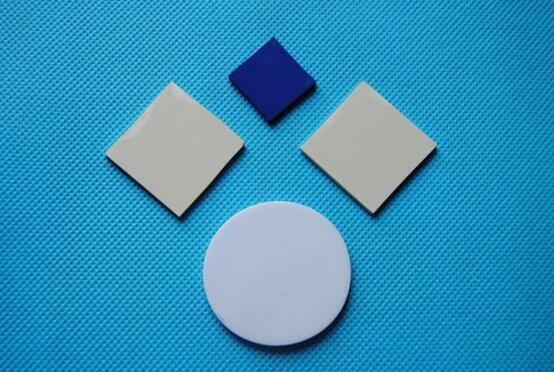

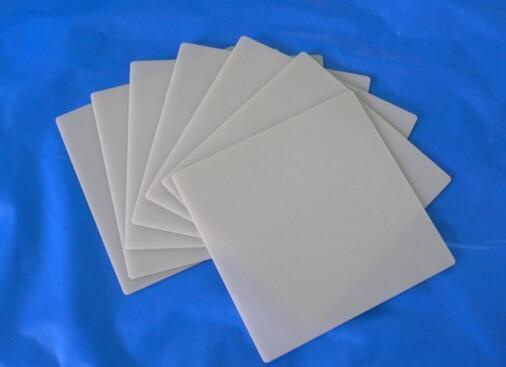

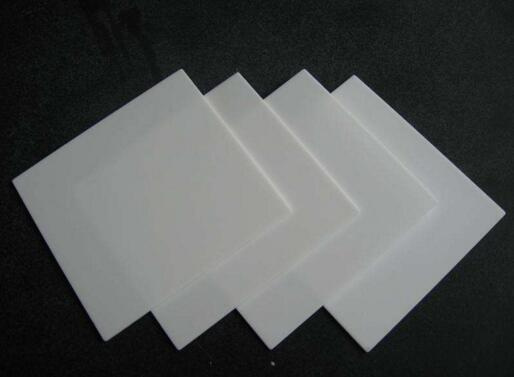

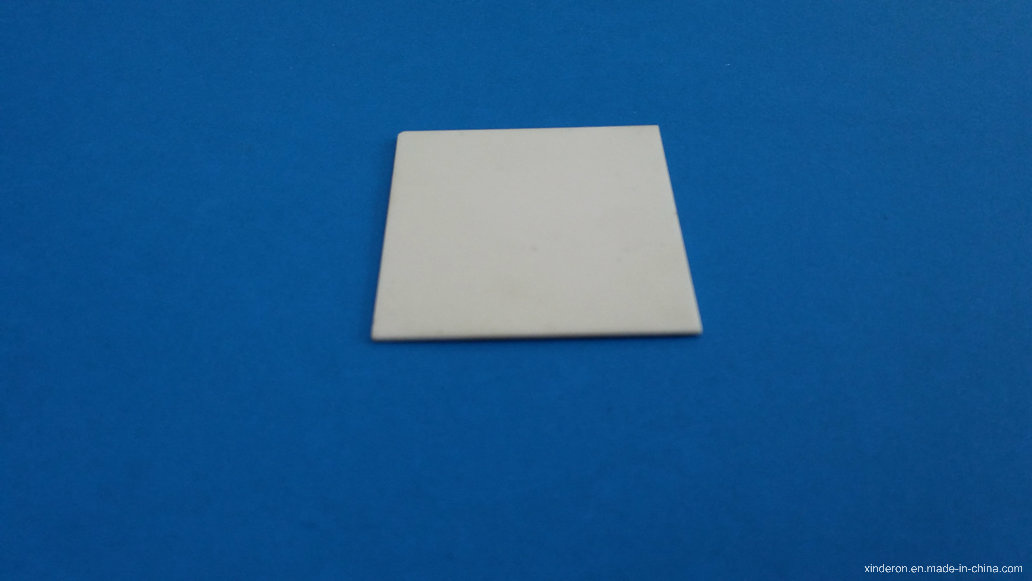

Ceramic Substrates

Features

1.High thermal conductivity

2.Good thermal shock resistance

3.Good surface roughness, flatness.

4.High dielectric strength, low dielectric constant and dielectric loss.

5.Laser cutting makes tight tolerance.

Ceramic substrates are widely used for direct bond copper substrate (DBC), printer, LED and other high power circuit substrates and heat emission substrates of electronic components.

Our Services

Why choose us?

We are specialized advanced technical ceramics manufacturer,who have founded 8 years.The quality and service of the products are guaranteed.

We provide customized parts according to user's requirement.We produce and process non-standard components to satisfy the customer's need.

Pre-sale service: Professional technical persons will choose suitable materials for you due to using environment about theceramic parts.

The sale of services: If you need,we can provide the sample for you to go on testing,and also provide technical help and supports for you.

After-sales service: Accept any repair of the product, help to improve technology for customer. And also provide long-term technical help and support for you!

FAQ

1. How can I get an offer?

You can send your drawing with technology requirements and inform your purchase quantity. If possible, please inform what is your part used in. We will confirm what is the most suitable material and quote our best price to you in 24 hours.

2. Can you provide the free samples?

Yes, we can provide the sample free of charge if we have the stock product the same as what customer required, but the freight is on your side.

3. Can you accept OEM & ODM?

Yes, we can produce the products according to your demand and drawing.

Jiangsu Xindelong Precision Ceramics Co., Ltd. is located in Yixing Economic Development Zone, which is famous for China all over the world, the company name of Yixing Tigar Precision Ceramic Co., Ltd is our subsidiary.

Xindelong Ceramics has dedicated in manufacturing and processing precision parts/components with a wide range of products and services covering high precision ceramics and high performance ceramics, such as machinery ceramic parts/components, textile ceramic parts, electronic ceramics parts, engineered ceramic components, pump components, valve components, flow components, wear components, corrosion resistant ceramic parts, high temperature ceramic parts, welding ceramic parts, ceramic parts for semiconductor etc. The raw materials is including alumina, zirconia, silicon carbide, silicon nitride, mullite, cordierite and steatite, PBN/ALN, BeO and graphite and so on.

Xindelong Ceramics has complete facilities, such as CNC machines, internal grinding machines, cylindrical grinding machines, centerless grinding machines, double surfacce lapping machines, vibration polishing machines, honing machines, and electron microscope, three-coordinates measuring machine, hardness tester, surface roughness instrument-to enable us to manufacture technical ceramic components to the highest specifications.

Our current customers comes from USA, Canada, Germany, England, Italy, Spain, Denmark, Mexico, Brazil, Argentina, Korea, Singapore, Thailand, Malaysia and so on.

Our company always insists on quality first, the supremacy of the purposes of the users. We'd like to cooperate sincerely with enterprises at home and abroad to create a win-win future.
