Good Performance 50ohm Coaxial Cable 3D-Fv with Connectors

Name: Good Performance 50ohm Coaxial Cable 3D-Fv with Connectors
Brand: all-electronics-online.com
SKU: 791302735
Availability: InStock
Rating: 4.7 (29 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3D-FV
Ottocable:	3D-Fv RF Coaxial Cable
Inner Conductor:	1.16 CCA
Insulation:	3.20 Foam PE
First Shield:	3.30 Bonded Aluminum Foil
Second Shield:	3.80 TCCA/Al-Mg Wire Braid
Jacket:	5.20 PVC/PE
Jacket Color:	as Per Request
Impedance:	50ohms
Origin Of Place:	Zhejiang, China
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tc Wire Braid/Al/TCCA
Cover Material:	PVC/PE/LSZH
Type:	Coaxial
Wire Core Material:	Bare Copper/CCS
Model:	3D-Fv
Brand:	Ottocable

Product Description

3D-FV

Overview
This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness.As a substitute for RG58 coaxial cable,it has been widely applied to radio transmission,base radio antenna station and other communication systems.

Features
·         50 Ohm data signal transmission;
·         The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
·         Excellent performance in high frequency,VSWR stability;
·         Customized cable color , winding and connector, meet your different requirements;
·         RoHS compliant;

Assemblies & Application

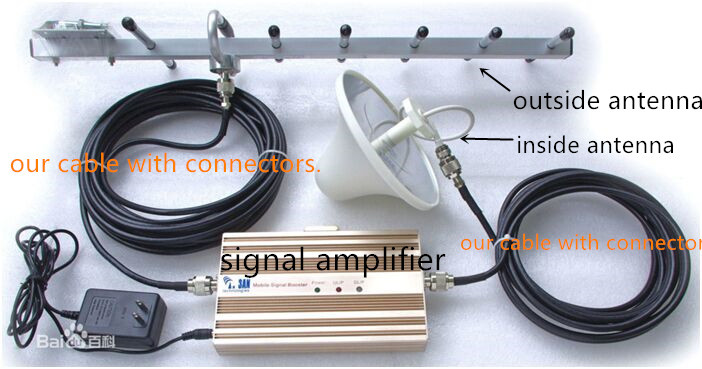

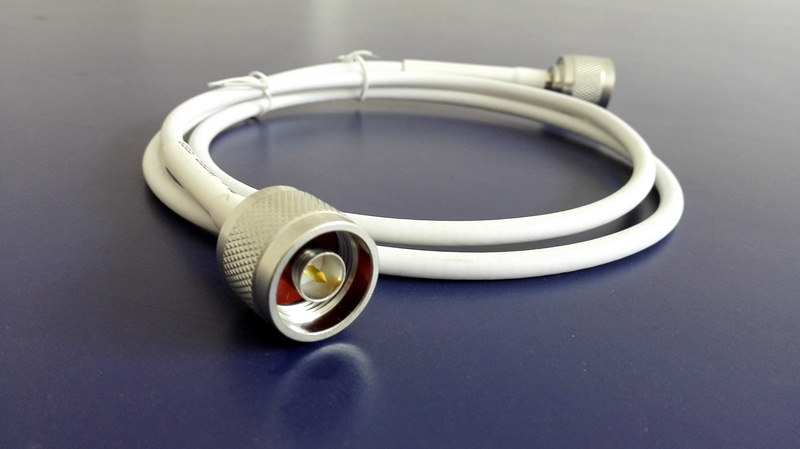

These 50 Ohm 3D-FV coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

Communications RF Coax Cable

3D-FV

Construction

Item

Material

Diameter(mm)

Remarks

In-Conductor

Insulation

First Shield

Second Shield

Jacket

Copper Clad Aluminum

Foam PE

Bonded Aluminum Foil

TCCA/AL-Mg Wire Braid

PVC/PE

1.16

3.20

3.30

3.80

5.20

96*0.12TCCA /AL-Mg wires braiding;

Jacket material is PVC;

Electrical Characteristics

Impedance (Ω)

Capacitance (pF/m)

Velocity of Propagation (%)

Dielectric strength(kV)

V.S.W.R

Return Loss

Screening Effectiveness(db)

Min. Bending Radius (mm)

Operating Temperature(⁰C)

50±3

78±2

81.0

1.6

≤1.22 (50----3000MHz)

≥20 (50----3000MHz)

≥75

50.0

-15 to +70

Attenuation (@20⁰C)

Frequency(MHz)

Max Attenuation(dB/100m)

1500

1800

1900

2000

2200

2500

35.5

39.3

40.5

41.5

44.0

47.0

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
