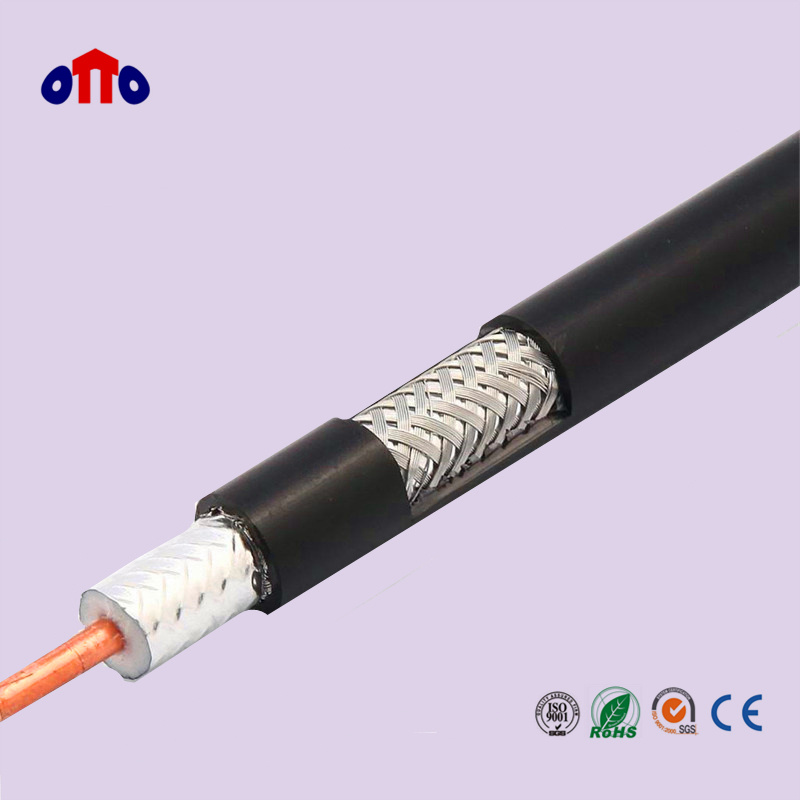

Good Performance 50ohms Coaxial Cable (8D-CCA-TCCA)

Name: Good Performance 50ohms Coaxial Cable (8D-CCA-TCCA)
Brand: all-electronics-online.com
SKU: 766122875
Availability: InStock
Rating: 4.7 (58 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	8D-CCA-TCCA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	8d-CCA-TCCA RF Coaxial Cable
Inner Conductor:	2.80 CCA
Dielectric:	7.80 Foam PE
First Shield:	8.00 Bonded Aluminum Foil
Second Shield:	8.70 TCCA Wire Braid
Jacket:	10.60 PVC/PE/LSZH
Jacket Color:	as Per Request
Impedance:	50ohms
Origin Of Place:	Zhejiang,China
Application:	RF Cable
Certification:	RoHS
Conductor Material:	TCCA Wire Braid
Cover Material:	PVC/PE/LSZH
Type:	Coaxial
Wire Core Material:	CCA
Model:	8d-CCA-TCCA
Brand:	Ottocable

Product Description

8D-CCA-TCCA

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	CCA Foam PE Bonded Aluminum Foil TCCA Wire Braid PVC/PE/LSZH	2.80 7.80 8.00 8.70 10.60	Per customer's requirements: The second shield could be 128,144 or 168 TCCA wires braiding;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)

50±3
82±2
82.0
1.6
≤1.3
≥20
≥80
55.0
-25 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
1200 1500 1800 1900 2000 2200 2500	17.4 19.8 22.1 23.5 25.4 25.9 27.6

More Ideas
1)  If require conventional construction and materials, please click 8D-FB;
2)  If require lightweight and weldable shield,please click 8D-CCA-TCCA or 8D-CCA-TC;
3)  If require lightweight and lower price,please click 8D-CCA-AL or 8D-CCA-TCCA;
4)  For more 8D-FB assemblies,please click 8D ASSEMBLIES;
5)  Any other requirements or queries, please click CONTACT US.

Company Link:     http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

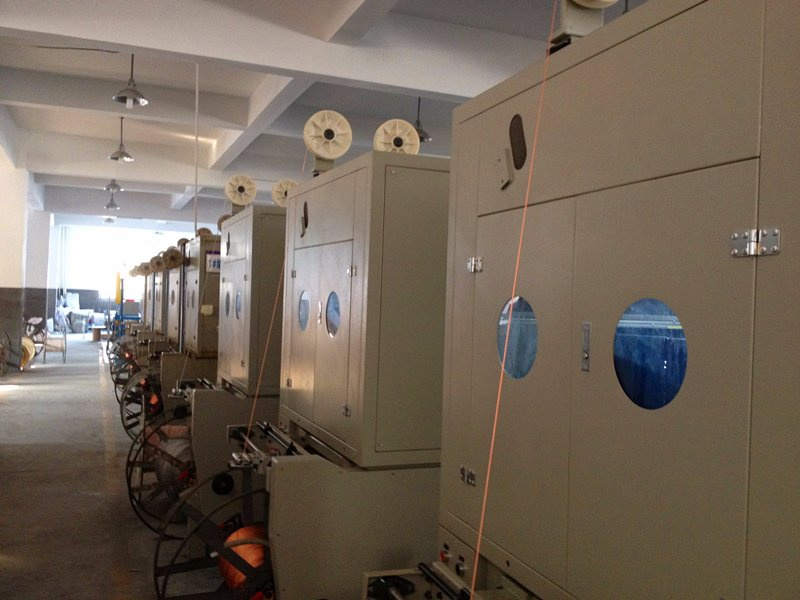

Company Information

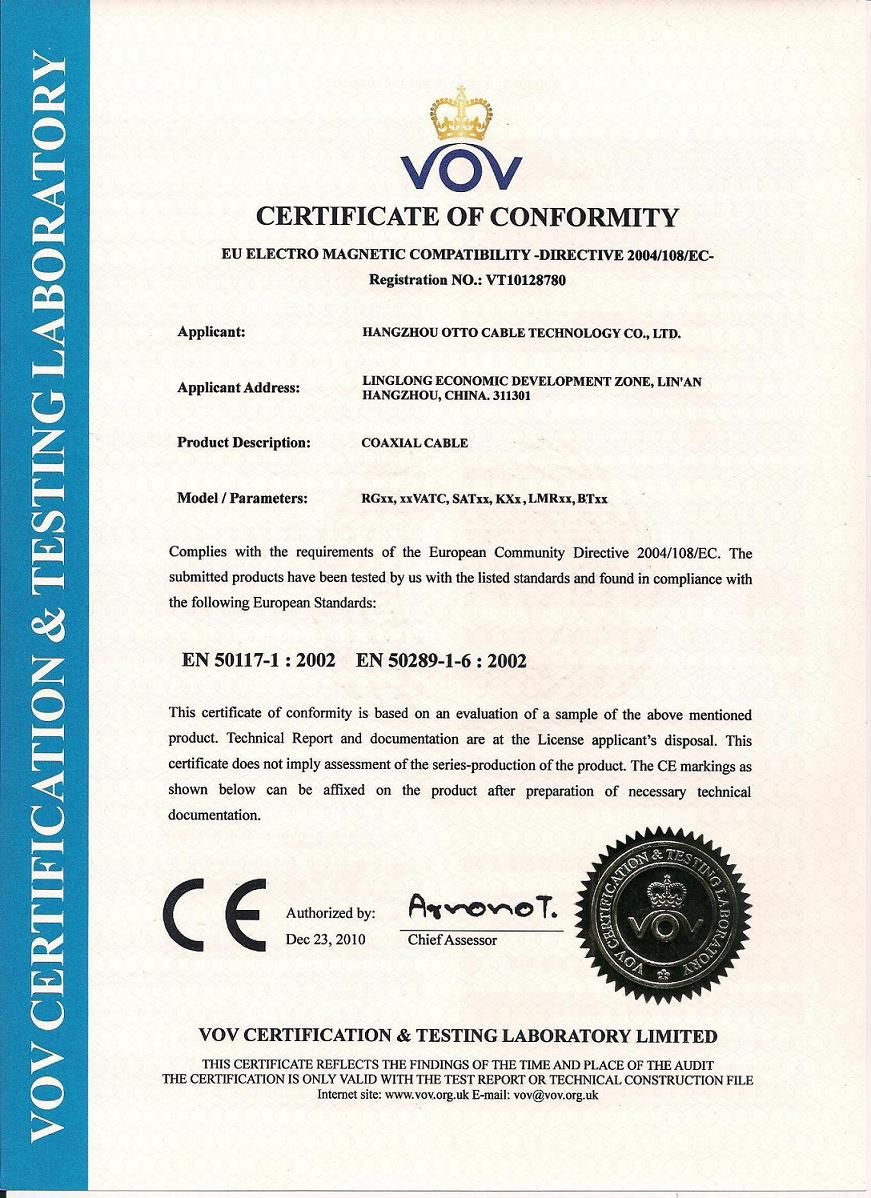

Certifications

Contact us

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
