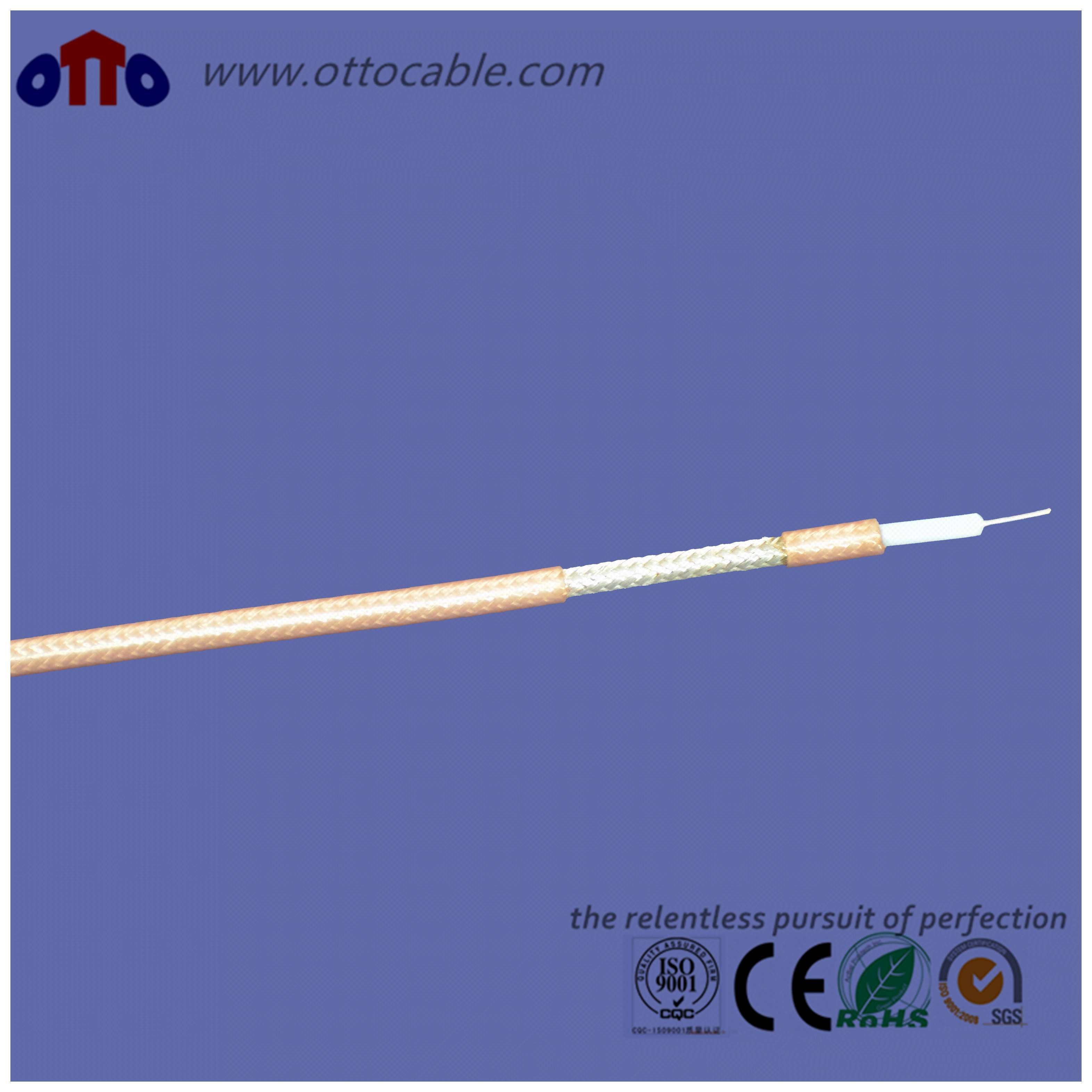

Good Performance 50ohms Coaxial Cable (RG179)

Name: Good Performance 50ohms Coaxial Cable (RG179)
Brand: all-electronics-online.com
SKU: 766124095
Availability: InStock
Rating: 4.6 (85 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG179
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg179 Coaxial Cable
Inner Conductor:	7/0.10 Silver Plated Copper Clad Steel
Dielectric:	1.60 FEP/PTFE
Shield:	2.06 95% Silver Plated Copper Braid
Jacket:	2.54 FEP
Application:	RF Cable
Certification:	RoHS
Conductor Material:	95% Silver Plated Copper Braid
Cover Material:	FEP
Type:	Coaxial
Wire Core Material:	Silver Plated Copper Clad Steel
Model:	Rg179
Brand:	Ottocable

Product Description

RG179

Overview
This 75 Ohm RG179 coaxial cable has small outer diameter and can be fixed kinds of connectors. It can work for a long time in a 200 degree temperature environment.Its versatile cable assemblies with various lengths have been widely used for tight fit applications.

Features
·         75 Ohm data signal transmission;
·         The inner conductor could be stranded or solid;
·         Special insulation materials,providing good electrical property and welding performance;
·         Small diameter is ideal for tight fit applications;
·         Customized cable color , winding and connector, meet your different requirements;
·         RoHS compliant;
Assemblies & Application
This 75 Ohm RG179 coaxial cable can be equipped with varied connectors,such as N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM and other communication systems.

RG MIL-C-17 Coax Cable

RG179

Construction

	Material	Diameter(mm)
Inner Conductor Dielectric Shield Jacket	Silver Plated Copper Clad Steel PTFE/FEP 95% Silver Plated Copper Braid FEP	7/0.10 1.60 2.06 2.54

Electrical Characteristics

Capacitance (pF/m)
Impedance (Ω)
Velocity of Propagation (%)
Conductor DCR (Ohm/km)
Outer Shield DCR (Ohm/km)
Max Operating Frequency (MHz)
Max Operating Voltage(VRMS)
Operating Temperature(0C)

64.0
75.0
70.0
800.5
27.9
3000.0
1200.0
-55 to +200

Attenuation [@68oF (20oC)]

Frequency(MHz)	Max Attenuation (dB/100m)
100 200 400 700 900 1000	32.8 41.0 52.5 64.6 73.2 78.7

More Ideas
1)  If require conventional construction and materials, please click RG179;
2)  If require lightweight and lower price,you can choose RG179-FEP or 1.5C-XLPE;
3)  For more RG179 assemblies,you can choose RG179 ASSEMBLIES;
4)  Any other requirements or queries, please click CONTACT US.

Company Link:     http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
