Good Performance Coaxial Cable 7D-Fb with Connectors

Name: Good Performance Coaxial Cable 7D-Fb with Connectors
Brand: all-electronics-online.com
SKU: 766120005
Availability: InStock
Rating: 4.8 (25 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	7D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	7D-Fb
Inner Conductor:	2.60bc/CCA
Dielectric:	7.30foam PE
First Shield:	7.40bonded Aluminum Foil
Second Shield:	8.00tc Wire Braid/Al/TCCA
Jacket:	9.80PVC/PE/Lszh
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tc Wire Braid/Al/TCCA
Cover Material:	PVC/PE/Lszh
Type:	Coaxial
Wire Core Material:	CCA/Bc
Model:	7D-Fb
Brand:	Ottocable

Product Description

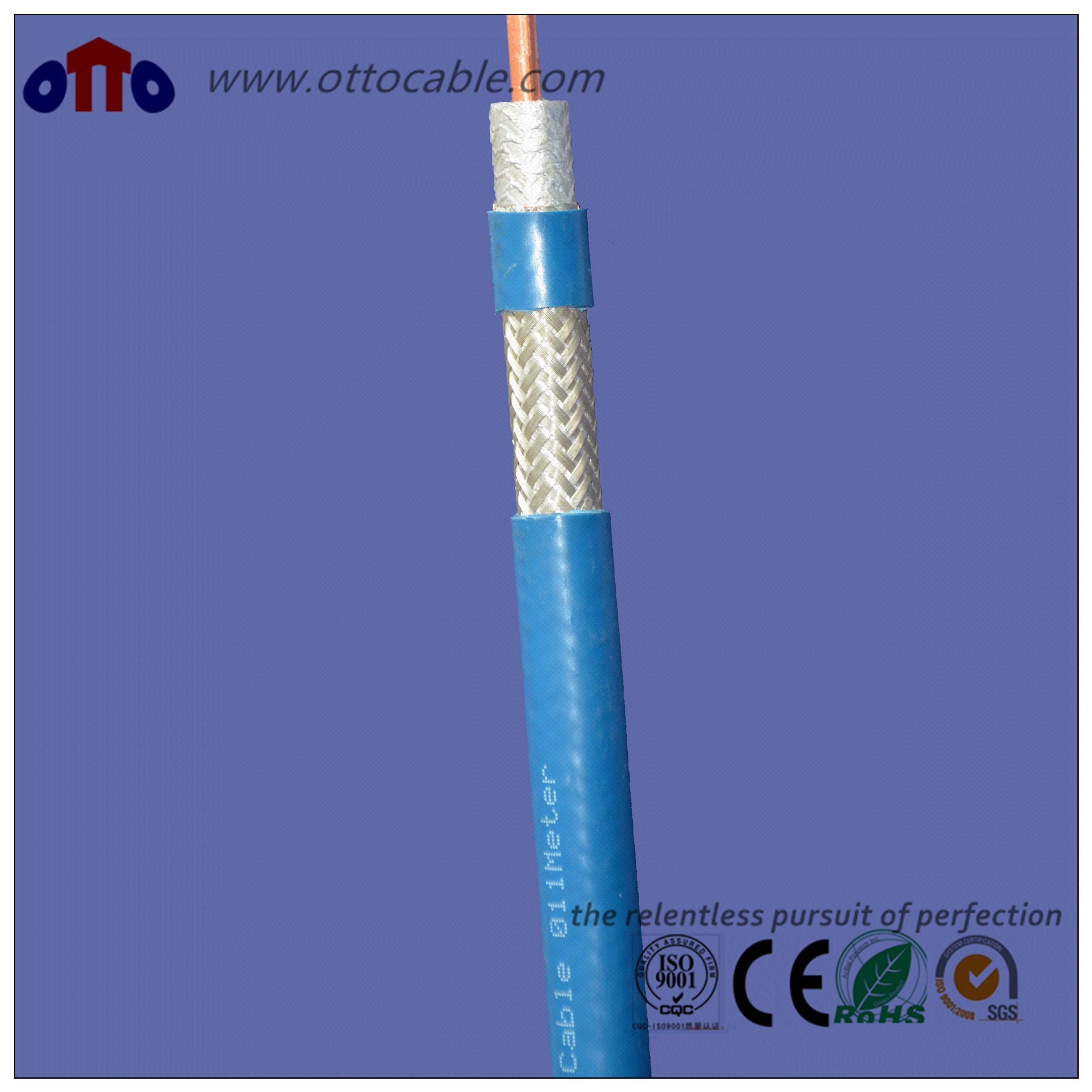

7D-FB

Construction

Item

Material

Diameter(mm)

Remarks

In Conductor

Dielectric

First Shield

Second Shield

Jacket

Bare Copper

Foam PE

Bonded Aluminum Foil

TC Wire Braid

PVC/PE/LSZH

2.60

7.30

7.40

8.00

9.80

Per customer's requirements:

The second shield could be 112,128 or 144 TC wires braiding;

Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)

Capacitance (pF/m)

Velocity of Propagation (%)

Dielectric strength(kV)

V.S.W.R

Return Loss

Screening Effectiveness(db)

Min. Bending Radius (mm)

Operating Temperature(⁰C)

50±3

82±2

82.0

1.6

≤1.3

≥20

≥90

45.0

-25 to +70

Attenuation (@20⁰C)

Frequency(MHz)

Max Attenuation(dB/100m)

1200

1500

1800

1900

2000

2200

2500

3000

16.8

19.2

21.4

22.2

23.2

23.9

25.6

29.5

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

Company Information

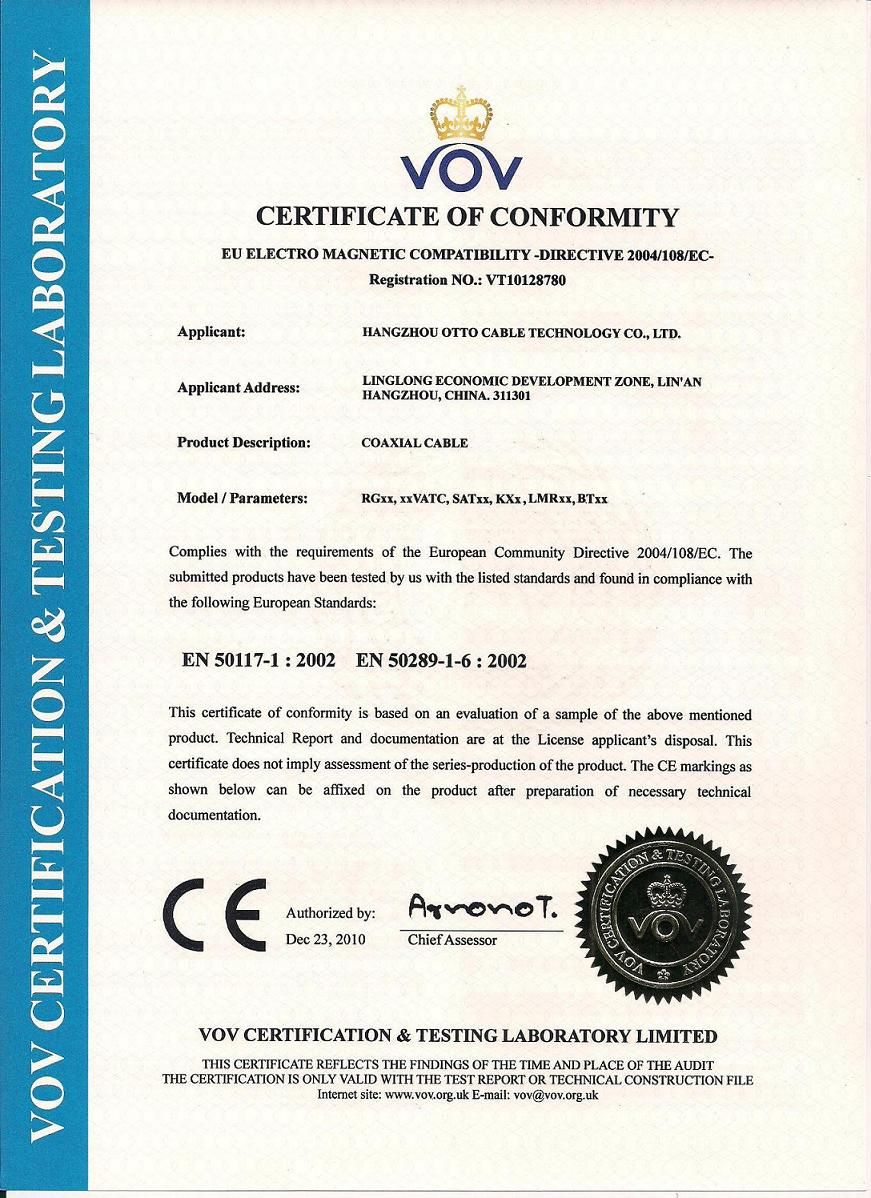

Certifications

Contact us

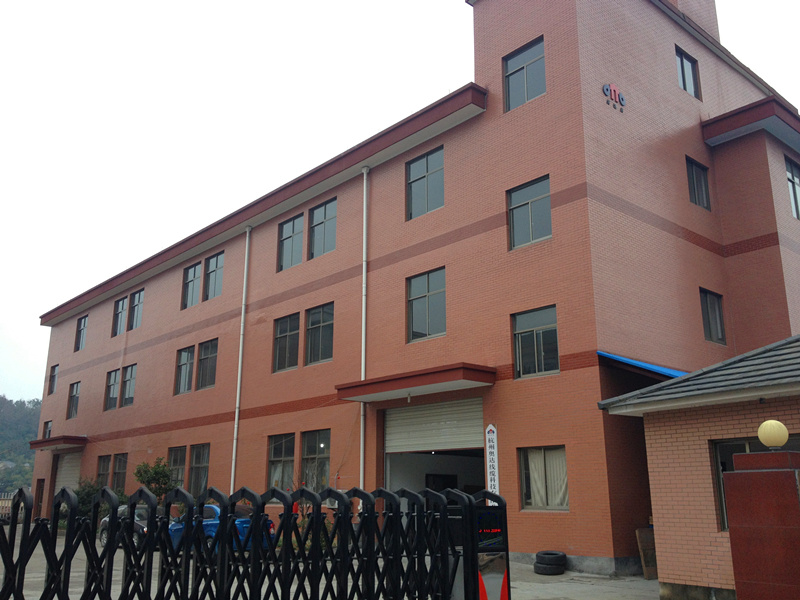

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
