| Prod Model: |

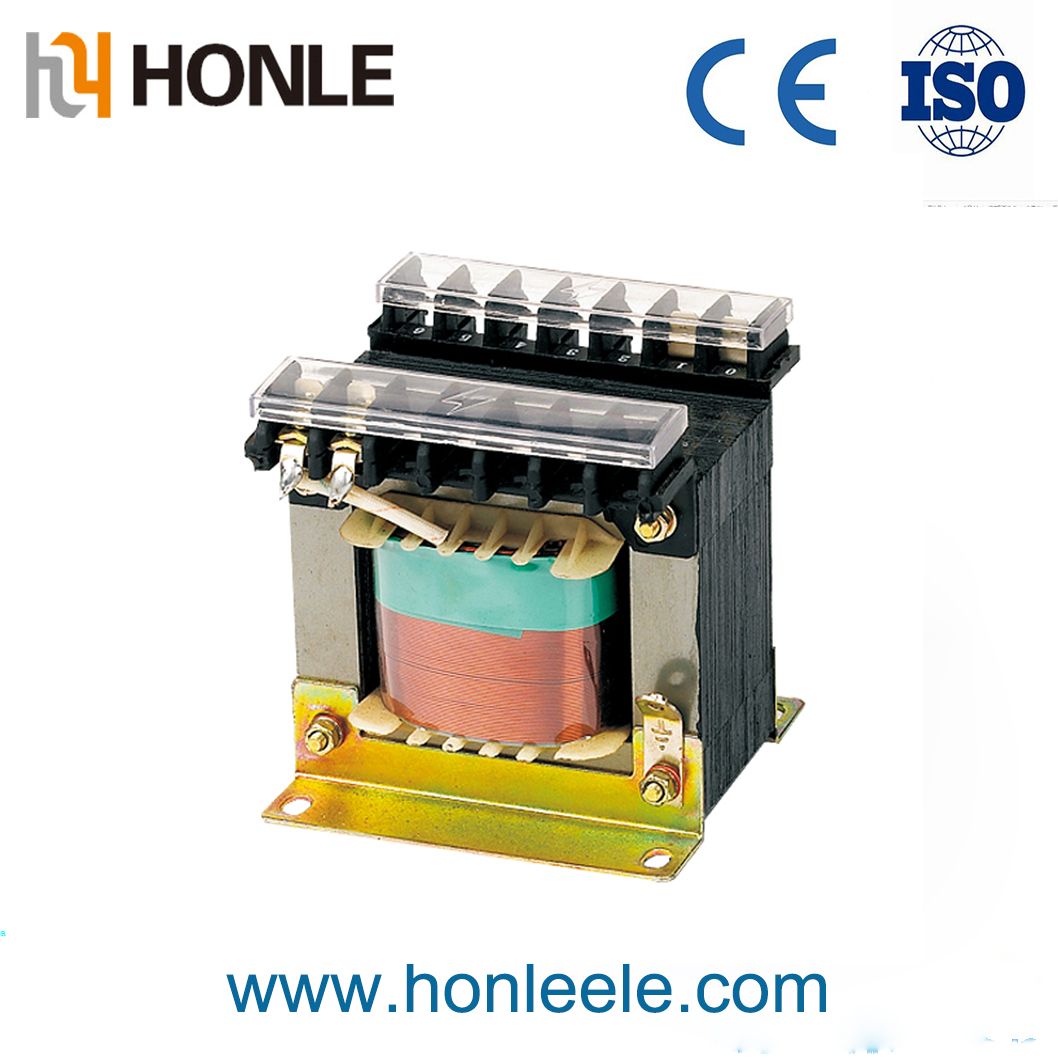

JBK3 |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Honle |
Product Description
Application
It is suitable for AC circuit of 50 ~ 60Hz, output rated voltage less than 220V , input rated voltage less than 500V,worked as control power supply for mechanical equipment and general electrical appliance and as power supply for work lighting and signal lamp
Model and dimensions
Model
(VA) | Rated input
voltage
(V) | Rated output
voltage
(V) | Dimension
L×W×H(mm) | Installation Size
L×W(mm) |
| 40 | 220±5%
380±5% | 6
24
110
127
220 | 80×75×88 | 55×50 |
| 63 | 80×75×88 | 55×50 |
| 100 | 90×82×92 | 65×64 |
| 160 | 95×95×106 | 83×71 |
| 250 | 106×97×106 | 85×82 |
| 400 | 120×114×125 | 95×85 |
| 630 | 150×106×145 | 112×86 |
| 1000 | 205×155×155 | 155×125 |
| 1630 | 220×180×150 | 185×157 |
