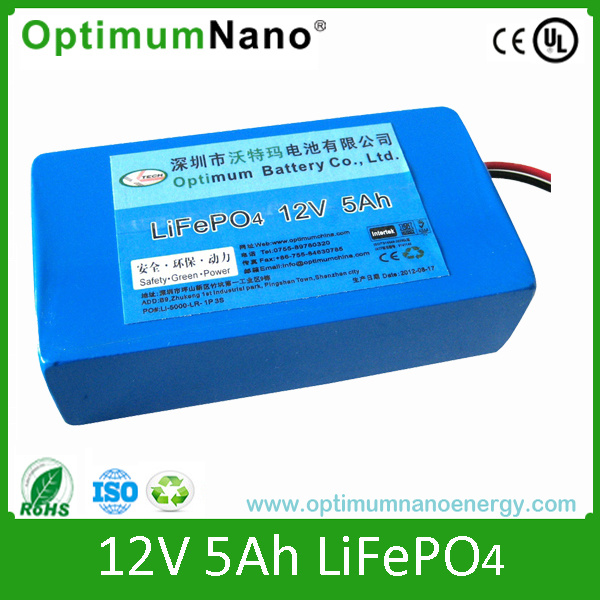

Good Quality 12V 5ah Lithium Battery Pack for Mining Light

Name: Good Quality 12V 5ah Lithium Battery Pack for Mining Light
Brand: all-electronics-online.com
SKU: 766765815
Availability: InStock
Rating: 4.4 (21 reviews)

Price:	US $ 9-19/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	opt-12-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Good Quality 12V 5ah Lithium Battery Pack for Mini
Cell:	32650
Usage Capacity:	5ah
Rated Voltage:	12V
Certificate:	CE,UL,SGS/RoHS,Rbrc,ISO9001:2000,ISO1400,Ts16949:2
Components:	Lithium Iron Phosphate
Composed Type:	in Parallels and Series
Warranty:	2 Years
Package:	PVC Film
Color:	Blue/Black .
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	5ah
Standard Voltage:	12V
Usage:	Mining Light
Electrolyte:	LiFePO4

Product Description

good quality 12v 5ah lithium battery pack for mining light

Specification:

Electrical Charateristics

Nominal Voltage	12V
Nominal Capacity	5Ah
Impedance (Max. at1000Hz)	≤50mΩ
Expected Cycle Life	2000 times

Mechanical Characteristics

Height	Could be customized
Width	Could be customized
Length	Could be customized
Weight	~1.0Kg

Operation Conditions

Charge Method	Constant Current/Constant Voltage (CC-CV)
Max. Charge Voltage	14.6V
Standard Charge Current	2A
Charge Temperature	0ºC~45ºC
Max. Continuous Discharge Current	5A
Peak Instant Discharge Current	15A,
Peak Instant Discharge Time	5 seconds
Discharge Cut-off Voltage	10.0V
Discharge Temperature	-20ºC~65ºC
Storage Temperature	-20ºC~45ºC

Advantages:

l Attractive cycle life
l Extended safety performance
l Wide operating temperature range
l Unrivalled high temperature performance
l Green energy without metal contaminant
l High capacity
l Steady output voltage
l Little self-discharge
l Double safety protection
l Withstanding very high level of vibrations and shocks

Safety Characteristics

l Over-charge/Over-discharge Ability to withstand over-charge/withstand over-discharge, and there is no fire, no exploding and work well
l Short circuit Ability to withstand short circuit, and there is no fire, no exploding
l Acupuncture Ability to withstand nail puncturing, and there is no fire, no exploding
l Thermal shock Ability to withstand thermal shock, and there is no fire, no exploding

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
