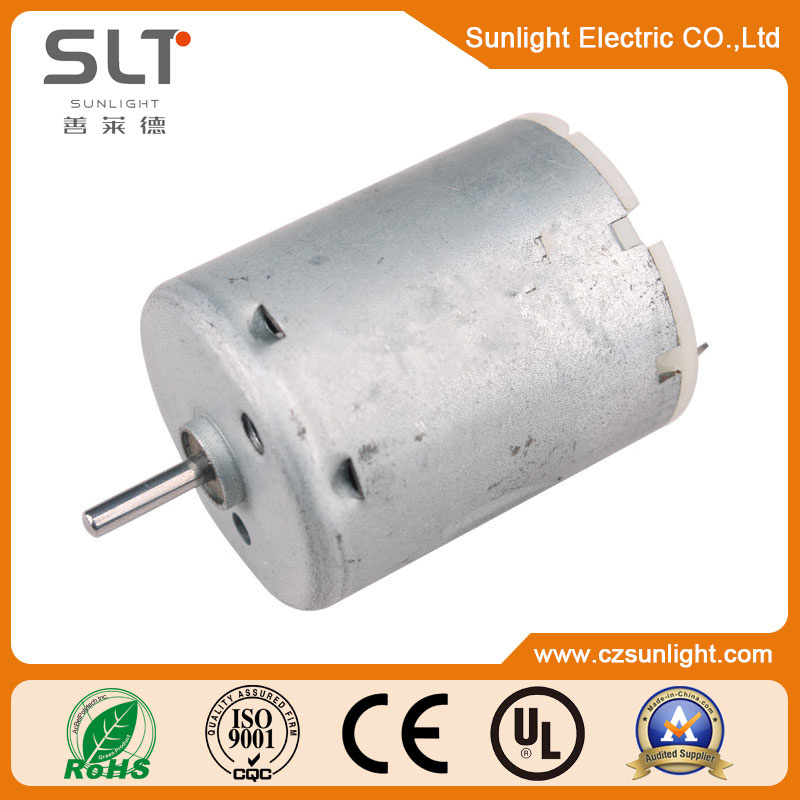

Good Quality 24V Micro DC Brushed Motor for Eletric Tools

Name: Good Quality 24V Micro DC Brushed Motor for Eletric Tools
Brand: all-electronics-online.com
SKU: 761795125
Availability: InStock
Rating: 4.7 (63 reviews)

Price:	US $ 1-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLT-370SA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	24V
No Load Speed:	4858rpm
No Load Current:	0.014A
Load Speed:	4119rpm
Load Current:	0.078A
Load Torque:	26g.Cm
Output:	1.26W
Stall Torque:	171.2g.Cm
Stall Current:	0.435A
Application:	Medical Equipment
Operating Speed:	Constant Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Certification:	CE
Brand:	Slt

Product Description

Voltage:24V
No Load Speed:4858rpm
No Load Current:0.014A
Load Speed:4119rpm
Load Current:0.078A
Load Torque:26G.Cm
Output:1.26W
Stall Torque:171.2G.Cm
Stall Current:0.435A

Model			SLT-370SA-09700
Voltage	Operating Range (V)		18.0-27.0
Voltage	Nominal (V)		24.00
NO Load	Speed	r/min	4858
NO Load	Current	A	0.014
At Max Efficiency	Speed	r/min	4119
	Current	A	0.078
	Torque	mN.m	2.55
	Torque	g.cm	26
	Output	W	1.26
Stall	Torque	mN.m	16.78
	Torque	g.cm	171.2
	Current	A	0.435

Advantages of Good Quality 24V Micro DC Brushed Motor for eletric tools

a:Save cost, price is low
b:Better reliability.
c:Low energy consumption.
d:Speed is steady.
e:Easy to run and adjust the speed.
f: Small size, easy to carry.
g:Application range is super wide.

Applications of Good Quality 24V Micro DC Brushed Motor for eletric tools

A.Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Applicance ( Electric cooker, Electric mop and other products.)
C.Medical equipments and beauty products.
D.Office products (such as printer, scanner......)
E.Other Fields.

Why choose us ?

A. Quality in sure.
B. Price is competitive.
C. Service is excellent.
D. Delivery on time.
E. Promise is A Promise.

Equipments

Company & Certifications
a.Modern office building, we warmly welcome your visiting.
b.We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm
c.ISO, CE, GS, Rohs certificates. We have been making good progress.

Shipment and Package

a.Strong packaging to ensure safty during transportation.
b.This supplier supports Trade Assurance.
c.Our products are transported to many countries

Follow the Trade Assurance process and get:
1.On-time shipment and pre-shipment product quality safeguards
2.Refund up to the covered amount agreed with your supplier
3.Supplier's Trade Assurance Limit:

Personal Information

if you need more information
please contact with us
our contact information:
Changzhou sunlight Co., Ltd
Contact Person: Mary Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-13915006892
Website: www.czsunlight.com or www.sunlightmotor.com

Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.

There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.

The main products are DC motor, brushless DC motor, linear actuator and DC fan.

At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.

Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.

We welcome all the global companies to visit our factory and negotiate with us!

Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"

We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.

Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on

The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;

The main linear actuator's series are: ST01, PT01, YT01 and so on;

The main fan's series are: 16inch, 12inch, and so on

So that, If you give us a chance, Sunlight Motor will not let you disappoint.
