Good Quality 48V Pm Micro DC Motor for Hydraulic Power Pack

Name: Good Quality 48V Pm Micro DC Motor for Hydraulic Power Pack
Brand: all-electronics-online.com
SKU: 828720915
Availability: InStock
Rating: 5 (132 reviews)

Price:	US $ 35-40/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZD4808
Volt:	48V
Power:	0.8kw
Current:	32A
Speed:	3650r/Min
Protect Feature:	IP44
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Type:	Zd1218
Brand:	Sanghao

Product Description

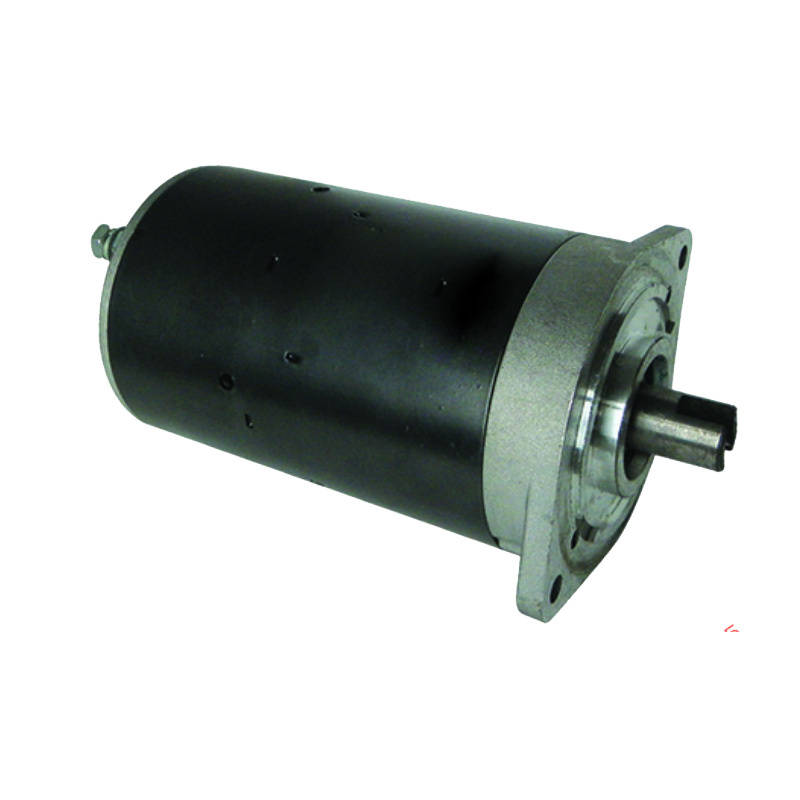

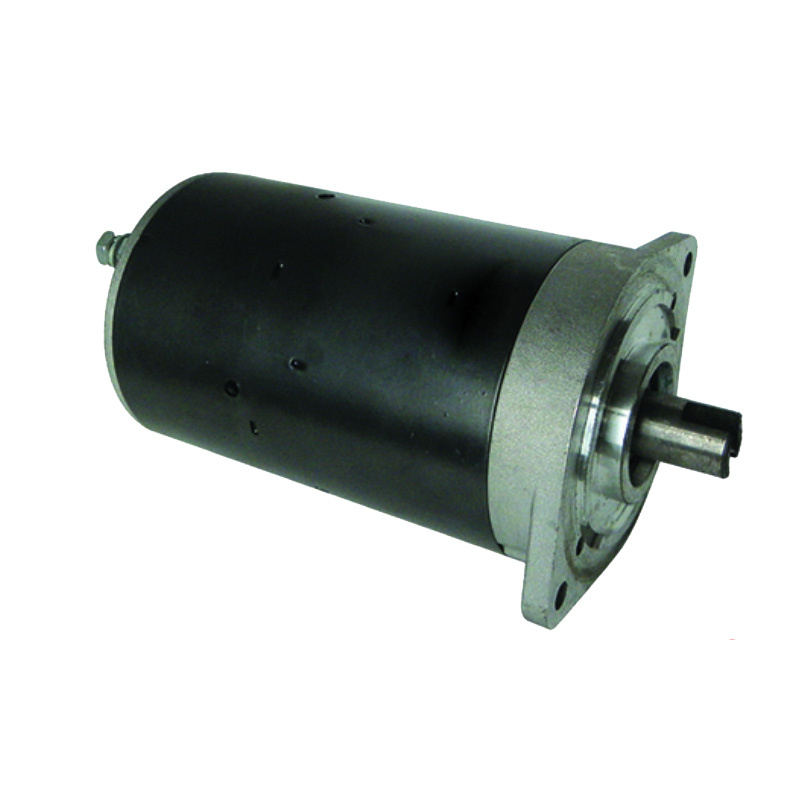

Good Quality 48V PM Micro DC Motor for Hydraulic Power Pack
1. Product Description

Type	Volt	Power	Current	Speed	Protect Feature	Rotation	Weight
ZD4808	48V	0.8kw	32A	3650r/min	IP44	CW,CCW	3kg

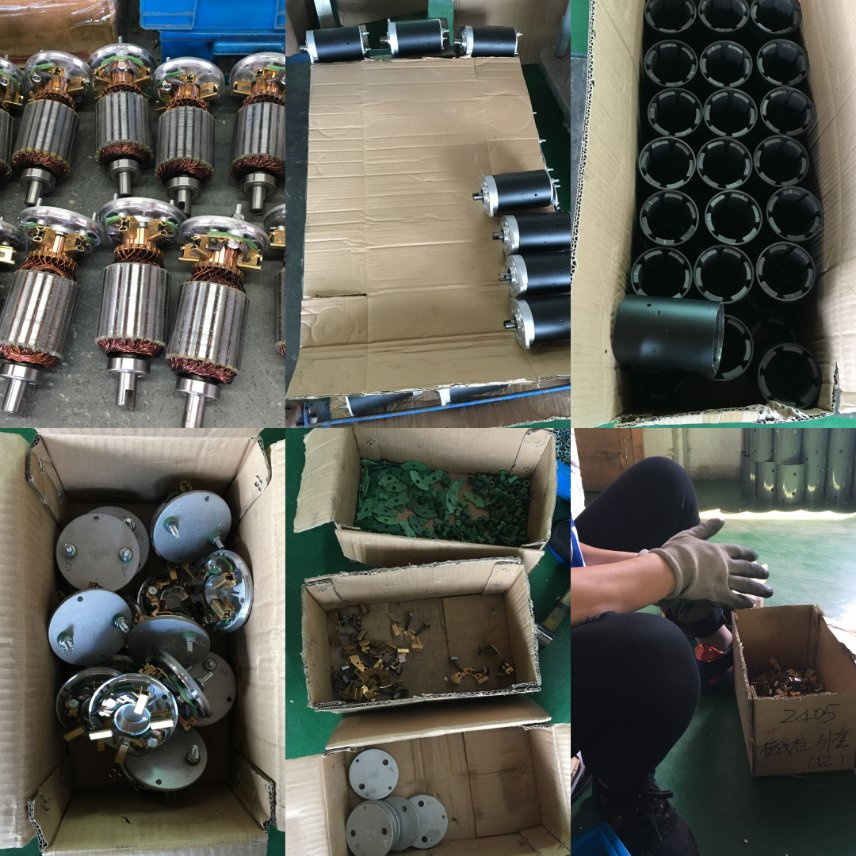

2. Detail Inside Motor Parts
The brushes of the motors are all made by our woker with hand so every brush quality can be controlled and guaranteed.

3. Package
Each motor will be put into a plastic bag then 4 motors into one carton. Moreover, our worker will use carton pcs to separate two motors in order to
avoide the friction.

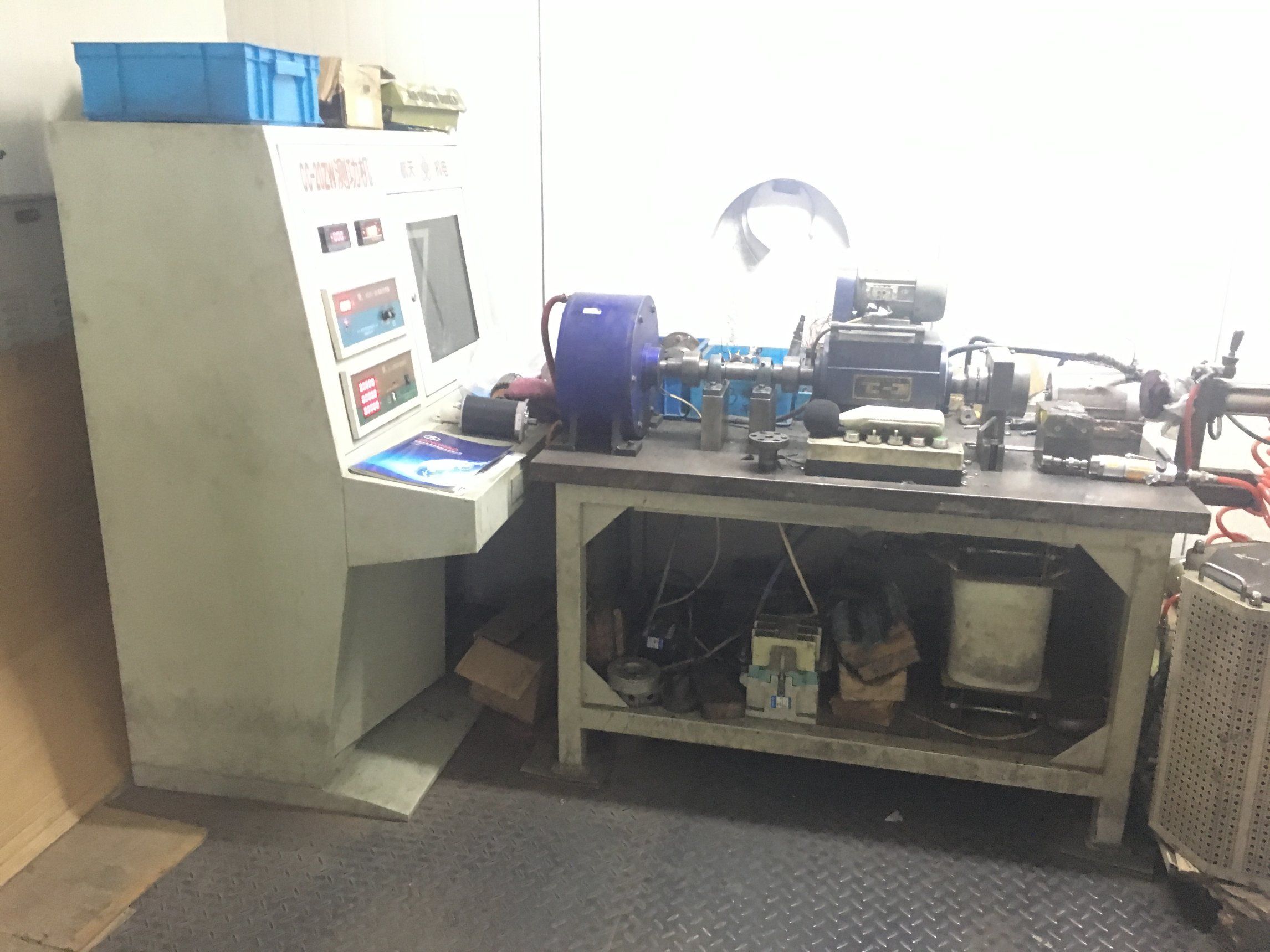

4. Motor Test Room
We have a test room in our assembly department and when our workers finsh assembling, all the motor will be go into the room and tested by our worker one by one to make sure the current and speed can up the standard.

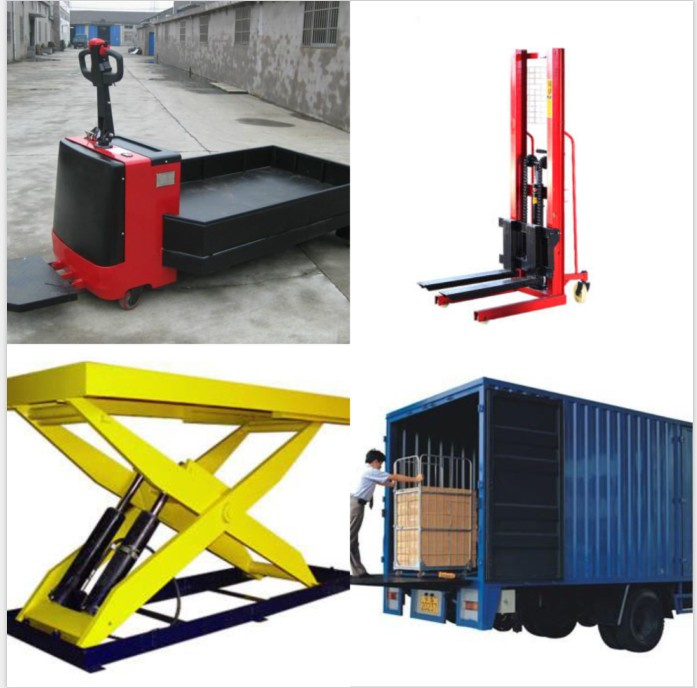

5. Application
Our company has more than 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc.

6. FAQ
A. Are you a manufacture or trading company?
We are a manufacture which has our own company and located in Changzhou, Jiangsu.
B. Do you provide the sample?
Absolutely yes! We are glad to provide the sample.
C. Do you accept customized?
Yes, we have engineers can help you do the customized motor and had better have the sample.
D. How long you can get the products?
If our exist products, we will arrange package and send them out immediately.
If need to do it, it should depend on your qty, around 20days will send them out.

If you are interested to our products and want to know more information, pls donot hesitate to contact us. We are honored to povide the good service to you!

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
