Good Quality 50ohm Rg58 Cable

Prod Model:	RG58
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable

Product Description

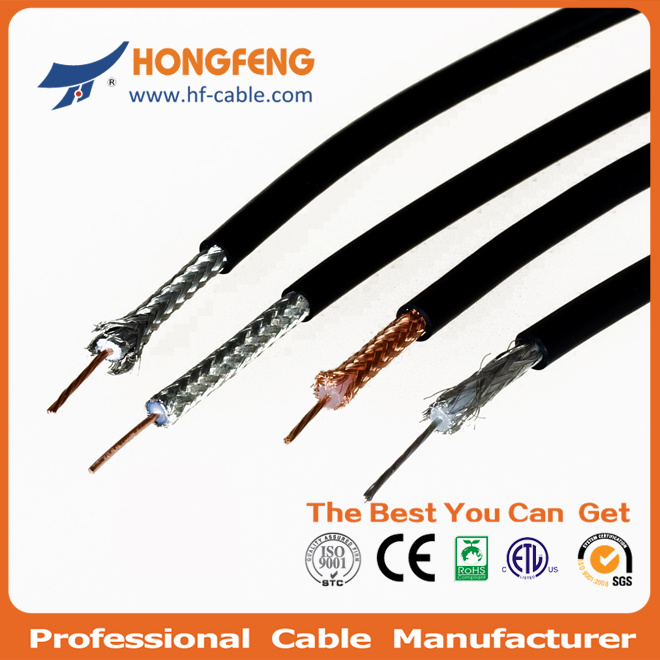

Coaxial Cable RG58
1) Specification:
Inner Conductor (mm): 19/0.18
Insulation (mm): 2.95± 0.20
Outer Conductor (mm): 3.45
Jacket (mm): 4.95± 0.03
2) We can produce according to customer requirements!

Note:
1) Center Conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15mm available;
5) Braiding Coverage: Between 30- 95% available
6) Jacket Color: White, black, etc.

Packaging:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's requirement;
2) Inner Packing: Wooden reel, Plastic reel, and Paper reel available;
3) Outer Packing: Carton Box, Pull out Box, Pallet available;
4) Other packing available according to client's requirement.

Product Origin: China
Brand Name: RuiFeng or OEM
Productivity: 300, 000Km/Year
Price Terms: FOB, CIF, CFR
Payment Terms: L/C, T/T, Western Union
Shipping Date: Generally within 15days

#Coaxial Cables:
1) RG Series Coaxial Cable: RG58, RG59, RG6, RG7, RG11, etc;
2) Network Cables: LAN Cable CAT3, LAN Cable CAT5;
3) Combined Cable: Siamese Cables: RG59+2C, RG6+2C, etc.

#Applications:
1) CATV-community antenna television;
2) CCTV-closed-circuit television;
3) DBS-direct broadcasting satellite.
