| Prod Model: |
HCDPY424030 |
| Certificate: |
UL, CCC, S, CSA,Ce, |
| Frequency: |
50/60Hz |
| Application: |
Refrigeration, Air Conditioning and Heating |
| Material: |
High Arc-Resistant Phenolic Resin |
| Coil Insulation: |
Class F |
Product Description
Product Details:

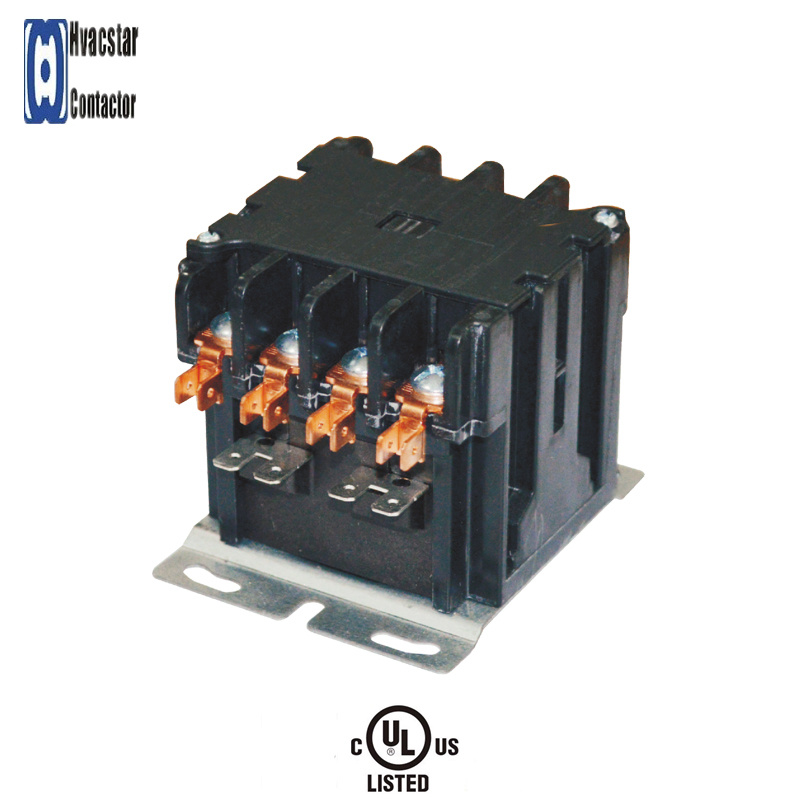

With life cycles exceeding 250,000 electrical and 1,000,000 mechanical, the HCDP series of definite purpose contactors and auxiliary switches are built to offer you maximum dependability.It's an ideal one-for-one replacement for the Furnas DP contactor, and no matter which way it's mounted, its performance remains strong.It also meets the ARI 780/790 standard .HECHENG® High arc-resistant phenolic resin material hold stationary terminals,positions actuator, and magnet/coil assembly.It has much stronger endurance and insulating ability than normal contactors .
The internal construction of the HCDP series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.
Item Specifications:
| F/L Inductive Amps | 30 |
| Poles | 4 |
| Coil Voltage | 240 |
| Resistive Amps | 25 |
| Hertz | 50/60 |
| Locked Rotor Amps 240/480/600 | 120/100/80 |
Advantage:
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .
Options:
1, 2, 3 and 4 Pole Configurations 24, 120, 240 and 480 VAC Coils Wide range of electrical ratings Screw, Box or Pressure Plate Connections NEMA mounting base.NO/NC End Switch Kits |
Technical Specifications:
Electrical Contact Ratings:20 to 90 AMPS Electrical Coil Ratings:24 to 600 VAC Life Rating:100,000 & 250,000 Cycle Options |
APPLICATIONS:
Designed ideally for the HVACR industry, the most common applications of our contactors
Are found in Refrigeration, Air Conditioning and Heating.
Other applications include:
• Food service equipment
• Vending machines
• Compressors
• Pumps
• Cranes
• Hoists
• Welding machines
• Power supplies
• Lighting
Features
Meets The ARI 780/790 Standard
Universal metal mounting plate allows for complete ease of replacement
Long electrical life;Tested to 250,000 cycles
Reliable mechanical life;Tested to 1,000,000 cycles
EE magnet assembly assures optimal performance without sacrificing power consumption
Superior copper coil
Performance unaffected by mounting position
Flexible termination options suitable for various applications
Dust-free internal constructions
Main Production Data
• Silver Cadmium Oxide Contacts
• Ranges:20 - 90 FLA
• Poles:1pole, 1.5pole , 2pole , 3pole, 4pole
• Coil Voltages:24, 110/120, 208/ 240, 277 VAC
• Terminations:#10-32 screw - 20, 25 & 30 FLA Models,
Box Lug - 40, 50, 60, 75 & 90 FLA Models
• Temperature Range:- 40°F to + 150° F / - 40°C to + 65° C
• UL Listed, CSA, S MARK , CCC Approved
Service:
At each of our customer touchpoints, we take service very seriously.It begins with the relationships built and fostered by our sales professionals all the way to our responsive and courteous customer service team.We strive to make it easy for you to work with us - whether it's by phone, fax, online or in-person.
Satisfaction:
We are committed to achieving the highest levels of customer satisfaction.Our customers are not just names and numbers.For us, they are faces and relationships.We believes that all customers deserve prompt and courteous service, a phone call answered by a person, and product support after the sale.Our superior customer-service focus and relationship-based execution has been recognized repeatedly by our customers.
FAQ
Q1:Can I get a sample for testing?
A:Yes, we could offer free sample, but shipping cost should be paid at customers' side .
Q2:Can I print my logo on the products?
A:Yes, OEM and ODM are available.
Q3:How can I get the after-service?
A:If quality problem happen we promise re-send the item .
Q4:Do you have inspection procedures for products?
A:Our products100% self-inspection and testing before packing.
Q6:How about delivery time of the order?
A:15-20 days after getting deposit.
Q7:How about payment terms?
A:30% deposit, the rest payment balance against B/L copy .
More informations, welcome to enquiry from us.
