| Prod Model: |
G7L-1P-TUBJ-CB |
| Color: |
Gray |
| Other Services: |
ODM OEM |
| Delivery Time: |
30 Days After Deposit |
| Application: |
Refrigeration, Air Conditioning and Heating |
| Life Time(Mechanical): |
1 Million Times |

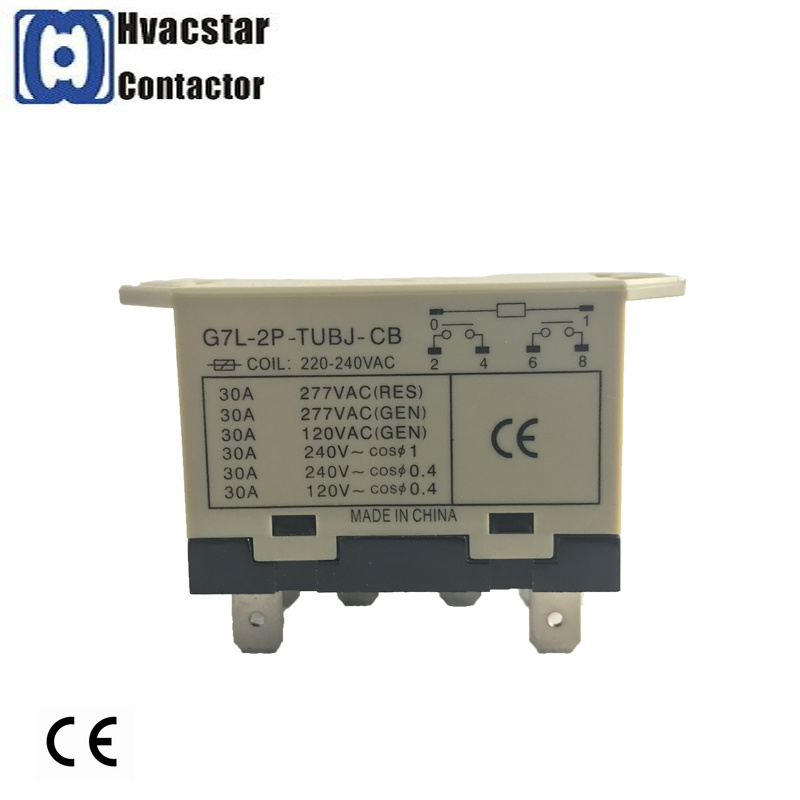

Product Description
Good Quality Air-Con Relay 1p 2p AC Electrical Relay with UL About usMingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Relay , Founded in Mingguang City,China, in 2005, stepped into the HVAC industry as a reliable source .
Our strongest domestic suppliers and our vast experience with global trading, allows us to bring the most innovative and highest quality products available to our customers.Products Details
FEATURES:1) A High-capacity, High-dielectric-strength relay,
Compatible with Momentary Vlotage Drops
2) Wide-range AC-activated coil that handles 100
to 120 or 200 to 240VAC at either 50 or 60Hz.
3) 250# quick connect termination
4) Miniatre size for maximum switching power,
particularly for inductive loads
Upper Bracket Mounting(with test button) Quick-connect Terminal | Number of poles | Model | Rated coil voltage | Minimum
packing unit |
| 1 pole | G7L-1A-TUBJ | AC: 12, 24, 100/120, 200/240 | 10 pcs./Box |
| DC: 6, 12, 24, 48, 100 |
| 2 poles | G7L-2A-TUBJ | AC: 12, 24, 50, 100/120, 200/240 |
| DC: 6, 12, 24, 48, 100 |
Product advantages1. No contact chattering for momentary voltage drops up to 50% of
rated voltage.
2. Wide-range AC-activated coil that handles 100 to 120 or 200 to
240 VAC at either 50 or 60 Hz.
3.Miniature size for maximum switching power, particularly for
inductive loads.
4. Flame-resistance materials (UL94V-0-qualifying) used for all
insulation material.
5.Quick-connect, screw, and PCB terminals, and DIN track
mounting available.
6. Conforms to UL, CSA, TUV and meets IEC950.
7. Safety design with contact gap of 3 mm.
Products Application1. Compressors for air conditioners and heater switching controllers.
2. Switching controllers for power tools or motors.
3. Power controllers for water heaters.
4. Power controllers for dryers.
5. Lamp controls, motor drivers, and power supply switching in copy machines, facsimile machines, and other office equipment.
6. Lighting controllers.
7. Power controllers for packers or food processing equipment.
8. Magnetron control in microwaves.
9. Power controllers for Uninterruptible Power Supply (UPS)
Main Production DataCHARACTERISTICS | Contact resistance | 50 mW max. |
| Operate time | 30 ms max. |
| Release time | 30 ms max. |
Max. operating
frequency | Mechanical | 1,800 operations/hour |
| Electrical | 1,800 operations/hour (under rated load) |
| Insulation resistance | 1,000 MW min. (at 500 VDC) |
Dielectric strength
| 4,000 VAC, min./5,000 VAC typical, 50/60 Hz for 1 minute between coil and contacts |
| 2,000 VAC, 50/60 Hz for 1 minute between contacts of same pole |
| 2,000 VAC, 50/60 Hz for 1 minute between contacts of different poles (DPST-NO type) |
| Impulse withstand voltage | Between coil and contact: 10,000 V (impulse wave used: 1.20 x 50 ms) |
Vibration
| Mechanical durability | 10 to 55 Hz; 1.50 mm (0.06 in) double amplitude |
| Malfunction durability | 10 to 55 Hz; 1.50 mm (0.06 in) double amplitude |
Shock
| Mechanical durability | 1,000 m/s2 (approx. 100 G) |
| Malfunction durability | 1,000 m/s2 (approx.10 G) |
Life expectancy
| Mechanical | 5,000,000 operations min. (at 1,800 operations/hour) |
| Electrical | 100,000 operations min. (at 1,800 operations/hour under rated load) |
| Ambient temperature | -20° to 85°C (-4° to 185°F) |
| Humidity | 35% to 85% RH |
Weight
| Quick-connect terminal type: approx. 90 g (3.17 oz) |
| PCB terminal type: approx. 100 g (3.52 oz) |
| Screw terminal type: approx. 120 g (4.23 oz) |

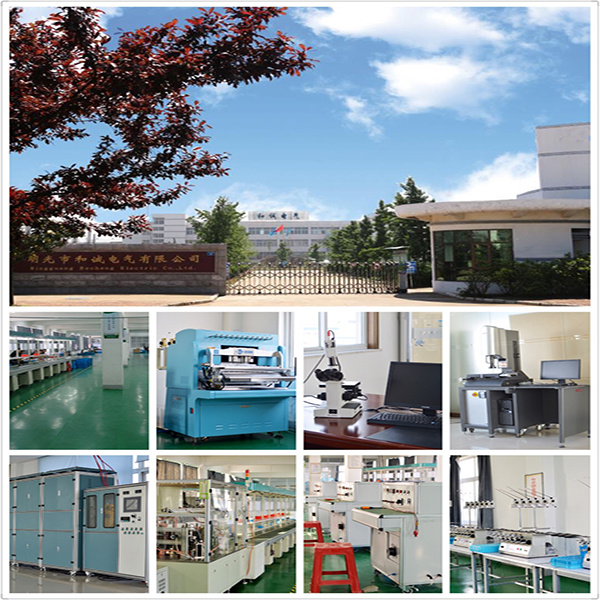

Our manufactory:

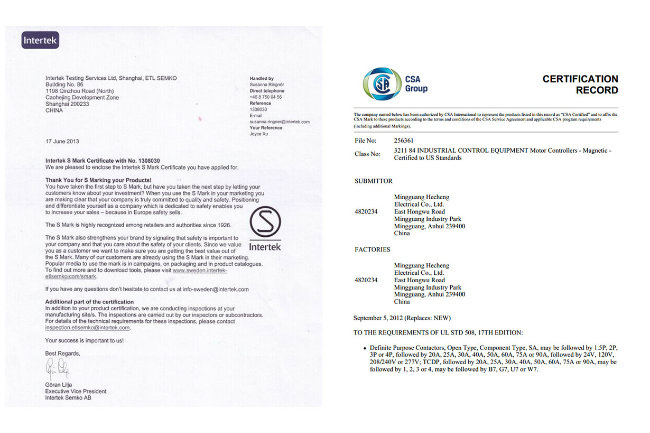

Certificates:
