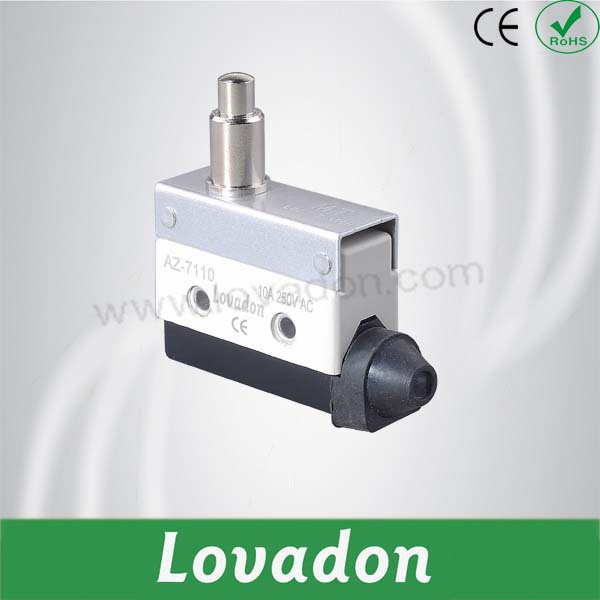

Good Quality Az 7110 Series Micro Switch

Prod Model:	AZ-7110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact Rating:	15A/250VAC.
Pressing Type:	Spring Roller
Size:	Small-Sized
Environment:	≧250℃﹤400℃
Breaking Capacity:	High-Current
Breaking Form:	Multi Joint Type
Protection:	Dust Proof ,Water Proof.
Application:	The Micro Switch
Brand:	Lovadon

Product Description

Switch Feature:

Long electrical and mechanical life.
Contact rating: 15A/250VAC.
TUV CCC CE
Features

1.Small size and light weight
2.It has life and more operating forces can be applied such as lightly force
3.Good feeling and more lever applied
4.It can drive the contact rapidly and directly in certain travel with certain action force in order to switch over the circuit

Welding conditions

1.Hand soldering
Use a soldering iron of 30 watts,controlled at 350ºC approximately 3 seconds while solder applying
2.Wave soldering
The peak temperature of the wave oven should be set to 260ºC max.Condition for soldering Temperature Profile

Applications

They can operate all types of compute,mouse mobile phones,cameras,VCR,stereo and car radio equipment,PDAs and Home Appliances


Adopt thermosetting plastic or thermoplastic;

Small contact gap, snap action, high sensitivity and small operating travel;

Variety of levers;

Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus

The micro switch model	TZ7110
The maximum OF (action required force)	600g
RF minimum (resilience)	100g
The maximum PT (required for the entire mobile force)	2.0mm
OT minimum (free position)	5.0mm
The maximum MD (action position)	0.8mm
PF (maximum distance difference)	_
OP (mm) (mobile action post of)	44±1.2mm

.Features:
  Various levers and terminals are available for choice.
  Various operating force are available.
  Snap action, compact design, suit for small space.
  Long operating life, high reliability, which could save the cost.
  Various  rating and temperature resistance degree are available.
  CCC,CE,UL,VDE approvals.

Characteristics and Using:

Adopt thermosetting plastic or thermoplastic;
Small contact gap,snap action,high sensitivity and small operating travel;
Variety of levers;
Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.
