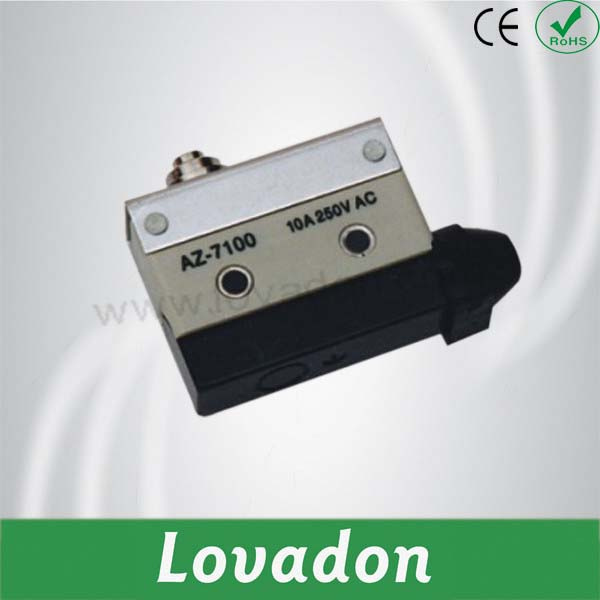

Good Quality Az Series Micro Switch Used in Power Tooling

Name: Good Quality Az Series Micro Switch Used in Power Tooling
Brand: all-electronics-online.com
SKU: 684153312
Availability: InStock
Rating: 4.6 (81 reviews)

Price:	US $ 0.8-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AZ-7100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	220V
Pressing Type:	Spring Roller
Protection:	Dust-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Single Type
Application:	Machine ,Motor,Generator
Brand:	Lovadon Other

Product Description

Model NO.: AZ7100, TZ7100, MN-5100
Operation Speed: 0.5mm to 50cm/S
Operation Frequency: 120times/Min (Mechanical) 40times/Min(Electrical)
Version: With Cone Bumper
Contact Resistance: 25m Ohm( Initial Value)
Contact Capacity: 10A 380vac/220vac 0.3A 220vdc
Export Markets: Global

Relevant Standad: EN 60947-1

General purpose micro switches may be used in AC control circuits of 50/60Hz, with a voltage up to 380V and a rated control capac ity
Of 100VA or in DC control circuits with a voltage up to 220V and rated control capacity of 10W.

International Model	C. lin Factory Model	OF max.	PT max.	OT min.	OP
International Model	C. lin Factory Model	OF max.	PT max.	OT min.	OP
AZ-7100, TZ-7100, MN-5100	LXW-AZ7100	5.9N (0.6KGF)	2.0 mm	0.8 mm	30.5± 0.8mm
AZ-7110, TZ-7110, MN-5110	LXW-AZ7110	5.9N (0.6KGF)	2.0 mm	5.0 mm	44.5± 1.2mm
AZ-7120, TZ-7120, MN-5120	LXW-AZ7120	5.9N (0.6KGF)	13.5 mm	4.0 mm	25± 1mm
AZ-7121, TZ-7121, MN-5121	LXW-AZ7121	1.8N (0.18KGF)	11.0 mm	3.0 mm	40± 1mm
AZ-7124, TZ-7124, MN-5124	LXW-AZ7124	2.0N(0.2KGF)	11.0 mm	3.0 mm	50± 1.2mm
AZ-7140, TZ-7140, MN-5140	LXW-AZ7140	2.2N(0.22KGF)	8.5 mm	2.5 mm	25± 1mm
AZ-7141, TZ-7141, MN-5141	LXW-AZ7141	2.0N(0.2KGF)	6.5 mm	2.0 mm	40± 1mm
AZ-7144, TZ-7144, MN-5144	LXW-AZ7144	2.7N(0.28KGF)	6.5 mm	2.0 mm	50± 1.2mm
AZ-7130, TZ-7130, MN-5310	LXW-AZ7310	5.9N(0.6KGF)	2.0 mm	6.0 mm	21.8± 1.2mm
AZ-7311, TZ-7311, MN-5311	LXW-AZ7311	5.9N(0.6KGF)	2.0 mm	6.0 mm	33.3± 1.2mm
AZ-7312, TZ-7312, MN-5312	LXW-AZ7312	5.9N(0.6KGF)	2.0 mm	6.0 mm	33.3± 1.2mm
AZ-7166, TZ-7166, MN-5166	LXW-AZ7166	1.2N(0.12KGF)	250 mm	11.0 mm

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
