Good Quality China PT100 Temperature Transmitter

Name: Good Quality China PT100 Temperature Transmitter
Brand: all-electronics-online.com
SKU: 746604625
Availability: InStock
Rating: 4.6 (96 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Signal: Thermocouple:	K\E\J\T\S\B; Rtd:PT100\Cu50\Cu100
Output Signal:	4-20mA (1-5V); 4-20mA with Hart Protocol
Ambiient Temperature:	-10~70 Celsius,
Name:	Temperature Transmitter
Measurement Range:	-40~1800 Celsius
Structural Type:	Assemble, Armour
Certification:	Ex, ISO9001, RoHS

Product Description

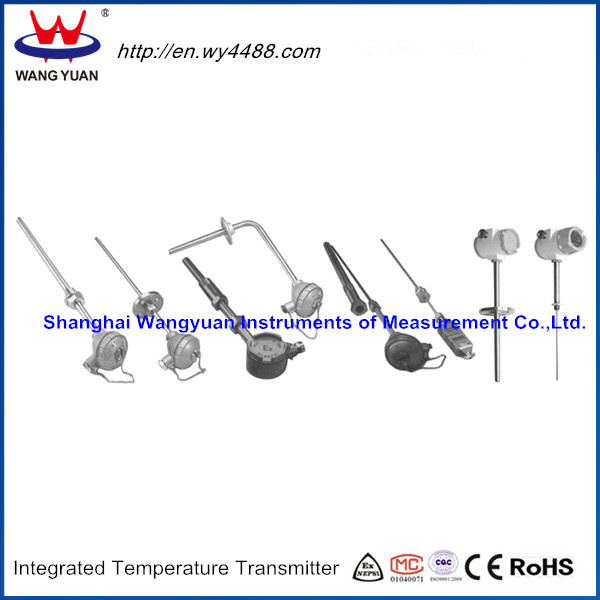

Good quality China PT100 Temperature Transmitter
Model: WB

Features
Linearity correct feature
Input signal: Thermocouple J, K, E, T, S, B
Thermal resistance PT100, Cu50, Cu100

Description
The function of the WB series temperature transmitter is to amplify the electrical signals from the sensor, to correct and depending on the model galvanically insulate them. The conditioned signal can then easily be transmitted over long distances to the in-/output sections of a process control system or controller.
Since the electrical signal from the thermocouple or resistance thermometer is relatively strong, signal amplification in close proximity to the sensors is not required.

Specification
Input signal: Thermocouple: K\E\J\T\S\B; RTD: Pt100\Cu50\Cu100
Output signal: 4~20mA(DC)/ HART
Supply voltage: 24V(DC)± 10%
Accuracy: 0.5%FS
Ambient temperature: Thermocouple: -10~70C RTD: -10~85C
Resistance Range: 0~500Ω

MORE DETAILS OF THIS PT100 TEMPERATURE TRANSMITTER, PLEASE DON'T HESITATE TO CONTACT US !
WITH US YOUR BUSINESS IS IN SAFE !

Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.

Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.

Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.

In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.

With our on-site experience, research and development services we are a leader in the industrial automation field, and provide global customers with high quality products and services.
