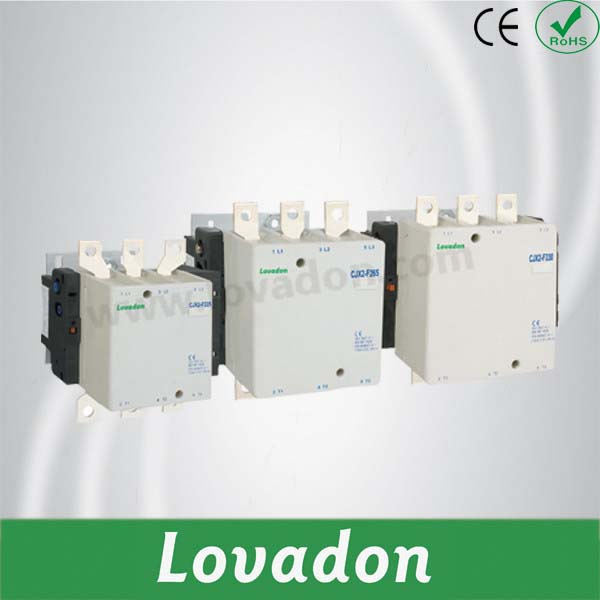

Good Quality Cjx2 Series F Model AC Contactor

Name: Good Quality Cjx2 Series F Model AC Contactor
Brand: all-electronics-online.com
SKU: 684101132
Availability: InStock
Rating: 4.5 (132 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	110V 220V 380V 415V
The Life Of The Machine:	1, 000, 000 Times
Manufacturers:	Yes
Brand Name:	Lovadon
Size:	Subminiature
Protective Characteristics:	Open Relay
Load:	Medium Power Relay
Theory:	Refers to Industrial Electricity Generated Magneti

Product Description

CJX2(LC1-D) series AC contactor(simplified as contactor in the following) is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current 95A, for making breaking an frequent starting, controlling the AC motor. Combined with the auxiliary contact group, air delayer, machine interlcking device, it is combined into the delay contactor, mechanical interlocking contactor, dtar-delta starter, with the thermal relay, it is combined into the electromagnetic starter.


Type			CJX2-F115	CJX2-F150	CJX2-F185	CJX2-F225	CJX2-F265	CJX2-F330	CJX2-F400	CJX2-F500	CJX2-F630
Main circuit characteristic
Poles		3P.4P
Rated operation voltage (Ue)		V	380 660 1000
Rated insulation voltage (Ui)		V	1000
Rated heating current (Ith)		A	200	200	275	275	315	380	450	630	800
Rated operation current (Ie)	AC-3 380V	A	115	150	185	225	265	330	400	500	630
	AC-3 660V	A	86	108	118	137	170	235	303	353	462
	AC-3 1000V	A	46	51	71	90	112	115	200	232	331
	AC-4 380V	A	52	60	79	85	105	117	138	147	188
	AC-4 660V	A	49	61	69	82	98	118	135	145	170
Max. power of 3 phase motor controlled	AC-3 220V	kW	30	40	55	63	75	100	110	147	200
	AC-3 380V	kW	55	75	90	110	132	160	200	250	335
	AC-3 660V	kW	80	100	110	129	160	220	280	335	450
Electrical life	AC-3	10000 t	60		50				30		20
Electrical life	AC-4	10000 t	1.5		1.5				0.8		0.5
Machinery life		10000 t	600		600				500		500
Operation frequency	AC-3	t/h	600		600				300		300
Operation frequency	AC-4	t/h	150		150				150		150
Matching fuse type			RT16-160	RT16-200	RT16-250	RT16-315	RT16-400	RT16-400	RT16-500	RT16-630	RT16-800
Matching thermal relay type		LR9-F53						LR9-F73
Wiring capacity		mm2	50	50	95	95	150	185	30x5(2)	40X5(2)	50X5(2)
Coil
Control power voltage (Us)	AC	V	48 110 220 380 440 600
Allowed control circuit voltage	Close	V	85%~110%Us
Allowed control circuit voltage	Open	V	20%~75%Us (AC)
Coil power	Close	VA	550		800		1200		1200	1250	1650
	Keeping	VA	45		55		13		20	24	22
	Loss power	W	12---16		18---24		12		14	18	20
Auxiliary Contact	AC	V	380
Rated heating current (Ith)	DC	V	220
Rated control capacity	AC-15	VA	360
Rated control capacity	DC-13	W	33

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
