| Prod Model: |
Z900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Speed Range: |
1:100(SVC) |
| Speed Stability Accuracy: |
± 0.5% (Sfvc) |
| Maximum Frequency: |
0~400Hz |
| Voltage Range: |
220V:170V~240V 380V:330~440V |
| Display: |
LED Display |
| Altitude: |
Lower Than 1000 M |
| Ambient Temperature: |
-10°c ~40°c |
| RS485: |
Standard RS485 Communication Function(Modbus) |
| Vibration: |
Less Than 5.9 M/S2 (0.6 G) |
| Protective Structure: |
IP20 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

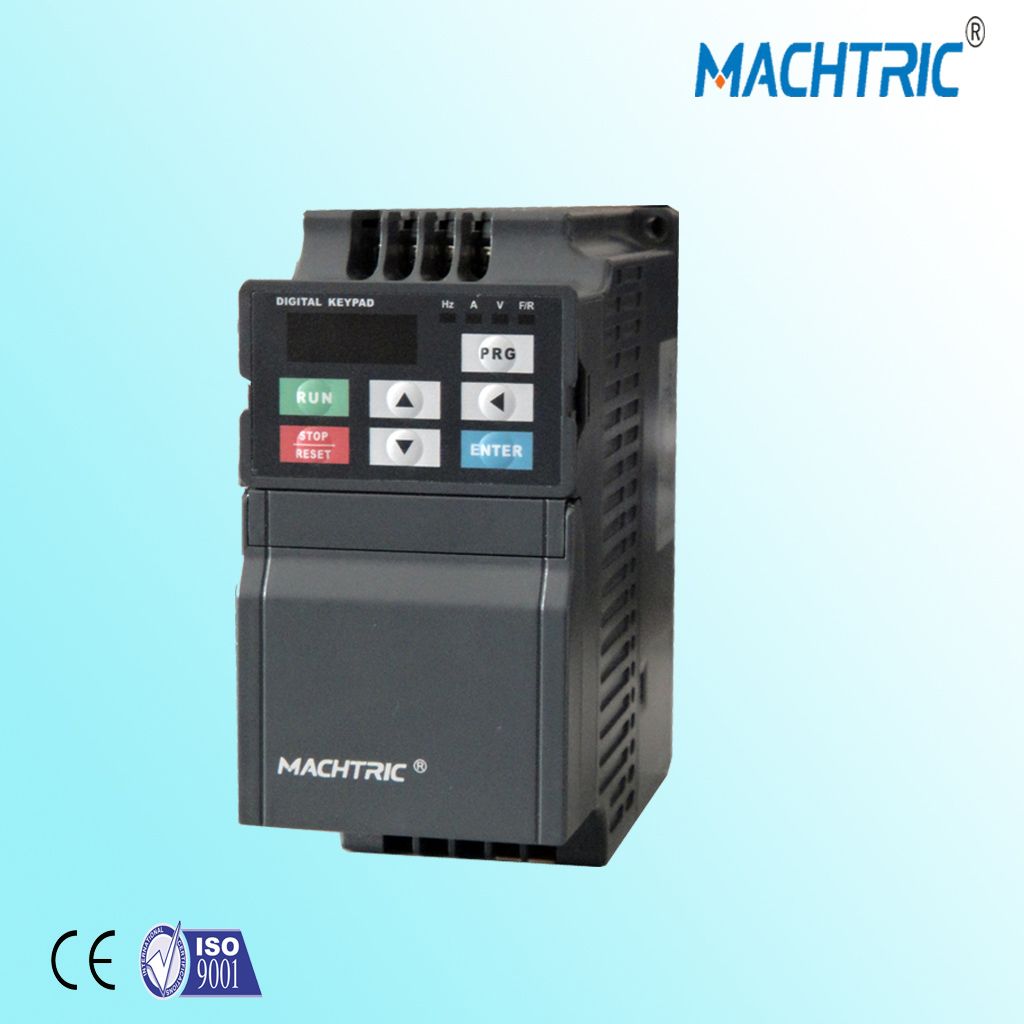

Good Quality Compact AC Frequency Drive with ISO
MODEL:Z900-4T3.7GE
INPUT:3PH 380V 50Hz/60Hz
OUTPUT:3PH 380V 9.0/13.0
FREQ RANGE:0.1-400Hz 3.7KW
Selection Guide
| Model No. | Input Voltage | Rated Output Power (KW) | Rated Input Current(A) | Rated Output Current (A) | Motor Power (KW) |
| Z900-2S0.4GE | 1PH AC
220V?50/60Hz | 0.4 | 5.4 | 2.4 | 0.4 |
| Z900-2S0.75GE | 1PH AC
220V?50/60Hz | 0.75 | 7.2 | 4.5 | 0.75 |
| Z900-2S1.5GE | 1PH AC
220V?50/60Hz | 1.5 | 10 | 7.0 | 1.5 |
| Z900-2S2.2GE | 1PH AC
220V?50/60Hz | 2.2 | 16 | 10.0 | 2.2 |
| Z900-2S3.7GE | 1PH AC
220V?50/60Hz | 3.7 | 23 | 16.0 | 3.7 |
| Z900-4T0.75GE | 3PH AC
380V·50/60Hz | 0.75 | 3.8 | 2.5 | 0.75 |
| Z900-4T1.5GE | 3PH AC
380V·50/60Hz | 1.5 | 5 | 3.7 | 1.5 |
| Z900-4T2.2GE | 3PH AC
380V·50/60Hz | 2.2 | 5.8 | 5.0 | 2.2 |
| Z900-4T3.7GE/5.5GP | 3PH AC
380V·50/60Hz | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| Z900-4T5.5GE | 3PH AC
380V·50/60Hz | 5.5 | 15.0 | 13.0 | 5.5 |
| Z900-4T7.5GE | 3PH AC
380V·50/60Hz | 7.5 | 14 | 17.5 | 7.5 |
| Z900-4T7.5GE/11GP | 3PH AC
380V·50/60Hz | 7.5/11 | 20.0/26.0 | 17.0/25.0 | 7.5/11 |
| Z900-11GE/15GP | 3PH AC
380V·50/60Hz | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 |
Z900-15GE/
18.5GP | 3PH AC
380V·50/60Hz | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |
Z900-18.5GE/
22GP | 3PH AC
380V·50/60Hz | 18.5/22 | 38.0/46.0 | 37.0/45.0 | 18.5/22 |
| Z900-22GE/30GP | 3PH AC
380V·50/60Hz | 22/30 | 46.0/62.0 | 45.0/60.0 | 22/30 |
About us:
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business . With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers. At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products:
1. Computerized control system of textile machines: Seamless Underwear machine, Computerized Flat Knitting Machine, Glove Machine, Circular Knitting machine, Auto-Stripper Knitting Machine, Hosiery Machine, Automatic Winding Machine, Automatic Spooler Machine etc.
2. Inverter series:
Vector series: Z900, ,S2800E,S1100VG,S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series, S2100S series
Dedicated series: S100 Series, S200 series(circular knitting machine),
Mini Series : S800E
| Why choose us |
More than 15 years - we are more than 15 years professional manufacture frequency inverter
More than 50 countries- we exported our products to more than 50 countries all over the world.
Professional work team- we can accept OEM ODM
Powerful production capacity - we can offer a large quantity products each month.
Certification -we have passed CE
We offer 24 hours service
|
Target market of Z900A series inverter
Food machinery-Feeder, mixer, bag filling machines, pastry forming machine
Woodworking Machinery-Polishing machine, grinding machine, carving machine
Textile Machinery-winding machine, fabric inspection machine
Packaging Machinery-Liquid filling machine, pharmaceutical filling machine
Other: Stone cutting machine
Blowing machine, Water-pump-housetop/a fan to fill and exhaust gas, small
Pump for water supply
Printing equipment-offset
Conveyor belt-Small conveyor belt, common conveyor belt
Feeding equipment-Tool machine, winding machines, weaving machines equipment
Rubber and plastic industry-Sealing machine, various types of small machine
General business-Common household, air conditioning, automatic door
| Model | Outline dimension | Installation size |
| W | H | D | A | B | Φd |
| Z900-2S0.4GE | 72 | 142 | 146 | 132.7 | 62.7 | 5.2 |
| Z900-2S0.75GE |
| Z900-2S1.5GE |
| Z900-2S2.2GE | 100 | 183 | 137.6 | 173 | 90 | 4.7 |
| Z900-2S3.7GE |
| Z900-4T0.4GE | 72 | 142 | 146 | 132.7 | 62.7 | 5.2 |
| Z900-4T0.75GE |
| Z900-4T1.5GE |
| Z900-4T2.2GE |
| Z900-4T3.7GE/5.5PE | 100 | 183 | 137.6 | 173 | 90 | 4.7 |
| Z900-4T5.5GE/7.5PE |
| Z900-4T7.5GE/11PE | 130 | 260 | 178 | 246.5 | 116 | 5.5 |
| Z900-4T11GE/15PE |
| Z900-4T15GE/18.5PE | 195 | 280 | 175 | 266 | 182.5 | 6.5 |
| Z900-4T18.5GE/22PE |
| Z900-4T22GE/30PE |
