| Prod Model: |
SLT-385PA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
12V |
| No Load Speed: |
5491 |
| No Load Current: |
0.065A |
| Load Speed: |
4445rpm |
| Load Current: |
0.276A |
| Load Torque: |
46.3G.Cm |
| Output: |
1.94W |
| Stall Torque: |
243.4G.Cm |
| Stall Current: |
1.175A |
| Application: |
Medical Equpiments |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Certification: |
CE |
| Brand: |
Slt |
Product Description
Voltage:12V
No Load Speed:5491rpm
No Load Current:0.065A
Load Speed:4445rpm
Load Current:0.276A
Load Torque:46.3G.Cm
Output:6.1.94W
Stall Torque:243.4G.Cm
Stall Current:1.175A
Model | RS-385PA-15120 | RS-385PA-10280 | RS-385PA-13220 |
| Voltage | Operating Range (V) | 9.0-15.0 | 18.0-30.0 | 18.0-30.0 |
| Nominal (V) | 12.00 | 24.00 | 24.00 |
| NO Load | Speed | r/min | 5491 | 5276 | 6750 |
| Current | A | 0.065 | 0.033 | 0.051 |
| At Max Efficiency | Speed | r/min | 4445 | 4168 | 5525 |
| Current | A | 0.276 | 0.124 | 0.23 |
Torque | mN.m | 4.54 | 3.95 | 6.3 |
| g.cm | 46.3 | 40.3 | 64.2 |
| Output | W | 1.94 | 1.61 | 3.34 |
| Stall | Torque | mN.m | 23.85 | 18.82 | 34.69 |
| g.cm | 243.4 | 192 | 354 |
| Current | A | 1.175 | 0.467 | 1.038 |

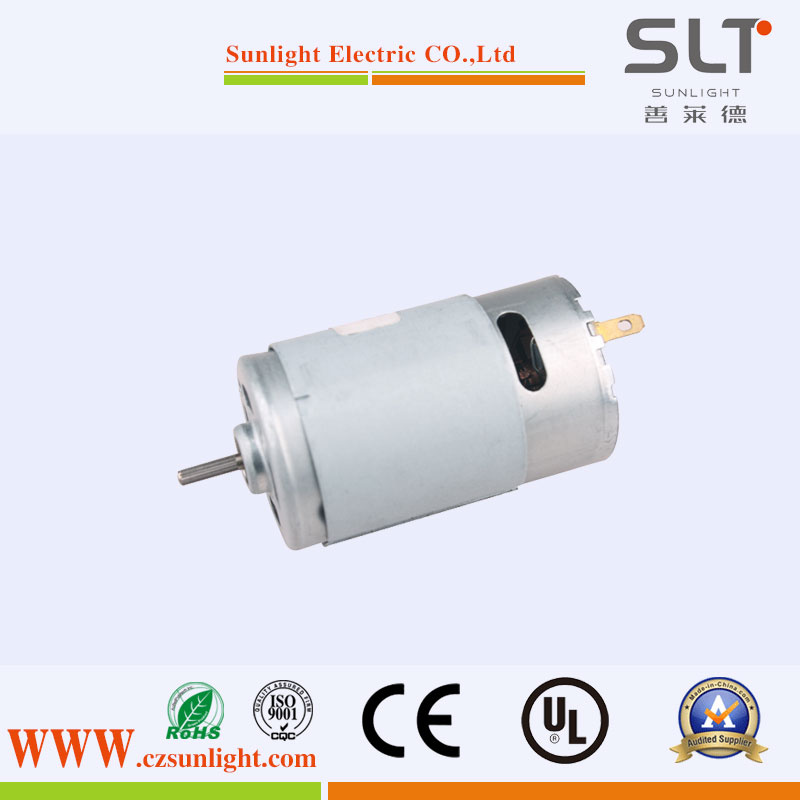

Advantages of Good Quality DC Brushed Motor for Stationery
