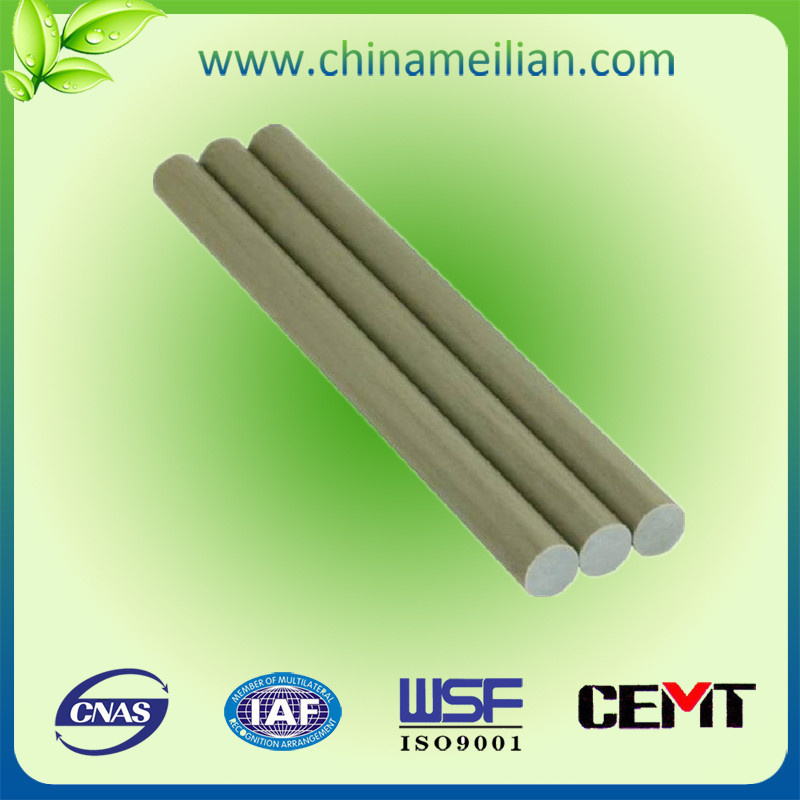

Good Quality Electrical FRP Insulation Rod

Prod Model:	MJ-3641
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Customer Requirement
Density:	2g/cm3
Delivery Time:	Within 7-10 Working Days
Application:	Generator & Transformer
Type:	Insulation Sleeve
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

3641 Insulation Laminate Epoxy Rod /Pole






Appearance:
Surface smoothly without bubble and impurities

Feature:
Excellent mechanical & electric property
Good heat & moisture resistance
Easy for processing & machining
High mechanical strength

Application:
Used as insulating tube/pipe in high voltage arrester and high voltage switch

Packaging Detail: Epoxy slot wedge package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.

Delivery Detail: 7-10 working days

FAQ:

(1) Can you give me a discount price?

It is depending on the volume. The larger the volume is, the more discount you can enjoy.

(2) How can I get a sample?

Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.

(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.

Basic information
Product name	Epoxy fiberglass tube/sleeve/pipe/rod
Brand	MJ
Material	Fiberglass and epoxy resin
Grade	Grade B / B-F / F / H
Technical Performance
Diameter	10~300 mm
Length	≤1500 mm
Density	≥1.75 g/cm3
Flexural strength	≥420 Mpa
Compressive strength	≥120 Mpa
Dielectric strength perpendicular to the layer	≥15 MV/m
Water absorption	≤0.4 %
Storage period	6 Month(Below 5°C)
