| Prod Model: |
Gel Battery |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
12V |
| OEM: |
Yes |
| Warranty Time: |
1 Year |
| Maintenance Type: |
Free |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Discharge Rate: |
Ultrahigh Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
2V, 6V, 12VDC |
Product Description

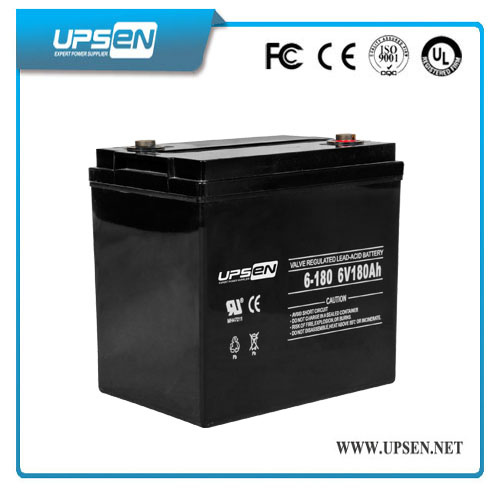

good quality Gel Solar UPS Battery for Automatic office system
Key Features
1:High Reliability and Quality.
2:Stable quality&high reliability.
3:Excellent Recovery from Deep Discharge.
4:Living Up to Prevailing Standards.
5:Flexibility design for multiple install positions.
6:Safety valve regulated system
7:ABS Engineering plastics shell: anti-aging
8:No memory effect after repetitious usage or discharges
9:Maintenance-free operation.
10:ABS case (can be made with flame retardant V0)
11:Excellent deep discharge recovery capability
12:Low pressure venting system
13:Safety valve installation for explosion proof.
14:Unique formula, exception deep discharge recovery performance
15:Low self-discharge: lower than 3% of rated capacity per month under normal operating temperature
16:Exceptional deep discharge recovery performance.
Applications
1:Solar/Wind Power System
2:Automatic office system
3:Radio communication system
4:Emergency lighting and car/ship starting system
5:Portable electric appliances and mining system
6:Traffic and navigation signal lamp
7:Golf Car, wheelchair, electric bike, electric car etc.
Technical Specification
| Model | Nominal | Capacity | External Dimension | Weight | Terminal |
| Voltage | (Ah) | Length | Width | Height | Total Height | Approx | Type |
| (V) | 10Hr(20hr) | mm | inch | mm | inch | mm | inch | mm | inch | kg | pound | |
| GL12310 | 12 | 31 | 196 | 7.7 | 131 | 5.16 | 155 | 6.1 | 170 | 6.69 | 11 | 24.31 | T64/T16 |
| GL12400 | 12 | 40 | 196 | 7.73 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | 14 | 30.94 | T9/T16 |
| GL12500 | 12 | 50 | 230 | 9.1 | 138 | 5.43 | 208 | 8.19 | 232 | 9.13 | 17.5 | 38.55 | T9/T16 |
| GL12650 | 12 | 65 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | 23 | 50.8 | T9/T16 |
| GL12700 | 12 | 70 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.01 | 24 | 53 | T33B/T16 |
| GL12800 | 12 | 80 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | 26 | 57.4 | T33B/T16 |
| GL12850 | 12 | 85 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | 29 | 64.1 | T10B/T16 |
| GL12950 | 12 | 95 | 394 | 15.51 | 109 | 4.29 | 285 | 11.22 | 285 | 11.2 | 34 | 74.96 | T46 |
| GL12950(II) | 12 | 95 | 508 | 20 | 110 | 4.33 | 224 | 8.82 | 239 | 9.41 | 33 | 72.75 | T46 |
| GL121000 | 12 | 100 | 331 | 13 | 173 | 6.81 | 213 | 8.39 | 235 | 9.25 | 32 | 71 | T10,T16 |
| GL121000(II) | 12 | 100 | 330 | 12.99 | 173 | 6.81 | 214 | 8.43 | 219 | 8.62 | 32 | 70.4 | T16 |
| GL121200 | 12 | 120 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | 39.5 | 87.3 | T11D/T16 |
| GL121340 | 12 | 134 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.1 | 42.5 | 93.7 | T19 |
| GL121350 | 12 | 135 | 484 | 19.06 | 177 | 6.97 | 241 | 9.49 | 241 | 9.49 | 46 | 101.4 | T12/T50 |
| GL121500 | 12 | 150 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | 49 | 108 | T12/T50 |
| GL121500(II) | 12 | 150 | 551 | 21.69 | 109 | 4.29 | 228 | 8.98 | 228 | 8.98 | 51 | 112.4 | T46 |
| GL121550 | 12 | 155 | 547 | 21.54 | 125 | 4.92 | 317 | 12.48 | 317 | 12.5 | 56 | 123.5 | T46 |
| GL121600 | 12 | 160 | 534 | 21.1 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 53 | 117 | T11/T60 |
| GL121800 | 12 | 180 | 530 | 20.8 | 209 | 8.23 | 216 | 8.5 | 237 | 9.33 | 57 | 126 | T11/T60 |
| GL122000 | 12 | 200 | 522 | 20.6 | 240 | 9.45 | 220 | 8.66 | 244 | 9.6 | 67 | 148 | T11/T19 |
| GL122300 | 12 | 230 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.44 | 76 | 168 | T12/T19 |
| GL122500 | 12 | 250 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 241 | 9.29 | 79 | 175 | T12/T19 |
| GL61800 | 6 | 180 | 260 | 10.2 | 180 | 7.09 | 246 | 9.69 | 251 | 9.89 | 30 | 66.1 | T19 |
| GL62000 | 6 | 200 | 323 | 12.7 | 178 | 7.01 | 224 | 8.81 | 248 | 9.77 | 31 | 38.3 | T19 |
| GL62200 | 6 | 220 | 243 | 9.57 | 188 | 7.41 | 275 | 10.83 | 275 | 10.8 | 34.5 | 75.9 | T19 |
| GL2500 | 2 | 50 | 160 | 6.3 | 50 | 1.97 | 166 | 6.54 | 176 | 6.93 | 3.2 | 7.1 | T16 |
| GL21000 | 2 | 100 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | 6.4 | 14.11 | T16 |
| GL21500 | 2 | 150 | 172 | 6.8 | 102 | 4.02 | 206 | 8.11 | 227 | 8.92 | 9 | 19.8 | T94 |
| GL22000 | 2 | 200 | 172 | 6.8 | 111 | 4.37 | 329 | 12.96 | 365 | 14.4 | 14 | 30.9 | T20 |
| GL23000 | 2 | 300 | 171 | 6.7 | 151 | 5.94 | 330 | 13 | 365 | 14.4 | 20.5 | 45.2 | T20 |
| GL24000 | 2 | 400 | 211 | 8.3 | 176 | 6.93 | 330 | 13 | 366 | 14.4 | 27.5 | 60.6 | T20 |
| GL25000 | 2 | 500 | 242 | 9.5 | 172 | 6.8 | 331 | 13 | 356 | 14 | 33.5 | 73.9 | T20 |
| GL26000 | 2 | 600 | 301 | 11.9 | 175 | 6.89 | 331 | 13 | 356 | 14 | 41 | 90.4 | T20 |
| GL28000 | 2 | 800 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | 55 | 121.3 | T20 |
| GL210000 | 2 | 1000 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14 | 66.5 | 146.6 | T20 |
| GL215000 | 2 | 1500 | 401 | 15.8 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 103.5 | 228.2 | T20 |
| GL220000 | 2 | 2000 | 491 | 19.3 | 351 | 13.8 | 344 | 13.5 | 369 | 14.5 | 136 | 299.8 | T20 |
| GL230000 | 2 | 3000 | 712 | 28 | 353 | 13.9 | 343 | 13.5 | 369 | 14.5 | 203.5 | 448.6 | T20 |
| *Specification are subject to change without prior notice |
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
