Good Quality Lch125 Series Isolating Switch Circuit Breaker

Name: Good Quality Lch125 Series Isolating Switch Circuit Breaker
Brand: all-electronics-online.com
SKU: 684072972
Availability: InStock
Rating: 4.7 (60 reviews)

Price:	US $ 0.5-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LCH-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CE
Installation:	DIN Type
Structure:	Single-Column Disconnector
Poles Number:	1p,2p,3p,4p

Product Description

10 KA according IEC 60947-2 and IEC 60947-4

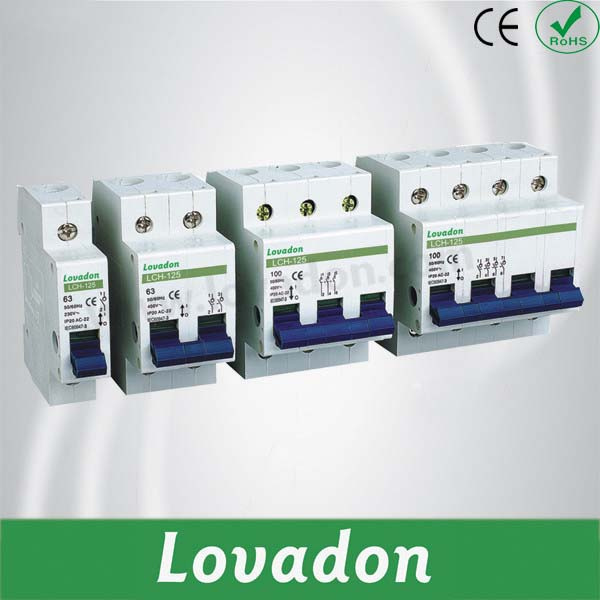

1.Item name: Isolating Switch(LCH-125)
2.standard: IEC/EN60947-3
3.Number of pole: 1,2,3,4pole
4.Rated voltage Ue ( V ) : 230 / 400
5. Rated current ( A ) :32 , 63 , 100
6.Rated frequency ( Hz ) : 50 / 60
7. Rated impulse withstand voltage ( 1.2 / 50 ) Uimp ( V ) : 4000

1.Specifications
	Standard		IEC/EN 60947-3
Electrical Feature	Poles	P	1,2,3,4
	Rated voltage Ue	V	230/400
	Rated current	A	32,63,100
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage(1.2/50) Uimp	V	4000
	Rated short-time withstand current lcw		12le,1s
	Rated making and breaking capacity		3Ie,1.05Ue,cos =0.65
	Rated short circuit making capacity		20Ie,t=0.1s
	Dielectric test voltage at ind.Freq.for 1min	kV	2.5
	Insulation voltage Ui	V	500
	Pollution degree		2
Mechanical features	Electrical life	t	1500
	Mechanical life	t	8500
	Protection degree		lP20
	Ambient temperature(with daily average 35 )	C	-5~+40
	Terminal size top/bottom	mm2	35
	for cable and pin-type busbar	AWG	18

.Product Description
Provides protection against Short-circuit/Overload current and function of isolation.
High breaking current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference, voltage fluctuation
