Good Quality Ltf Series Drop out Fuse

Name: Good Quality Ltf Series Drop out Fuse
Brand: all-electronics-online.com
SKU: 684286672
Availability: InStock
Rating: 4.6 (144 reviews)

Price:	US $ 15-18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LTF1-4 10KV-15KV LTF5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1:	Small Instant Switch Resistance
2:	Good Steady Rise Property
3:	Reduce Power Grid's Loss
4:	Safe Antiseptic, Antirust and Acid Proofing Design
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Shape:	Insert ,Drop out,Cut off

Product Description

1. Item name: Fuse LTF-2
2. Material: Porcelain
3. Rated voltage: 10-15KV
4. Rated current: 100A/200A
5. Breaking current: 12000A
6. Impulse Voltage(Bil): 110KV

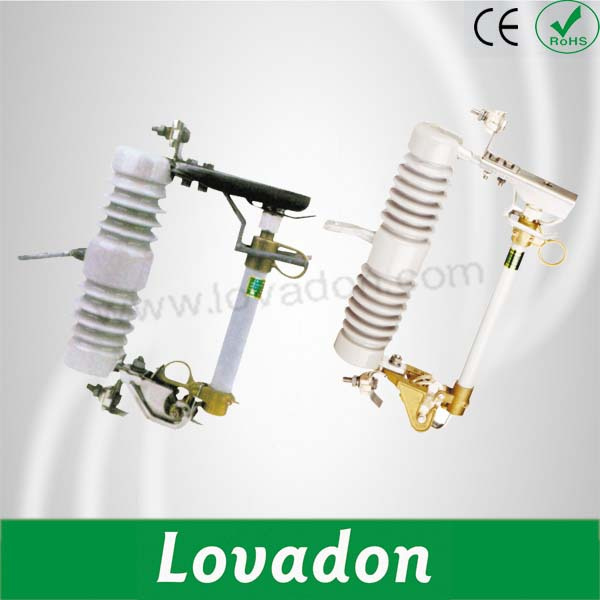

Drop-out fuse cutout and load switching fuse cutouts are outdoor high voltage protection device. They are connected with the incoming feeder of the distribution transformer or distribution lines. These are primarily used to protect transformers or lines from short circuits and overloads and switching currents. The drop-out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass. Load switching cutout fuse provides stretch auxiliary contacts and arc-extinguishing enclosure for switching on/off loading current.
In normal operation the fuse link is tightened to form the closed position. In fault current situation, the fuse link melts and an electrical arc is formed. The arc-extinguishing tube is heated and explosion of gas occurs. This causes high pressure inside the tube and cause the tube to separate from the contacts. The strength of the contact is relaxed once the fuse elements melt.
The cutout is now in the open position, the operator needs to switch the current off. Then with an insulated operating bar, the moving contact can be pulled off. The main contact and auxiliary contact is connected.
