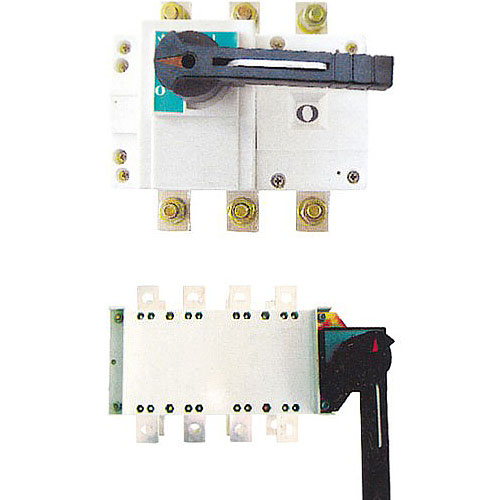

Good Quality Mgls1 Series Load Switch (MGLS1)

Prod Model:	MGLS1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Voltage:	AC400,690V DC220,440V
Serie:	Mgls1
Application:	Power Distribution Circuit
Design Code:	1
Company Code:	Mg
Rated Short-Time Withstand Current Ka:	50,80,70,100
Load Times:	400,600,1000,1600
Kiad Times:	100,200
Operation Torque:	10,14.5,37,50,60
None Load Times:	300,500,800,1400
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Indoor High-voltage
Operation:	Electric
Grounding:	Double Ground
Series:	Four
Run:	Turn the Horizontal
Switching Mode:	Double-Throw Type
Certification:	CE
Common Model:	Mg

Product Description

Application:
STLS1 series load switch is mainly applied to power distribution circuit with rated
AC 50 Hz, rated voltage up to 690V and rated working current up to 3200A for
Making and breaking or isolating the circuit.
Standard: IEC60947-3, GB 14048.3 etc.

load isolation switch(hereinafter called switch for short) is manufactured by our company with the up-to-date technique imported from europe.
This product meets the international technial level in the late 1990S. Being the most ideal renewal of domestic congeneric products.
This kind of lode isolation switch is widely used in the distribution system and automatic system of architecture, electrical power, petrochemical, and other industries.
This kind of lode isolation switch possesses flexible structure of modularized design, possesses fiexible and versatile compositionality, it adopts the shell made by unsaturated polyester resin reinforced by glassfibre. It has very high dielectric performance. Protective capability, and reliable operation.
The operating mechanism is an elastic energy accumulation accelerating mechanism for instant release, which makes instant on and off of the double breakpoint contact, It has no relationship
With the speed of operating handle and increases greatly various electric properties.
Many forms of structres and operations in which the on and off state of contact is observed through windows. There are operations inside and outside the board. There are frontal and lateral operations. There are connections behind the board.
This kind of swich has a good-looking outline and various functions, being very novel, simple and small-dimensioned, and the best choice among the congeneric prouducts.
Characteristics
1The elastic-accumulating accelerating mechanism for instant realizes the rapid making and breaking (13.8m/s), having no relationship with the speed of the operating handle, and increasing greatly the capability of extinguishing electric arc.
2The shell made of unsaturated polyester resin reinforced by glass fiber possesses excellent performance of flame resistant, dielectric performance and safe operation, resist carbonic performance and resist impact performance.
3Parallel double gap contact possesses self-cleaning functions.
4All the contact materials are copper alloy plated with silver, with two separation contact surfaces.
5Large distance of insulation
6Be on "0" position, the switch handle can be locked with three locks at the same time and thus avoid error operation.
Product usage

Operation Frequency	Load Times	Kiad Times
10,20,60,120	400,600,1000,1600	100,200
