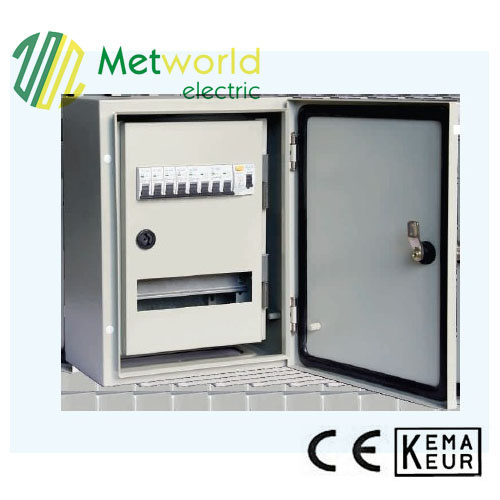

Good Quality Modular System Distribution Board

Prod Model:	MEA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
No Of Breaker:	24, 48, 66, 84, 88, 112, 168, 240
Degree:	IP55
Brands:	Metworld
Material:	Steel
Standards:	IEC
Voltage:	Low Voltage
Paint:	Customizedd
Color:	Customizedd
Dimension:	Customized
Design:	Customized
Type:	Distribution Metering Box
Structure:	Fixed Board
Size:	Customized
Shell Material:	Customized
Brand:	Metworld

Product Description

We supply all kinds of distribution boxes.Best quality,best service with competive price.Let's work together brotherly and be successful in electric materials all over the world.

1. Matterial: Sheet steel
2. Paint finish: Both externally and internally
3. Protected with epoxy polyester coating
4. Textured finish RAL7032 or RAL7035
5. Mounting plate: Powder coated similar to RAL2000 or galvanized
6. IP rate: IP65
7. Certificate: CE, RoHS
8. Supply include: Enclosure door, mounting plate, gland plate sealing gasket

Dimension(mm)			Modular layer	No.of breaker
H	W	D
400	300	150	2	24
500	400	150	3	48
600	400	150	3	48
600	600	150	3	84
750	500	150	3	66
750	500	150	4	88
800	600	150	4	84
800	600	150	4	112
1000	600	150	6	168
1000	800	150	6	240
