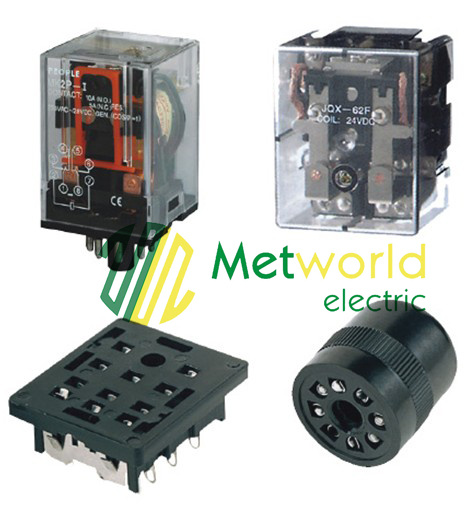

Good Quality New General Relay & Socket

Prod Model:	MY, MX, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	Customized
Brands:	Metworld
Standards:	CE
Series:	My
Contact Capcity:	5A, 30V, 3A 250V
Terminal Layout:	2, 3, 4z
Color:	Black
AC Or DC:	AC DC
Operating Temperature:	-40~+60
Mounting Methods:	Printed-Circuit Board, Outlet

Product Description

Application
MY series general relay is widely suitable for DC or AC circuit switching in various automation devices, process control and communication equipments etc. It is characteristic of stable performance, high reliability, capable of making and breaking relatively large load current, easy in maintenance and inspection as well as long service life. The plug-in base of the relay is suitable for use with standard 8 and 11 pins socket.

Model		MY-2	MY-3	MY-4
Terminal Layout		2Z	3Z	4Z
Contact Capacity	AC	5A 250V	5A 250V	3A 250V
	DC	5A 30V	5A 30V	3A 30V
Contact Resistance(m)		<=50m	<=50m	<=50m
Insulation Resistance(m)		>=100m	>=100m	>=100m
Dielectric   strength	BOC	1000VAC	1000VAC	1000VAC
	BCC	1500VAC	1500VAC	1500VAC
Coil   nominal voltage	AC	6   to 240V	6   to 240V	6   to 240V
	DC	6   to 220V	6   to 220V	6   to 220V
Coil   nominal power	AC	0.9VA   to 1.2VA	0.9VA   to 1.2VA	0.9VA   to 1.2VA
	DC	≤0.9W	≤0.9W	≤0.9W
Electrical Life(OPS)		10^5	10^5	10^5
Mechanical Life(OPS)		10^7	10^7	10^7
Operating Temperature		-40~+60	-40~+60	-40~+60
Weight(g)		<=35	<=35	<=35
Mounting Methods		Printed-circuit board,   Outlet	Printed-circuit board,   Outlet	Printed-circuit board, Outlet
