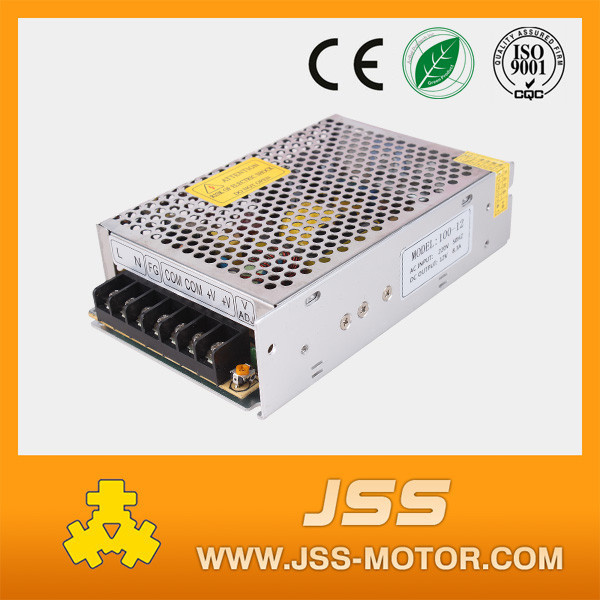

Good Quality Power Supply 12V DC Switching Power Supply

Output Type:	Single
Warranty:	1 Year
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Brand:	Jss

Product Description

12v Switch power supply(220v or 110v)
1,Input parameter
1.1 AC input voltage range: 85-132VAC/176~264VAC
1.2 AC input voltage frequency:47~63Hz
1.3 AC input current:     1.6A/230VAC
1.4 AC inrush current:Cold start, 50A at 230VAC
1.5 Efficiency:85%
1.6 Leakage current:<3.5mA/240VAC
2,Output parameter
2.1 DC output voltage:36V
2.2 DC output rated current:11A
2.3 DC output current range:0~5A
2.4 DC output rated power:400W
2.5 Ripple & Noise (max):150mVp-p
(Measured at 20MHz of bandwidth by using a 12mm twisted pair-wire
terminated with a 0.1uf & 47uf parallel capacitor)
2.6 DC output voltage adjustment range (min):21.6~26.4V
2.7 DC output voltage tolerance:23.96~24.10V
2.8 DC output line regulation:±0.5%
2.9 DC output load regulation:±1%
2.10 Power setup time:100mS at full load
2.11 Power rise time:50mS at full load
2.12 Power hold time:20mS at full load
2.13 Power respond time:500uS
3,Protection
3.1 Over load: 105~150% of rated load, shut off,AC recycle to re-start
3.2 Short circuit: shut off  AC recycle to re-start
3.3 Over Voltage: 115~145% of rated voltage, shut off,AC recycle to re-start
4,Working entironment
4.1 Working temperature range: -10°C~+55°C
(Refer to output load derating curve)
4.2 Working humidity range: 0~90%RH non-condensing
4.3 Storage temperature range: -40°C~+85°C
4.4 Storage humidity range: 10~95%RH
4.5 Temperature coefficient:±0.03%/°C(0~50°C)
4.6 Vibration:10~500Hz,2G,10min/cycle,60min, each along X, Y, Z axes
5,Safety & EMC
5.1 Safety standards:design refer to UL60950-1,TUV EN60950-1
5.2 Withstand voltage:I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC O/P-FG:0.5KVAC
5.3 Isolation resistance:I/P-O/P,I/P-FG,O/P-FG:100MΩ/500VDC
5.4 EMC standards:design refer to EN55022,Class B

6.Others

6.1 MTBF:100,000 hours min, MIL-HDBK-217F(25°C)
6.3 Connection:7P/9.5mm pitch terminal block
