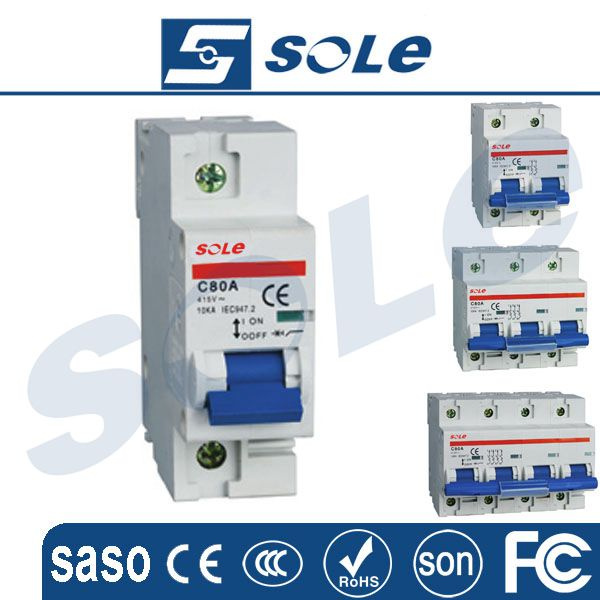

Good Quality Slmcb-100h MCB Mini Circuit Breaker

Good Quality Slmcb-100h MCB Mini Circuit Breaker
Price: US $ 0.5-2/Piece
Trade Terms: FOB,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: SLMCB-100H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MCB: Miniaure Circuit Breaker
Structure: MCB
Breaking Capacity: Low Voltage Circuit Breakers
Certification: CCC
Operation: Manual Type
Installation: Insert
Arc-extinguishing Medium: Air
Speed: Normal Type Circuit Breaker
Poles Number: 1,2,3,4p

Product Description

Specication and Feature

High short-short capacity 10KA
Designed to protect circuit carrying big current up to 100A
Contact position indication
Used as main switch in household and similar installation

Technical Data
Pole No.1, 2, 3, 4
Rated voltageAC 240/415V
Rated current (A)63, 80, 100

Tripping curveC, D

Rated breaking capacity (Icn)10000A

Rated service breaking capacity(Ics)7500A
Rated frequency50/60Hz
Rated impulse withstand voltage6.2kV
Electro-mechanical endurance10000

Connection terminalPillar terminal with clamp
Connection capacityFlexible conductor 35mm 2

Rigid conductor up to 25mm 2
InstallationOn symmetrical DIN rail 35mm
Panel mounting

Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.

Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.

The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.

The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.

Together with you, Souli is willing to create a better future.
