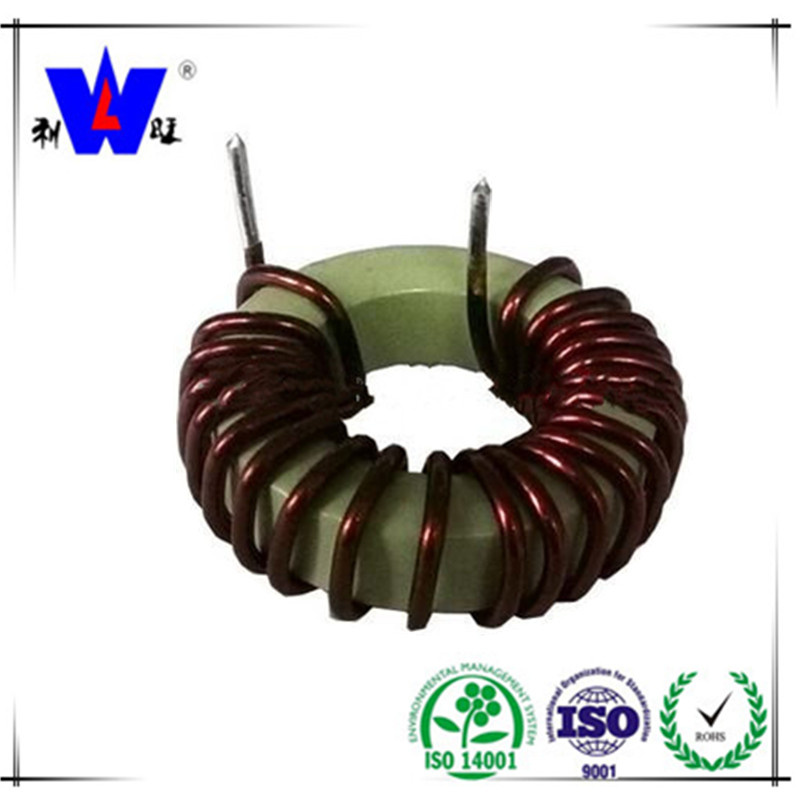

Good Quality Toroidal Power Choke Coil Inductors

Name: Good Quality Toroidal Power Choke Coil Inductors
Brand: all-electronics-online.com
SKU: 824189245
Availability: InStock
Rating: 4.9 (150 reviews)

Price:	US $ 0.1-1/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TCC
Environmental Certification:	ISO14001
Quality Certification:	ISO9001
Other Certification:	RoHS
Safety Certification:	CQC03003095~3097
Material:	Material
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Liwang

Product Description

Specifications
Effective in filtering supply lines having in-phase signals
of equal amplitude

FEATURE&APPLICATION:
Effective in filtering supply lines having in-phase signals
of equal amplitude
Allows equipment to meet FCC and electrical radiation
specifications
Broad frequency ranges can be filtered
Typical applications include: power line filter, suppress EMI in
switched-mode, and power supplies
Dielectric withstanding voltage rated at 2000 VAC line to line

Packaging & Delivery

Packaging Details:	carton
Delivery Detail:	within 15 working days after recieve the full paym

PART NUMBER	Inductance (mH±30% )	DCR (Max Ohms)	Leakage Inductance (µH) Typ
FY-5105-7.5-1	7.5	0.306	81
FY-5105-13-1	13.0	0.400	190.0
FY-5105-3.8-2	3.8	0.104	43.0
FY-5105-6.5-2	6.5	0.143	105.0
FY-5105-1.9-4	1.9	0.042	20.5
FY-5105--3.3-4	3.3	0.054	54.0
FY-5105-1.5-6	1.5	0.030	17.0
FY-5105-2.6-6	2.6	0.040	40.0
FY-5105-0.9-9	0.9	0.016	11.2
FY-5105-1.5-9	1.5	0.021	22.0
FY-5105-0.7-12	0.7	0.012	8.0
FY-5105-1.2-12	1.2	0.016	17.0
FY-5105-0.5-15	0.5	0.008	10.0
FY-5105-0.8-15	0.8	0.009	14.0

Our advantage:
1.More than 5,000,000 ownstock inventory to meet your needs of different products.
2.Competitive price advantage helps to save your purchase cost and your precious time.

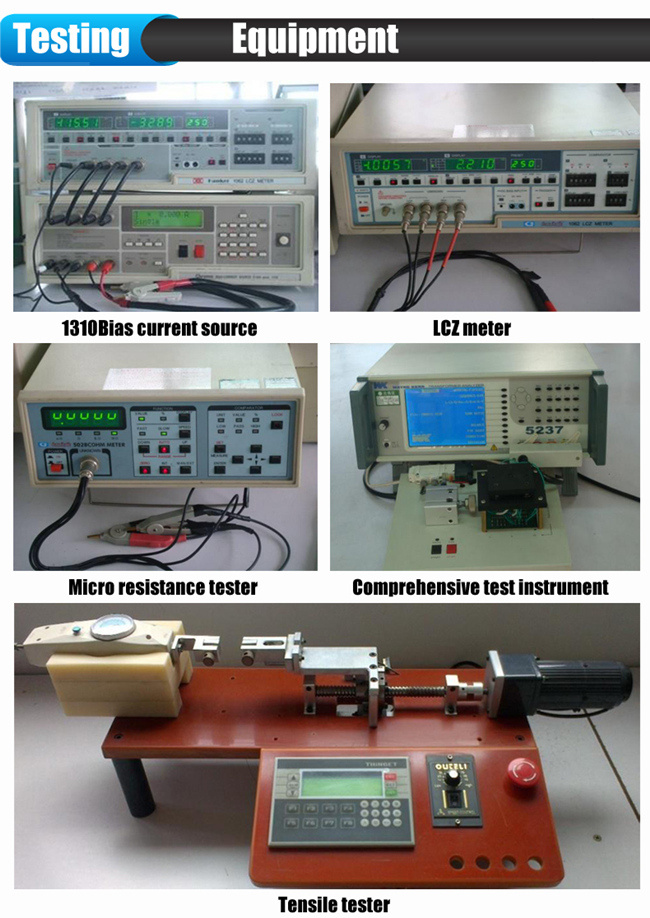

3.Own the international advanced testing equipment of electronic components and scientific storage system to ensure the quality stability.
4.Excellent elite team, more than 5 years seniority, and a good understanding of international market trends.

We'll reply you within 24 hours.If any questions or concerns pls contact us at any time convenience to you

Thank you and Have a nice Day!

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
