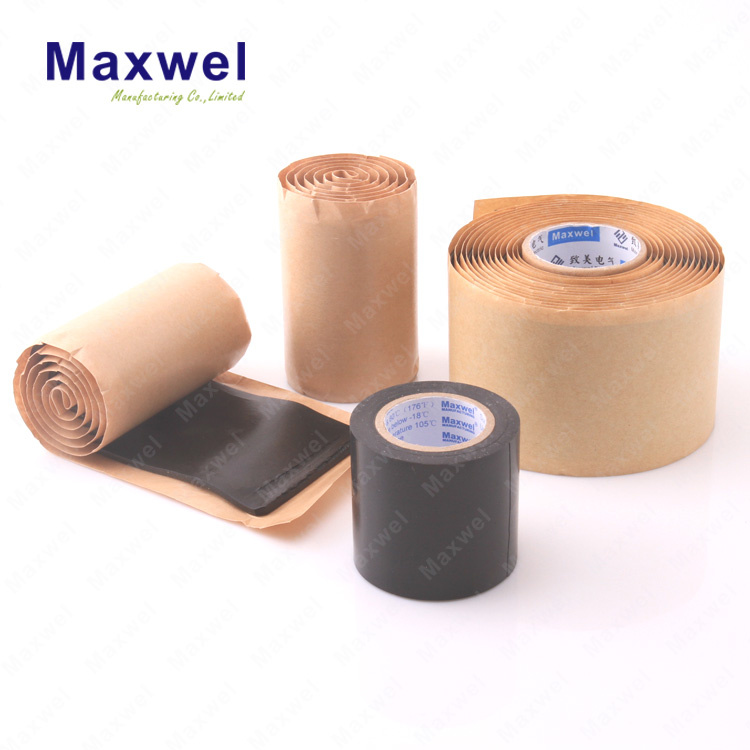

Good Quality with Butyl Insulation Tape

Prod Model:	50mm*3m
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	1000V
Thickness:	1.5mm, 1.65mm, 3.2mm
Length:	0.6m, 3m or as Per Request
Width:	50.8mm, 63.5mm
Butyl Tape:	Butyl Tape
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Organic Insulation
Material:	Rubber
Thermal Rating:	220 220
Maximum Voltage:	>100KV
Brand:	Maxwel

Product Description

Specifications

1. High quality butyl mastic tape
2. Made of Butyl Rubber
3. Good sealing properties
4. Stable quality
5. Strong adhesive




Mastic, Sealing and Insulating tapes

KE 28 Rubber Mastic Tape-Conformable self-fusing rubber electrical insulating and sealing tape, its consists of an EPR backing coated with affressive, temperature-stable mastic adhesive. It used for electrical insulating and moisture sealing applications.



Features



Conformable for application over irregular surfaces

Self fusing tape

Flexible over wide temperature range

Excellent weather and moisture resisitance



Applications



Primary electrical insulation for cable and wire connections rated up to 1000V

Primary electrical insulation for bus-bar connections rated up to 35KV

Size
50mm*3m

Material	Butyl Rubber
Adhesive	Mastic
Color	Black
Temperature	-15ºC~55ºC
Voltage	600V
Weather resistance temperature	-35ºC~80ºC
