| Prod Model: |
PCBA-18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Thickness: |
0.5oz-4oz |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Board Thickness: |
0.2mm |
| Min. Hole Size: |
0.1mm |
| Min. Line Width: |
0.25mm |
| Min. Line Spacing: |
0.25mm |
| Surface Finishing: |
HASL, HASL Lead Free, OSP, Immersi |
| Base Material: |
Fr-4, Cem-1, Cem-3, Hight Tg, Fr4 Halog |
| Layout: |
1-22 Layer |
| Impedance Control: |
Yes |
| Dielectric: |
FR-4 |
Product Description
Welcome To China Visit Our Company Wesbite !

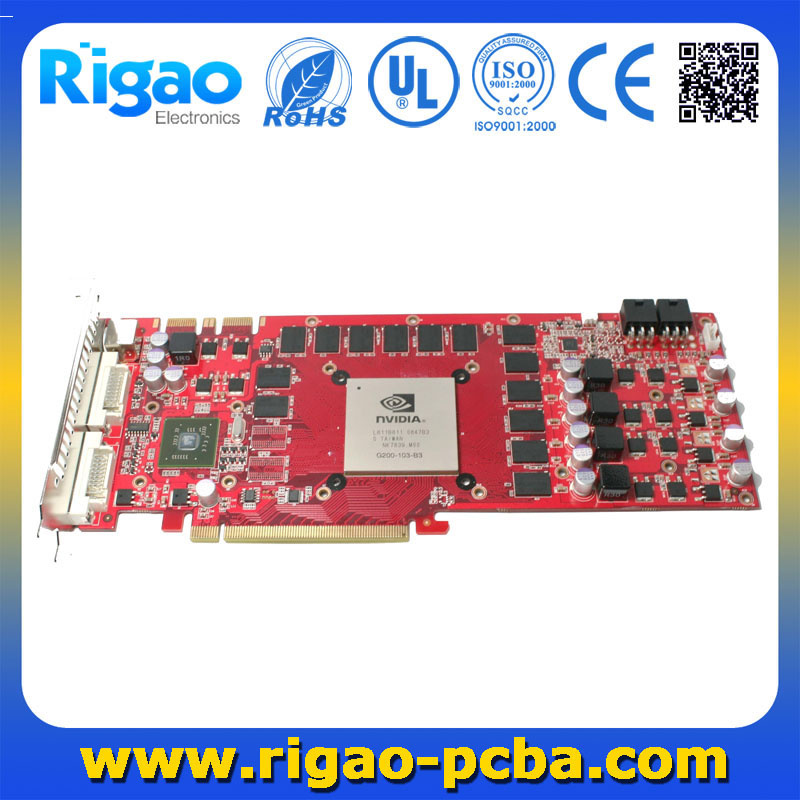

Good Quanity Reasonable Price Electronic Manufacture pcb&pcba
Shenzhen Electronics Co, . Ltd is focus on manufacturing Printed Circuit Boards(PCB) and PCBA
Assembly(PCBA). PCB, SMT, DIP and PCBA Assembly are our strengths.
Specifications
2 copper thickness single layer flex pcb board;
No MOQ;
OEM SMT&DIP Service;
1-22 Layer;
UL.ROSH SGS Certification.
Our aim: High quality, low cost & fast delivery for PCB and PCBA Assembly(PCBA).
Service: One-stop-service for PCB and PCBA Assembly(PCBA).
Verification: UL, ISO9001: 2000, RoHS
| Types: | Single-sided, Double-sided, Multi-layers (max 6 layers) and
Rigid-flexible PCB, Aluminium board |
| Surface Finishing: | HASL(LF), Gold plating, Electroless nickel immersion gold,
Immersion Tin, OSP(Entek) |
| Base Material: | Polyimide(Kapton), Polyester(PET), Aluminium, FR4 |
| Copper Foil: | ED/RA |
| Min. Line Width: | 2 mil |
| Min. Line Spacing: | 2 mil |
| Min. Hole Size: | 0.2mm |
| Max. Board Size: | 800x400mm |
| Min. Board Thickness: | 0.1mm |
| Min. Solder Mask Thickness: | 10um |
| Solder Mask Types: | Green, yellow, black, white, blue, red and clear |
| Profiling: | Punching, Routing, V-cut |
| Soldering Thermal Resistance: | 300°C/10 seconds |
| Peeling Strength: | ≥1.4kg/cm |
| Surface Resistance: | 105mΩ |
| Insulation Resistance: | 105mΩ |
| Dielectric Strength: | 9.8x105v/cm |
| Flammability: | UL-94V-0 |
| Performance Test: | 100% electrical and electricity performance test |
Product Description:
1. Single-sided PCB/PCBA Assembly, double side & multi-layer PCB/PCBA Assembly with competitive price, good quality and excellent service.
2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium batch production.
6.100% E-Test.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
