Goodwe on Gird Solar Power System Inverter 2000W

Name: Goodwe on Gird Solar Power System Inverter 2000W
Brand: all-electronics-online.com
SKU: 820612535
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	US $ 300-400/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW2000-NS

Product Description

First-Class Brand
Goodwe Create Adopting German Technology

2KW NS series one MPPT tracking one phase 220V GW2000-NS On grid inverter

Product Features
More than 10 ten security tests	Integrated DC open circuit switch	IP65 dustproof and waterproof level
Full load output	Low to 80V on-grid PV voltage	New range MPPT voltage
Support multiple communication modes	Integrated cooling technology without fan	30% weight optimization ,easy installation
20% volum optimization, saving space	Making up system with 3 pcs solar panels	Popular for household use

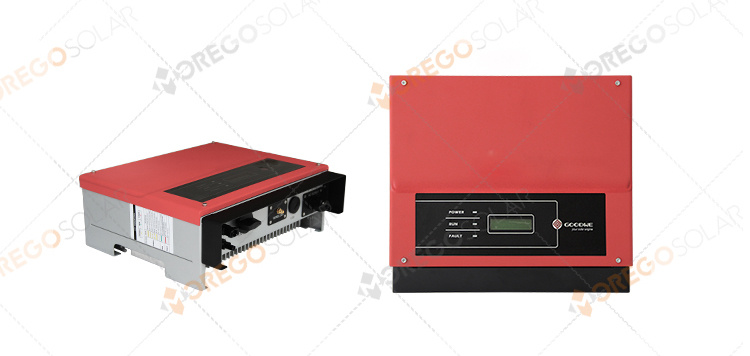

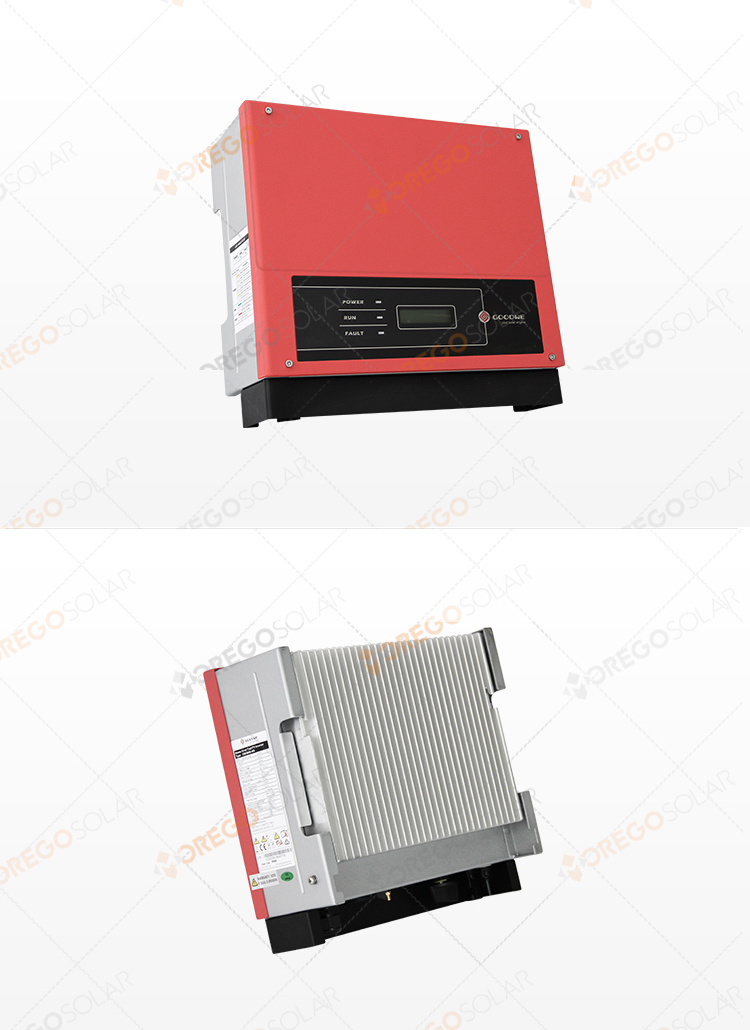

Real Shot

PARAMETER
Item	Model Parameter	GW2000-NS
PV String Input Data	Max. DC Input Power (W)	2600
	Max. DC Input Voltage (V)	500
	MPPT Range (V)	80~450
	Start-up Voltage (V)	80
	MPPT Range for Full Load (V)	230~450
	Nominal DC Input Voltage (V)	360
	Max. Input Current (A)	10
	Max. Short Current (A)	12.5
	No. of MPP Trackers	1
	No. of Input Strings per Tracker	1
AC Output Data	Nominal Output Power (W)	2000
	Max. Output Apparent Power (VA)	2000
	Nominal Output Voltage (V)	220/230
	Nominal Output Frequency (Hz)	50/60
	Max. Output Current (A)	10
	Output Power Factor	~1 (Adjustable from 0.8 leading to 0.8 )
	Output THDi (@Nominal Output)	<3%
Efficiency	Max. Efficiency	97%
	Euro Efficiency	96%
	MPPT Efficiency	99%
Protection	Residual Current Monitoring Protection	Integrated
	Anti-Islanding Protection	Integrated
	DC Switch	Integrated (Optional)
	AC over Current Protection	Integrated
	Insulation Resistance Monitoring	Integrated
Certification & Standards	Grid Regulation	NB/T 32004
	Safety Regulation	NB/T 32004
	EMC	NB/T 32004
Normal Parameter	Dimension (WxHxD)	344274.5128mm
	Weight (kg)	7.5
	Mounting	Wall Bracket
	Ambient Temperature Range	-25~60°C(>45ºC deloading)
	Relative Humidity	0~95%
	Max.Operating Altitude	≤4000m
	Protection Degree	IP65
	Topology	Transformerless
	Night Power Consumption (W)	<1
	Cooling Method	Natural Convection
	Noise Emision (dB)	<25
	Display	LCD
	Communication	RUSB2.0; WiFi/RS485 (Optional)
	Warranty(Year)	5

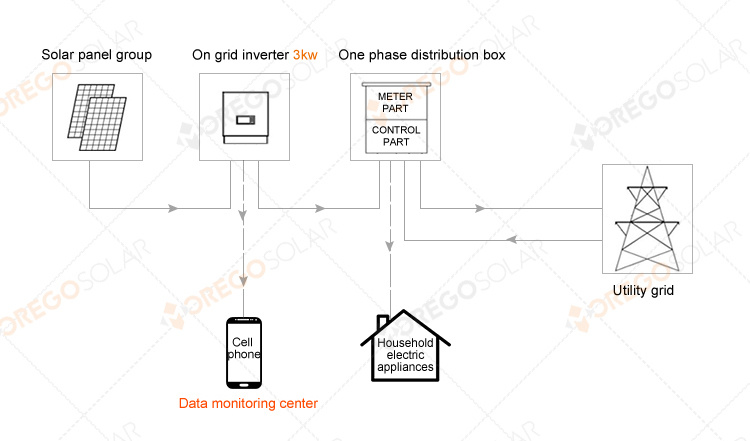

Installation Diagram

Goodwe

Adopt German design/Household type ranks second in the world and Business model is fifth of the global.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

The highest conversion efficiency of the full range of photovoltaic inverter products reached 98.8%, MPPT tracking efficiency is up to 99.9%,which has reached the world first-class level.

GoodWe inverters have been sold a great amount to Australia, Germany, Britain, France, Holland, Belgium, Denmark, Greece, Turkey, India, Malaysia, South Africa, Mexico, Brazil and other more than and 30 countries

Contact Me
Hi,I'm Bonnie Zheng, Thanks for your intersting.
Nanjing Moge New Energy Co., Ltd.
Mobile	0086-180 6146 8609
Tel	0086-25-5213 9610
Website	www.moge-solar.com

Nanjing Moge New Energy Co., Ltd is a leading supplier focusing on R&D, producing and sales of solar panel and solar power system. We are self-management of import and export.

Since establishment, Morego has earned good reputation by adhering to the enterprise value of " abide by moral, take the responsibility", and operation principle of " work diligently to achieve the best". When casting its own brand, Morego has also built long-term and intimate strategic co-operation relationship with world-class PV module manufacturer, such as Fortune Global 500 Hanwha and the largest PV module manufacturer Trina Solar, Yingli

And DAQO solar which isUnited States listed company.

Morego carries out the idea of " Quality is the lifeline of business" and takes "providing professional and customized service" as its missionall the time, focusing on supplying customized solar power systems and professional after-sale technical support and services to customers. Up to now, it hasearned the recognition from customers all over the world.

In Year 2017, Morego will pay more attention to product quality and service each customer with Pragmatic attitude. We have aspirations to build a high-end brand with "high quality product, large market share, excellent after service
