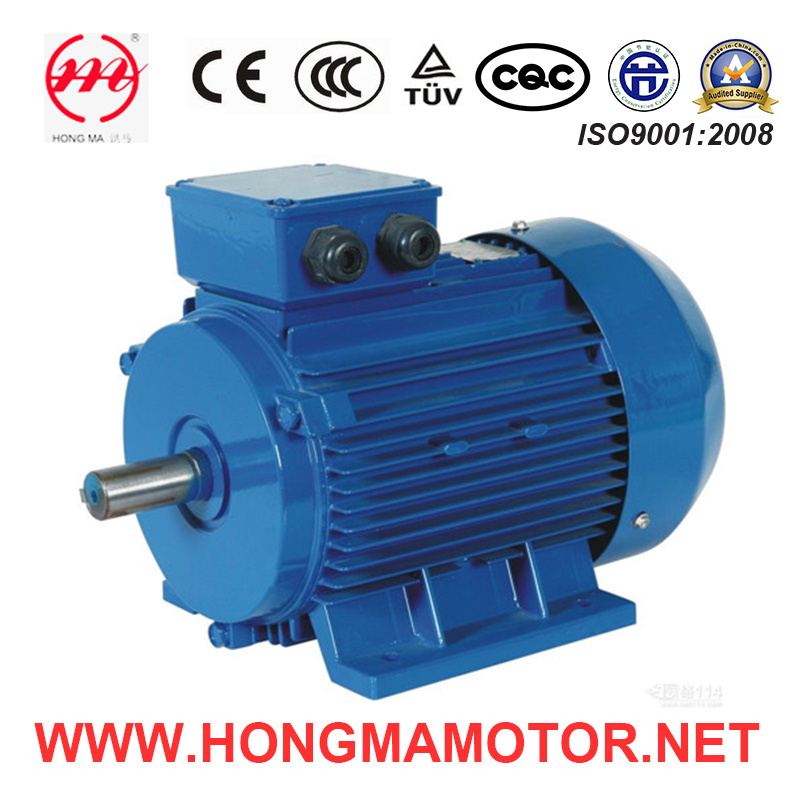

GOST Standard Motor with IEC/Three -Phase Asynchronous Electric Motor

Name: GOST Standard Motor with IEC/Three -Phase Asynchronous Electric Motor
Brand: all-electronics-online.com
SKU: 780779455
Availability: InStock
Rating: 4.7 (78 reviews)

Price:	US $ 27.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	63A-2-0.37
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50Hz
Phase:	Three-Phase
Rated Voltage:	380V
Packaging Details:	Standard Export Package
Application:	Household Appliances
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Species:	GOST R Standard
Number Of Poles:	2.4.6.8
Certification:	GOST
Brand:	Hongma

Product Description

GOST series three-phase asynchronous electric motors.

     GOST standard three-phase asynchronous electric motors, was introduced as an updated design, basically in conformity with IEC standard ,but also combining other eastern Europe. It is an ideal energy saving product. Moreover, it has other good features like high starting torque, unique appearance, convenient operation and so on.
     GOST Standard motors with the mounting dimension in accordance with standard IEC60034 and DIN42673, is identical to the performance and mounting dimension of GOST R51689-2000.
     GOST standard motors can be widely used in various kinds of general used machineries like compressors, fans, pumps, machine tools, mills, transportation, machines and so on, and can also be used in the hazardous areas such as oil and chemical industry, steel plants ,marine industry and mining industry.

Technical Data:

Type	Ouput		Speed	Rated current	Efficiency	Power factor	Is/In		Ts/Tn	Tmax/Tn	Noise		Weight
Type	KW	HP	r/min	A	%	COSΦ	Is/In		Ts/Tn	Tmax/Tn	LwdB(A)		KG
Poles:2 Frequency:50Hz Synchronous Speed:3000r/min Voltage:380V
71A2	0.75	1	2820	1.9	74	0.83		5.3	2.5	2.7	61		8.7
71B2	1.1	1.5	2800	2.5	77	0.86		5.2	2.6	2.8	61		10.5
80A2	1.5	2	2835	3.2	79	0.87		6.5	2.8	3.0	63		13.0
80B2	2.2	3	2820	4.6	82	0.87		6.5	3.2	3.4	63		15.0
90L2	3	4	2835	6.5	82	0.86		6.5	2.9	3.2	63		17.0
100S2	4	5.5	2845	8.7	83	0.84		7.0	3.4	4.0	66		20.5
100L2	5.5	7.5	2860	11	84	0.86		5.5	1.8	2.2	66		28.0
112M2	7.5	10	2895	15	87	0.89		7.0	2.5	3.2	69		49.0
132M2	11	15	2886	22	87	0.88		7.0	2.3	3.0	69		54.0
160S2	15	20	2940	30	88	0.86		7.5	2.0	3.2	75		116.0
160M2	18.5	25	2940	35	90	0.88		7.5	2.0	3.2	75		130.0
180S2	22	30	2940	42	90.5	0.89		7.5	2.1	3.5	79		150.0
180M2	30	40	2940	56	92	0.89		7.5	2.2	3.5	79		170.0
200M2	37	50	2940	70	91.5	0.88		7.5	2.3	3.2	82		230.0
200L2	45	60	2940	83	92	0.9		7.5	2.4	3.3	82		255.0
225M2	55	75	2950	100	93.5	0.9		7.5	2.3	4.0	84		320.0
250S2	75	100	2970	136	94	0.89		7.5	2.6	4.0	84		450.0
250M2	90	120	2970	162	94	0.9		7.5	2.7	4.0	86		530.0
280S2	110	150	2970	190	93	0.91		7.0	2.0	2.7	86		650.0
280M2	132	180	2970	230	93	0.91		7.0	2.0	2.7	86		700.0
315S2	160	215	2970	301	95.8	0.92		7.0	2.6	2.7	87		1170.0
315M2	200	270	2980	360	96.1	0.93		7.3	2.1	2.0	87		1460.0
355M2	250	340	2980	433	96	0.92		7.1	1.8	2.2	103		1900.0
355L2	315	430	2980	545	96	0.92		7.1	1.8	2.2	103		2300.0
Poles:4 Frequency:50Hz Synchronous Speed:1500r/min Voltage:380V
71A4	0.55	0.75	1400	1.5	72	0.8		5.5	2.5	2.6	56	8.4
71B4	0.75	1	1400	2.0	75	0.75		5.5	2.3	2.8	56	10.0
80A4	1.1	1.5	1420	2.7	77	0.8		5.5	2.3	2.6	53	14.0
80B4	1.5	2	1420	3.6	78.5	0.8		5.5	2.3	2.8	53	16.0
90L4	2.2	3	1390	5.2	78	0.82		5.0	2.2	2.6	53	17.0
100S4	3	4	1395	7.3	78	0.8		5.5	2.7	3.0	62	21.0
100L4	4	5.5	1435	9.4	83	0.78		6.6	2.8	2.6	62	37.0
112M4	5.5	7.5	1450	11.3	87	0.85		7.0	2.4	3.0	59	45.0
132S4	7.5	10	1455	15.6	88	0.83		7.0	2.8	3.2	59	52.0
132M4	11	15	1435	21.8	87	0.88		7.0	2.5	2.9	59	60.0
160S4	15	20	1460	29.4	89	0.87		7.0	1.9	2.9	67	125.0
160M4	18.5	25	1460	35.1	90	0.89		7.0	1.9	2.8	67	142.0
180S4	22	30	1460	41.7	91	0.88		7.0	2.1	3.0	73	160.0
180M4	30	40	1460	56.3	91	0.89		7.0	2.4	3.5	73	190.0
200M4	37	50	1460	70.2	92	0.87		7.5	2.2	3.2	76	230.0
200L4	45	60	1460	85.4	92	0.87		7.0	2.2	2.6	76	260.0
225M4	55	75	1470	103.8	92.5	0.87		7.5	2.2	3.5	75	325.0
250S4	75	100	1470	149.4	93	0.82		7.5	2.5	3.5	75	450.0
250M4	90	120	1480	169.0	93	0.87		7.5	2.5	3.5	80	495.0
280S4	110	150	1470	197.5	93	0.91		7.0	2.0	2.7	80	650.0
280M4	132	180	1470	237.0	93	0.91		7.0	2.0	2.7	80	700.0
315S4	160	215	1480	294.1	95	0.87		6.5	1.8	2.2	81	1000.0
315M4	200	270	1480	363.5	95	0.88		6.8	2.0	2.4	81	1200.0
355M4	250	340	1490	442.9	95.3	0.9		6.9	2.1	2.2	101	1700.0
355L4	315	430	1490	558.0	95.3	0.9		6.9	2.1	2.2	101	1900.0
Poles:6 Frequency:50Hz Synchronous Speed:1000r/min Voltage:380V
71A6	0.37	0.5	910	1.2	64	0.72		4.0	2.0	2.2	51	8.4
71B6	0.55	0.75	915	1.8	67	0.7		4.0	2.0	2.2	51	10.0
80A6	0.75	1	930	2.3	71	0.7		4.0	2.0	2.4	52	14.0
80B6	1.1	1.5	930	3.2	72	0.72		4.0	2.0	2.4	52	16.0
90L6	1.5	2	925	4.5	72	0.71		4.5	2.4	2.8	60	18.0
100L6	2.2	3	950	5.6	78	0.76		5.3	2.2	2.7	57	33.5
112MA6	3	4	960	7.0	83	0.79		5.9	2.2	2.6	56	41.0
112MB6	4	5.5	960	9.0	84	0.8		6.0	2.2	2.6	56	50.0
132S6	5.5	7.5	950	12.3	83	0.82		5.0	2.2	2.5	62	56.0
132M6	7.5	10	960	17.5	84.5	0.77		6.5	2.8	3.1	62	61.0
160S6	11	15	970	23.4	87	0.82		6.5	2.2	2.9	65	125.0
160M6	15	20	970	31.2	89	0.82		7.0	2.3	3.0	65	155.0
180M6	18.5	25	970	36.7	89	0.86		6.0	2.2	3.0	69	160.0
200M6	22	30	970	45.7	87	0.84		6.0	2.0	2.5	71	195.0
200L6	30	40	970	59.2	89.5	0.86		6.5	2.0	2.7	71	225.0
225M6	37	50	973	69.4	91	0.89		6.0	2.0	2.3	73	360.0
250S6	45	60	980	85.4	92	0.87		6.0	2.0	2.0	75	465.0
250M6	55	75	980	102.7	92.5	0.88		6.0	2.1	2.2	75	520.0
280S6	75	100	985	140.1	93.5	0.87		6.5	2.0	2.4	75	690.0
280M6	90	120	990	165.3	94	0.88		6.5	2.0	2.4	75	800.0
315S6	110	150	985	202.0	94	0.88		7.0	2.3	2.6	76	880.0
315M6	132	180	985	239.9	95	0.88		7.0	2.4	2.6	76	1050.0
355MA6	160	215	990	288.4	95.8	0.88		7.2	1.9	2.0	92	1550.0
355MB6	200	270	990	362.7	95.2	0.88		7.2	1.9	2.0	92	1600.0
355L6	250	340	990	453.9	95.1	0.88		7.2	1.9	2.0	92	1700.0
Poles:8 Frequency:50Hz Synchronous Speed:750r/min Voltage:380V
71B8	0.25	0.37	700	1.0	56	0.65		3	1.8	2	43	9
80A8	0.37	0.5	700	1.6	59	0.59		3	1.9	2.1	45	15
80B8	0.55	0.75	675	2.1	63	0.62		3.2	2.1	2.2	45	18
90LA8	0.75	1	705	2.8	67	0.6		3.3	2	2.3	49	23
90LB8	1.1	1.5	705	3.4	72	0.68		4.0	2.0	2.4	49	28.0
100L8	1.5	2	705	4.3	75	0.71		4.4	2.2	2.5	53	33.5
112MA8	2.2	3	705	5.9	75	0.75		4.0	1.7	2.3	55	46.0
112MB8	3	4	700	8.0	78	0.73		4.0	1.7	2.3	55	53.0
132S8	4	5.5	710	10.1	79	0.76		4.0	1.6	1.9	59	70.0
132M8	5.5	7.5	710	13.7	80	0.76		4.0	1.7	2.1	59	86.0
160S8	7.5	10	730	18.2	86	0.73		5.5	1.8	2.4	62	125.0
160M8	11	15	730	25.6	87	0.75		6.5	1.8	2.4	62	150.0
180M8	15	20	730	34.7	86.5	0.76		5.5	2.0	2.7	65	172.0
200M8	18.5	25	730	39.9	88	0.8		5.8	2.1	2.5	65	210.0
200L8	22	30	735	49.1	88.5	0.77		6.0	2.0	2.5	65	225.0
225M8	30	40	735	63.3	90	0.8		5.5	2.2	2.2	67	360.0
250S8	37	50	740	77.2	91	0.8		5.5	2.0	2.0	69	465.0
250M8	45	60	740	97.0	91.5	0.77		5.5	2.2	2.0	69	520.0
280S8	55	75	740	112.9	92.5	0.8		6.0	2.0	2.4	70	690.0
280M8	75	100	740	150.8	93.3	0.81		6.0	2.0	2.3	70	800.0
315S8	90	120	740	180.6	93.5	0.81		6.0	2.0	2.4	73	880.0
315M8	110	150	740	218.3	94.5	0.81		6.0	2.4	2.6	73	1050.0
355MA8	132	180	740	261.0	93.7	0.82		6.4	1.8	2.0	75	2000.0
355MB8	160	215	740	314.7	94.2	0.82		6.4	1.8	2.0	75	2150.0
355L8	200	270	740	387.4	94.5	0.83		6.4	1.8	2.0	75	2250.0

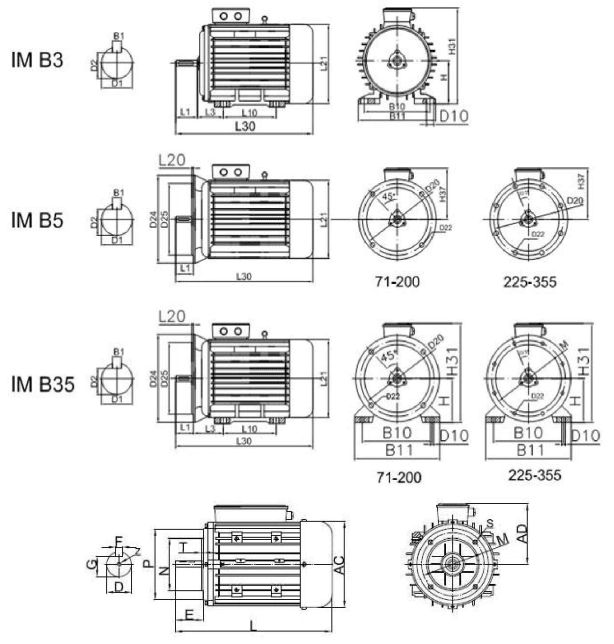

Mounting Dimensions

Type	Poles	Mounting Dimensions															Overall Dimensions
		GOST	B10	L10	L31	D1	L1	B1	D2	H	D10	D20	D25	D22	D24	L20	B11	H37	H31	L30
		IEC	A	B	C	D	E	F	G	H	K	M	N	S	P	T	AB	AD	HD	L
71	2.4,6,8P		112	90	45	19	40	6	12	71	7	165	130	12	200	3.5	138	115	186	270
80A	2.4.6 ,8P		125	100	50	22	50	6	19	80	10	165	130	12	200	3.5	160	125	205	300
80B	2.4,6,8P		125	100	50	22	50	6	19	80	10	165	130	12	200	3.5	160	125	205	320
90L	2.4.6 ,8P		140	125	56	24	50	8	19	90	10	215	180	15	250	4	174	145	235	350
100S	2.4,P		160	112	63	28	60	8	19	100	12	215	180	15	250	4	196	155	255	376
100L	2.4.6 ,8P		160	140	63	28	60	8	19	100	12	215	180	15	250	4	196	155	255	395
112MA	2.4.6 ,8P		190	140	70	32	80	10	28	112	12	265	230	19	300	4	230	178	290	475
112MB	2.4.6 ,8P		190	140	70	32	80	10	28	112	12	265	230	19	300	4	230	178	290	505
132S	4,6,8P		216	140	89	38	80	10	33.3	132	12	300	250	19	350	5	260	213	345	505
132M	2.4.6P		216	178	89	38	80	10	33.3	132	12	300	250	19	350	5	260	213	345	525
160S	2,4,6,8P		254	178	108	48	110	14	42.5	160	15	300	250	19	350	5	304	255	415	620
160M	2,4,6,8P		254	210	108	48	110	14	42.5	160	15	300	250	19	350	5	304	255	415	660
180S	2,4,6,8P		279	203	121	48	110	14	42.5	180	15	350	300	19	400	5	330	265	445	700
180M	2,4,6,8P		279	241	121	48	110	14	42.5	180	15	350	300	19	400	5	330	265	445	740
200M	2,4,6,8P		318	267	133	55	110	16	49	200	19	400	350	19	450	5	390	300	500	770
200L	2,4,6,8P		318	305	133	55	110	16	49	200	19	400	350	19	450	5	390	300	500	820
225M	2P		356	311	149	55	110	16	49	225	19	500	450	19	550	5	438	325	550	910
225M	2,4,6,8P		356	311	149	65	140	18	58	225	19	500	450	19	550	5	438	325	550	910
250S	2,4,6,8P		406	311	168	65	140	18	58	250	24	500	450	19	550	5	482	360	610	910
250M	2,4,6,8P		406	349	168	65	140	18	58	250	24	500	450	19	550	5	482	360	610	950
280S	2,4,6,8P		457	368	190	75	140	20	67.5	280	24	600	550	24	660	6	520	400	680	985
280M	2,4,6,8P		457	419	190	75	140	20	67.5	280	24	600	550	24	660	6	520	400	680	1035
315S	2P		508	406	216	65	140	18	58	315	28	600	550	24	660	6	635	530	845	1160
315S	4.6 ,8P		508	406	216	80	170	22	71	315	28	600	550	24	660	6	635	530	845	1270
315M	2P		508	457	216	65	140	18	58	315	28	600	550	24	660	6	635	530	845	1190
315M	4,6,8P		508	457	216	80	170	22	71	315	28	600	550	24	660	6	635	530	845	1300
355M	2P		610	500	254	75	140	20	67.5	355	28	740	680	24	800	6	730	655	1010	1500
355M	4.6 ,8P		610	500	254	95	170	25	86	355	28	740	680	24	800	6	730	655	1010	1530
355L	2P		610	560	254	75	140	20	67.5	355	28	740	680	24	800	6	730	655	1010	1500
355L	4.6.8P		610	560	254	95	170	25	86	355	28	740	680	24	800	6	730	655	1010	1530
