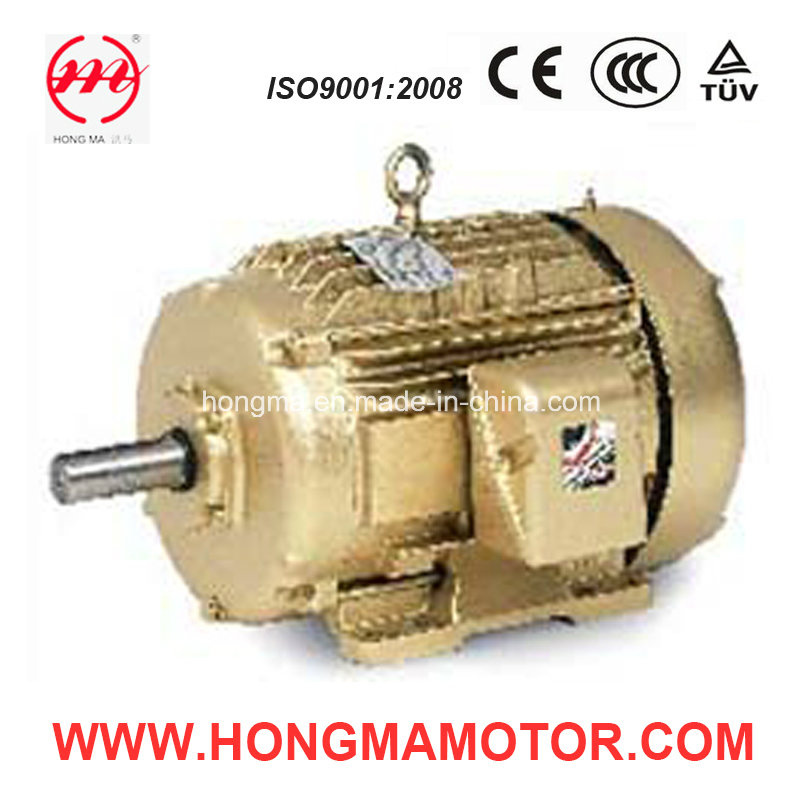

GOST Three Phase Standard Asynchronous Induction High Efficiency Electric Motor 112mA-6-3kw

Name: GOST Three Phase Standard Asynchronous Induction High Efficiency Electric Motor 112mA-6-3kw
Brand: all-electronics-online.com
SKU: 783225445
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 113-128/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HMGOST Frame Size 112 3KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	112mm
Frequency:	50Hz, 60Hz
Output Power:	3kw
Voltage:	220/380V, 380/660V, 230/400V, 400V/690V
Insulation Class:	B\F\H
Protection:	IP55
Cooling Method:	IC411
Mounting Type:	B3, B5, B14, B35multi and Pad Mounting
Wire:	100% Copper Wire
Number Of Stator:	Three-Phase
Function:	Control
Certification:	CE NEMA
Brand:	Hongma

Product Description

HMGOST standard three-phase asynchronous electric motors, was introduced as an updated design, basically in conformity with IEC standard ,but also combining other eastern Europe. It is an ideal energy saving product. Moreover, it has other good features like high starting torque, unique appearance, convenient operation and so on.

HMGOST standard motors with the mounting dimension in accordance with standard IEC60034 and DIN42673, is identical to the performance and mounting dimension of GOST R51689-2000.

HMGOST standard motors can be widely used in various kinds of general used machineries like compressors, fans, pumps, machine tools, mills, transportation, machines and so on, and can also be used in the hazardous areas such as oil and chemical industry, steel plants ,marine industry and mining industry.

1. 100% output with 100% copper winding;
2. Hongma customer's requirement & customer's drawing;
3. Different size of flange to fit for different device, customized flange is workable.
4. All materials are brand-NEW.

Technical Data

Frame Size	112mm
Frequency	50Hz, 60Hz
Output Power	3KW
Voltage	208-230/460 V
Insulation Class	B,F,H
Protection	IP55
Cooling Method	IC411
Wire	100% Copper Wire
Mounting Type	B3,B5,B14,B35multi and pad mounting
Pole	6

FENGHUA CITY ELECTRICAL MOTOR CO., LTD
Add: NO.4 Changhe North Rd, Fangqiao, Fenghua, Ningbo,
Zhejiang Province, P. R. CHINA
Tel: +574 55339278
Fax:+574 8865 0988
Mob: +86 15867838828
Website: www.hongmamotor.net

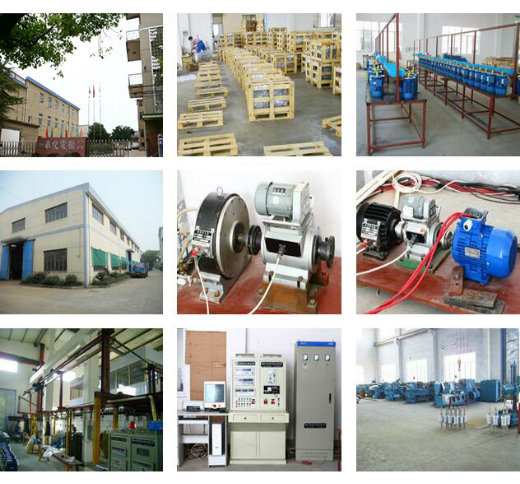

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
