| Prod Model: |
GPKH201, GPKH301, EPKH201, EPKH301 |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Manufacturers: |
Haiyan Jinhan Electronic Technology Co.,Ltd |
| Type: |
Watt/Active Transducer |
| MOQ: |
1piece |
| Production Process: |
Integration |
| Shell Material: |
Beige Plastic-Shell |
| Dimension: |
73*149.5*119 |
| N.W: |
About 1kg |
| Freight: |
by Air |
| Delivery Time: |
1 Week |
| Installation: |
35mm DIN Sliding-Way |

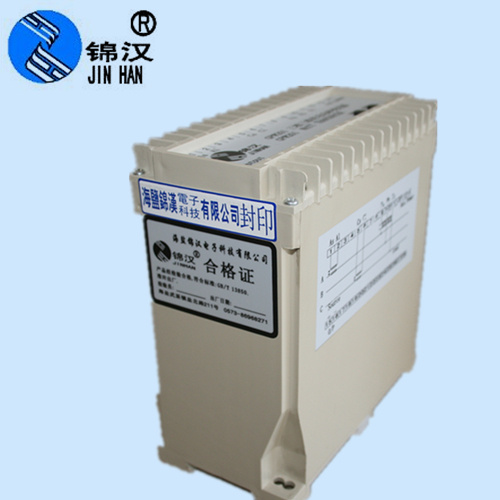

Product Description
GPKH201 GPKH301 Varhour Transducer1. Summarize:Electric quantity transducer is a measuring instrument that it makes measurand electric quantity (AC Current/Voltage Active Power Reactive Power Active Energy Reactive Energy Power Line Frequency.Phase Angle Power Factor DC Current/Voltage) turn into DC current or voltage output that accroding to proportional linearity . It widely applied to electric measurement autocontrol and system altitude that in electric power Coal metallurgy railway and so on.
Applied Standards & Rules
Measuring and conversion IEC 688 / 1992 - 04
Dielectrical strength IEC 688 2KVac / 1 min.
Surge and Impulse test ANSI C37.90 / 1989
IEC 255-3 (1989) 4KV 1.2 x 50 us
2.ModelsGPKH200 - 3 phase 3 wire balanced load var & var-hour transducer
GPKH300 - 3 phase 4 wire balanced load var & var-hour transducer
GPKH201 - 3 phase 3 wire unbalanced load var & var-hour transducer
GPKH301 - 3 phase 4 wire unbalanced load var & var-hour transducer
Models that can be replaced with each other:
EPKH200 - 3 phase 3 wire balanced load var & var-hour transducer
EPKH300 - 3 phase 4 wire balanced load var & var-hour transducer
EPKH201 - 3 phase 3 wire unbalanced load var & var-hour transducer
EPKH301 - 3 phase 4 wire unbalanced load var & var-hour transducer

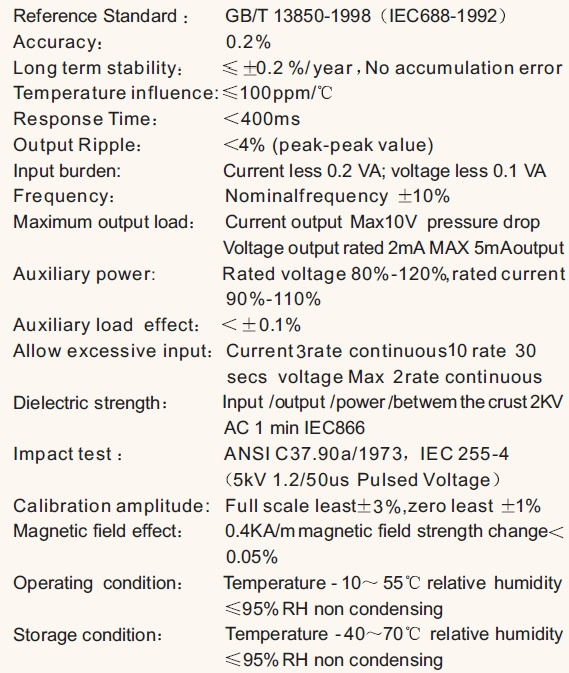

3.Technical Specifications
3.Models&Specifications

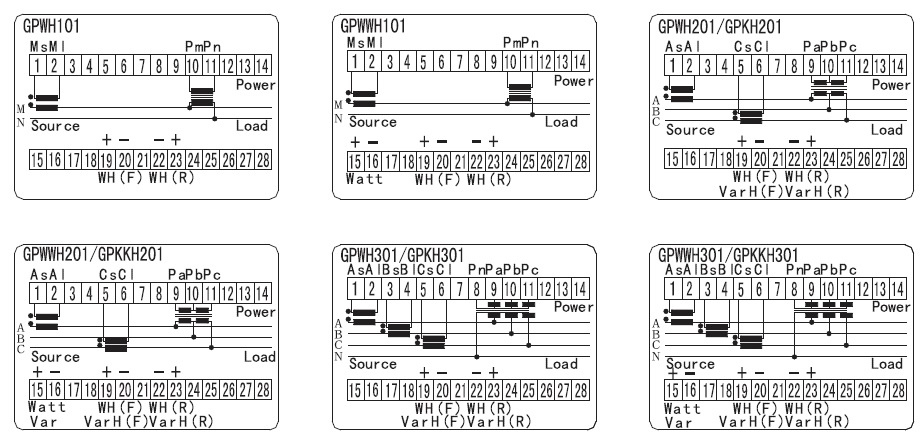

4.Terminal Connection

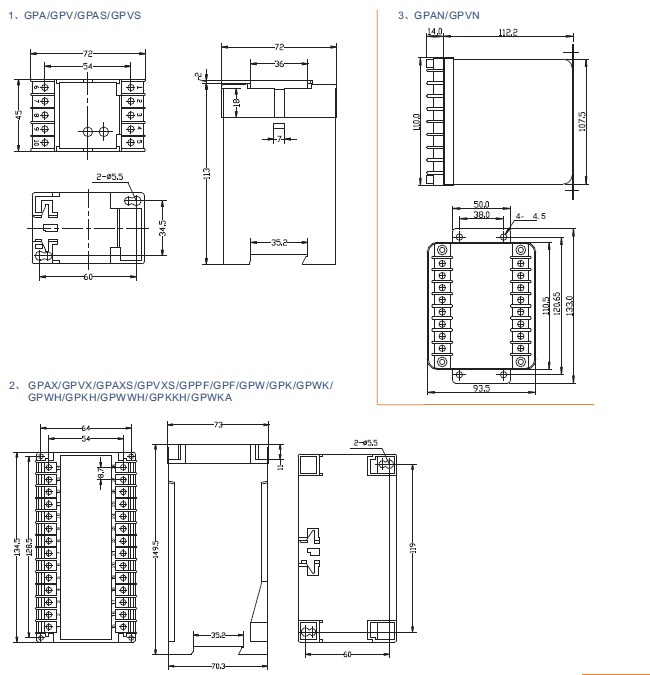

5.Dimensional Drawings
Parameter:
| Vn:Input Voltage | Vn
| V1
100V
80~120V | V2
220V
180~300V | On: Output |
| An:Input Current | An
| A1
1A
0~1.2A | A2
5A
0~6A | 01
0~±1mA | 02
0~±20mA | 03
4~20mA |
04
0~±5mA | 05
0~±10mA | 06
4~12~20mA |
| Fn:Input Frequency | Fn
| F1
50Hz
45~55Hz | F2
60Hz
55~65Hz |
07
0~±1V | 08
0~±5V | 09
0~±10V |
| Pn:Auxiliary Power | Pn | P1
AC100V | P2
AC 220V |
010
2~10V | 011
1~5V | 012
1~3~5V |
Model and Ordering
GPKH301-Vn-An-Fn-Fn-Pn-On
If you have any questions about this,welcome to contact us.
We are all at service.
Model NO.GPKH301
Type:Var/Reactive Transmitter/Transducer
Wire-Assembly Type:Three Phase Four wires Transmitter
Kind:New-Type Transmitter/Transducer
Accuracy Grade:0.5G
Certification:ISO
Customized:Customized
Phase:Three
The model of this series is shown in the following table :
| Product | Model No. | Swap model |
| AC current transducer(1 unit of avg. to rms conversion) | GPA | EPA |
| AC current transducer(1 unit of avg. to rms conversion) | GPV | EPV |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPA2 | EPA2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPV2 | EPV2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPAX2 | EPAX2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPVX2 | EPVX2 |
| AC current transducer(1 unit of avg. to rms self-powered) | GPAS | EPAS |
| AC current transducer(1 unit of avg. to rms self-powered) | GPVS | EPVS |
| AC current transducer(3 unit of avg. to rms self-powered) | GPAXS | EPAXS |
| AC current transducer(3 unit of avg. to rms self-powered) | GPVXS | EPVXS |
| AC current transducer(TRMS conversion ) | GPAR | EPAR |
| AC current transducer(TRMS conversion ) | GPVR | EPVR |
| AC current transducer(2 output) | GPAT | EPAT |
| AC current transducer(2 output) | GPVT | EPVT |
| AC current transducer(3 unit of avg. to rms conversion) | GPAX | EPAX |
| AC current transducer(3 unit of avg. to rms conversion) | GPVX | EPVX |
| 3 phase 3 wire reactive power transducer | GPK201 | EPK201 |
| 3 phase 3 wire reactive power transducer(2 output) | GPKT201 | EPKT201 |
| 3 phase 3 wire Active power&reactive power transducer | GPWK201 | EPWK201 |
| 3 phase 3 wire Active power transducer | GPKT201 | EPKT201 |
| 3 phase 3 wire Active power transducer(2 output) | GPWT201 | EPWT201 |
| 3 phase 3 wire wate&var¤t transducer | GPWKA201 | EPWKA201 |
| 3 phase 4 wire reactive power transducer | GPK301 | EPK301 |
| 3 phase 4 wire reactive power transducer(2 output) | GPKT301 | EPKT301 |
| 3 phase 4 wire Active power&reactive power transducer | GPWK301 | EPWK301 |
| 3 phase 4 wire Active power transducer | GPKT301 | EPKT301 |
| 3 phase 4 wire Active power transducer(2 output) | GPWT301 | EPWT301 |
| 3 phase 4 wire wate&var¤t transducer | GPWKA301 | EPWKA301 |
| 3 phase 3 wire Active energy transmitter | GPWH201 | EPWH201 |
| 3 phase 3 wire Reactive energy transmitter | GPKH201 | EPKH201 |
| 3 phase 3 wire Active power+energy transducer | GPWWH201 | EPWWH201 |
| 3 phase 3 wire Reactive power+energy transducer | GPKKH201 | EPKKH201 |
| 3 phase 4 wire Active energy transduce | GPWH301 | EPWH301 |
| 3 phase 4 wire Reactive energy transduce | GPKH301 | EPKH301 |
| 3 phase 4 wire Active power+energy transducer | GPWWH301 | EPWWH301 |
| 3 phase 4 wire Reactive power+energy transducer | GPKKH301 | EPKKH301 |
| Frequency transducer | GPF | EPF |
| Power factor transducers | GPPF | EPPF |
| Dc isolation transmitter | GPD | EPD |
| Dual output dc isolation transmitter | GPDT | EPDT |
| Power controller | GPS | EPS |
