| Prod Model: |
EPF |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Manufacturers: |
Haiyan Jinhan Electronic Technology Co.,Ltd |
| MOQ: |
1 Piece |
| Export Markets: |
Global |
| Production Process: |
Integration |
| Shell Material: |
Beige Plastic-Shel |
| Dimension: |
149.5*73*119 |
| N.W: |
About 1kg |
| Freight: |
by Air |
| Delivery Time: |
1 Week |
| Installation: |
35mm DIN Sliding-Way |
Product Description

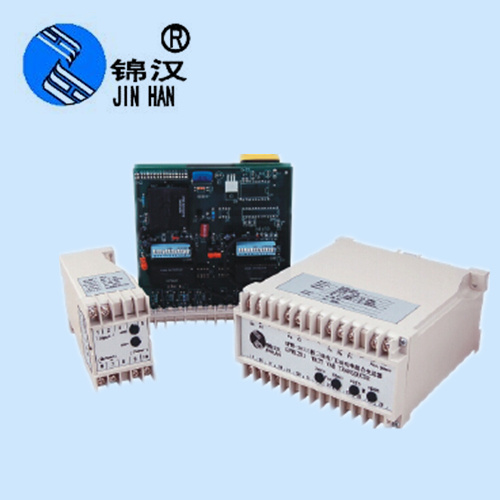

GPPF,EPPF Power Factor Transducer 1. Summarize:Electric quantity transducer is a measuring instrument that it makes measurand electric quantity (AC Current/Voltage Active Power Reactive Power Active Energy Reactive Energy Power Line Frequency.Phase Angle Power Factor DC Current/Voltage) turn into DC current or voltage output that accroding to proportional linearity . It widely applied to electric measurement autocontrol and system altitude that in electric power Coal metallurgy railway and so on.
The zero-crossing detector modulation conversion principle is used to produce a corresponding linear DC output signal proportional to true power factor of the power system. The transducers can be use in a single or three phase system.
Applied Standards & Rules
Measuring and conversion IEC 688 / 1992 - 04
Dielectrical strength IEC 688 2KVac / 1 min.
Surge and Impulse test ANSI C37.90 / 1989
IEC 255-3 (1989) 4KV 1.2 x 50 us2.Models GPPF100 - 1 phase 2 wire / 1 phase 3 wire balance load
GPPF200 - 3 phase 3 wire/ 3 phase 4 wire balance load
Models that can be replaced with each other:
EPPF100 - 1 phase 2 wire / 1 phase 3 wire balance load
EPPF200 - 3 phase 3 wire/ 3 phase 4 wire balance load3.Technical Specifications
3.Models&Specifications

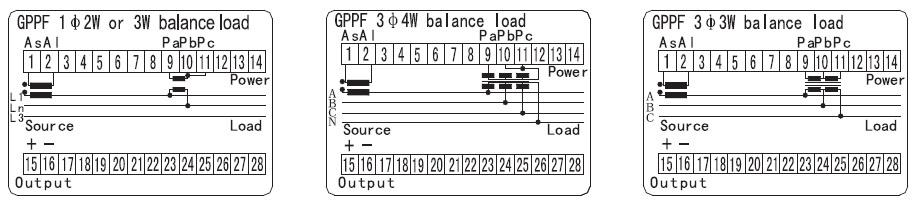

4.Terminal Connection
5.Dimensional Drawings
Main functions and Characteristics
Transforms the measured signal to a voltage, after HCNR200 linearity photodiode transforms to DC output which has extremely good linear relations with the measured signal, uses the computer aided designed, the principle is simply, circuitry designed concisely, reliability is highly and installment is conveniently.
Notice
Operating environment should not have the electric dust and gas of corrosive metal and destruction insulation existence, the altitude should less than 2,500 meters.
The Zero and CAL have been adjusted when products left factory. Please don't adjust at will.
Paramerers:
Vn:
Input Current | Fn:Input Frequency | Bn:Frequency Range | Pn:Auxiliary Power | On: Output |
30-600V | F1
50Hz | B1
±0.5Hz | B2
±1Hz | P1
AC 100V
PD1* | O1
0~1mA | O2
0~20mA | O3
4~20mA |
O4
0~5mA | O5
0~10mA | |
F2
60Hz | B3
±2Hz | B4
±5Hz | P2
400Hz
PD2* |
O7
0~1V | O8
0~5V | O9
0~10V |
F3
400Hz | B5
±10Hz | B6 |
3.5 VA |
O10
2~10V | O11
1~5V | O13 |
Model type:
EPF-Vn-Fn-Bn-Pn-On
Ex:
1. EPF-F1-P2-08/B2
Frequency:49-51Hz
Power:AC 220V
Output:0-5V/49-51Hz
Accuracy:0.5%RO
Customized:Customized
The model of this series is shown in the following table :| Product | Model No. | Swap model |
| AC current transducer(1 unit of avg. to rms conversion) | GPA | EPA |
| AC current transducer(1 unit of avg. to rms conversion) | GPV | EPV |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPA2 | EPA2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPV2 | EPV2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPAX2 | EPAX2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPVX2 | EPVX2 |
| AC current transducer(1 unit of avg. to rms self-powered) | GPAS | EPAS |
| AC current transducer(1 unit of avg. to rms self-powered) | GPVS | EPVS |
| AC current transducer(3 unit of avg. to rms self-powered) | GPAXS | EPAXS |
| AC current transducer(3 unit of avg. to rms self-powered) | GPVXS | EPVXS |
| AC current transducer(TRMS conversion ) | GPAR | EPAR |
| AC current transducer(TRMS conversion ) | GPVR | EPVR |
| AC current transducer(2 output) | GPAT | EPAT |
| AC current transducer(2 output) | GPVT | EPVT |
| AC current transducer(3 unit of avg. to rms conversion) | GPAX | EPAX |
| AC current transducer(3 unit of avg. to rms conversion) | GPVX | EPVX |
| 3 phase 3 wire reactive power transducer | GPK201 | EPK201 |
| 3 phase 3 wire reactive power transducer(2 output) | GPKT201 | EPKT201 |
| 3 phase 3 wire Active power&reactive power transducer | GPWK201 | EPWK201 |
| 3 phase 3 wire Active power transducer | GPKT201 | EPKT201 |
| 3 phase 3 wire Active power transducer(2 output) | GPWT201 | EPWT201 |
| 3 phase 3 wire wate&var¤t transducer | GPWKA201 | EPWKA201 |
| 3 phase 4 wire reactive power transducer | GPK301 | EPK301 |
| 3 phase 4 wire reactive power transducer(2 output) | GPKT301 | EPKT301 |
| 3 phase 4 wire Active power&reactive power transducer | GPWK301 | EPWK301 |
| 3 phase 4 wire Active power transducer | GPKT301 | EPKT301 |
| 3 phase 4 wire Active power transducer(2 output) | GPWT301 | EPWT301 |
| 3 phase 4 wire wate&var¤t transducer | GPWKA301 | EPWKA301 |
| 3 phase 3 wire Active energy transmitter | GPWH201 | EPWH201 |
| 3 phase 3 wire Reactive energy transmitter | GPKH201 | EPKH201 |
| 3 phase 3 wire Active power+energy transducer | GPWWH201 | EPWWH201 |
| 3 phase 3 wire Reactive power+energy transducer | GPKKH201 | EPKKH201 |
| 3 phase 4 wire Active energy transduce | GPWH301 | EPWH301 |
| 3 phase 4 wire Reactive energy transduce | GPKH301 | EPKH301 |
| 3 phase 4 wire Active power+energy transducer | GPWWH301 | EPWWH301 |
| 3 phase 4 wire Reactive power+energy transducer | GPKKH301 | EPKKH301 |
| Frequency transducer | GPF | EPF |
| Power factor transducers | GPPF | EPPF |
| Dc isolation transmitter | GPD | EPD |
| Dual output dc isolation transmitter | GPDT | EPDT |
| Power controller | GPS | EPS |
