| Prod Model: |
tk103 car tracking system |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE FCC ISO |
| Weight: |
120g |
| Size: |
83*54*26mm |
| Delivery Time: |
1-3 Working Days |
| Main Features: |
GPS Tracking, Cut Engine, Voice Monitor |
| Feature: |
Acc / Door Alarm, Fuel Sensor, Engine Cut off |
| Car Tracking System: |
SMS, Web Platform, Phone APP |
| Manufacturer Or Not: |
Yes |
| Function: |
Vehicle Fleet/Logistics/Vehicle Rental (12-24V) |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
103A/B |
| Screen Size: |
No Screen |
| Chip: |
Ns1315 |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

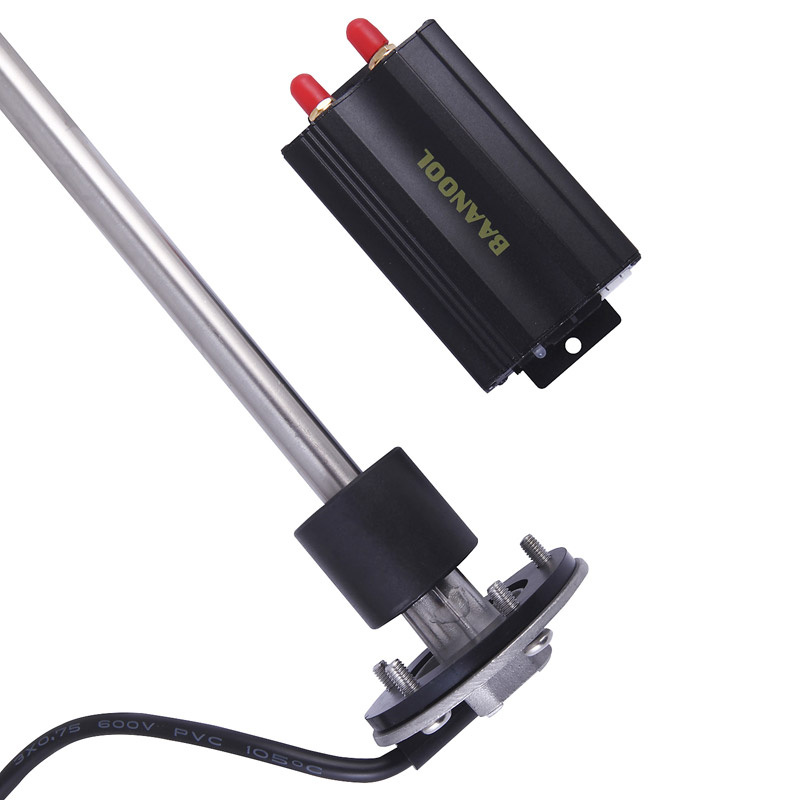

Model: GPS tracker TK-103A B,TK103A+ B+
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
Support both GPS & LBS (Location based service).
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support configuration by remote terminal.
Support for point-to-point, point to group, group-to-group monitoring.
Set multiple functions of anti-theft, positioning, monitoring surveillance, emergency alarms and management in its entirety.
Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on APP/web platform tracking
New functions:
dual Sim Card, fuel sensor,central lock system
3. Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
4 tracking solutions :
- SMS tracking by calling , return google map link
- Absolute street address by sms
- Free pc based tracking application
- Optional web server www.gpstrackerxy.com
What is in the box :
1x GPS unit
1x GPS antenna
1x GSM antenna
1 x MIC
1 x Harness
1x Relay
1 x CD
1 x Manual
(Remote controller is optional )
13 languages web platform : www.gpstrackerxy.com ( demo ID :demo ,password:8888 ) .
Specifications
Content | Specification |
| DIM. | 87*54*26mm |
| Weight | 130g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V |
| Backup battery | Chargeable 3.7V 500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
