| Prod Model: |

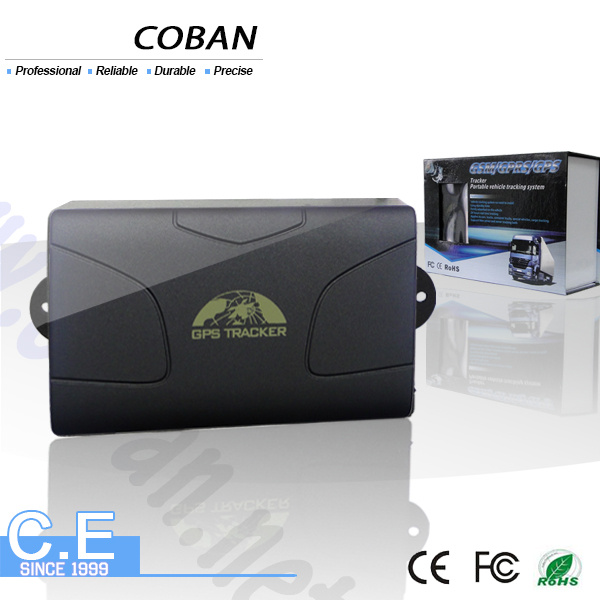

104 GPS Tracker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
6000 mAh |
| Standby Time: |
60 Days |
| Water Proof: |
Yes |
| Magnetic: |
Yes |
| OEM Or Not: |
Yes |
| Certificate: |
CE FCC ISO |
| Packaging: |
40 Unit /Carton |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Feature: |
Waterproof, Magnetic, Long Time Standby Battery |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Chip: |
SiRF |
| Model: |
104 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE FCC ISO |
Product Description
-Waterproof shell
- Built-in large capacity 6000MA battery, long standby time of 100 days.
- Powerful magnets to absorb to vehicle firmly(Optional)
-Real-time tracking, retrieve of lost vehicles, cargo.
- Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
-Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
- Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
-Support external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using. -Track with limited times upon time interval
-Track with unlimited times upon time interval
- Smart track upon time and distance interval
-Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
-Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
-Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
-Low battery alarm function
-Remote Engine-stop and Resume.
-Check the vehicle status
-Multi area management
-Automatic update positions of vehicle turns
-Data logging
-Forward third parties message to authorized phone number and charge inquiry
-Configure parameters by USB
-Less GPRS traffic
-GPS drift suppression
Tracking solutions
1. SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
2. Get absolute address by SMS
3. PC Installation software tracking.
4. Web server online tracking www.gpstrackerxy.com
Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA± 1mA |
| GSM operating Current | 54mA± 3mA |
| GPRS Current(data transfer) | 60mA± 5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A± 0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
