| Prod Model: |
GPS304B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Feature: |
Waterproof, Internal Antenna, Tail Light |
| Certificate: |
CE FCC |
| Tracking Solutions: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Arm Alarms: |
Acc, Shock Sensor Alarm |
| GSM Quad Band: |
850/900/1800/1900MHz |
| Waterproof: |
IP66 |
| Absolute Street Address: |
by SMS |
| Alarms: |
Low Battery off, External Power off Alarm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
GPS304A |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

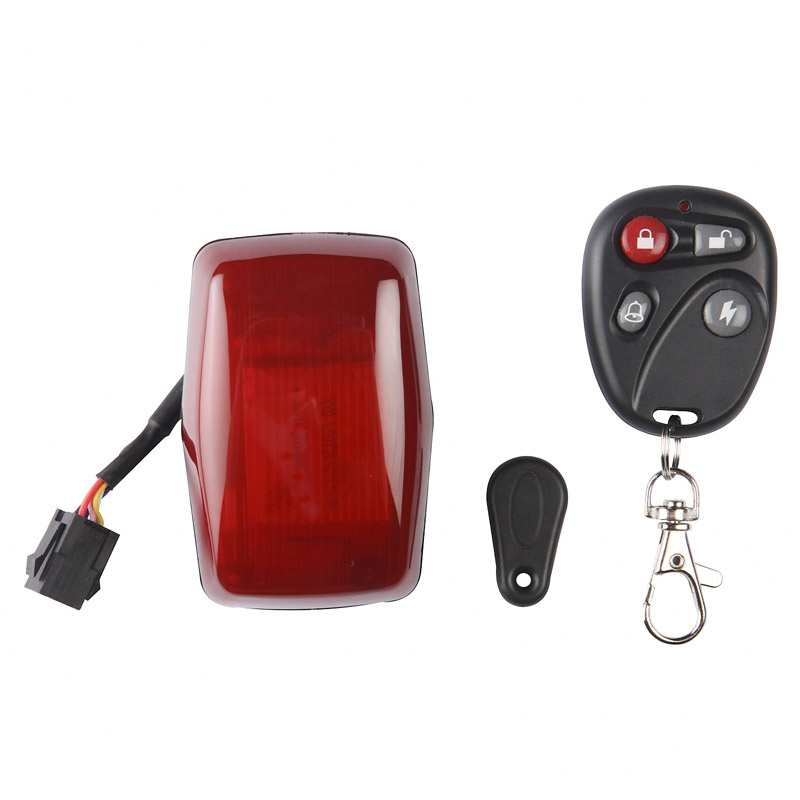

Model: GPS tracker GPS304
It is based on GSM/GPRS(850/900/1800/1900MHz) and GPS satillite global position system.
Applying directions: Motorcycle, Electric bike
Technology parameter:
*Network: GSM/GPRS
*Band: 850/900/1800/1900MHz
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix: Cold status 45s, Hot status 1s
*Battery: Rechargeable 3.7V 1030mAh Li-ion battery
Main features:
1. Internal GSM/GPS antenna.
2. Taillights shape, easy to hide, waterproof design.
3. SOS panic button.
4. Geofence, movement alarm, over speed alarm.
5. Arm/Disarm(ACC/Shake alarm )
6. Remotely shut down engine.
7. Realtime google maps.
8. Get absolute address with street name by SMS.
9. Show lat/long and google map link on mobile.
10. Support 5 authorized numbers.
How does the GPS Tracker work?
All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works Anywhere in the world.
The unit can be powered by both internal battery and automotive battery, and should be installed A motorbike.
Here is a small list of what it can do for you and your motorcycle:
1. Track on Demand - Replies with a TXT message of current latitude, longitude, speed, and time, As well as an Internet map link to your cellphone to show you exactly where the GPS tracker/your Vehicle is.
2. Geo-fencing control - When the vehicle moves in/out the preset scope, it will send an SMS alarmTo the authorized phone numbers.
3. Movement and Speed Alert: --The tracker can warn you with SMS message when the vehicle starts toMove from a stationary status, or when the vehicle is moving faster than a preset speed.
4. Shake alert - The tracker can detect shake and send the shake alert SMS to authorized mobilePhones.
5. Voice surveillance - It has in-built MIC for voice monitoring. You can call the GPS trackerAnd hear the voice around the tracker.
6. Stop the Engine- You can send an SMS message to the tracker to cut off the gas and batteryPower, so the engine will remain in an immobilized stated until your remove the alarm status.
7. GPRS- With a GPRS enabled SIM card, you can monitor real-time movement of your vehicle with theSupplied software on your computer.
Specifications:
Content |
Specs |
Dim. |
7.5×5.0×2.4cm |
Weight |
75g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS accuracy |
5m |
Time To First Fix |
Cold status 45s
Warm status 35s
Hot status 1s |
Car charger |
12V~24V |
battery |
Chargeable 3.7V 1000mAh Polymer Li-Battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +70°C |
Humidity |
5%--95% non-condensing |
This platform enables you to create management account, subaccount. Thousands of GPS units canBe tracked on platform in the meantime.
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500PCS or customized order, lead time will be 5-7 days after the receipt of Payment. Please contact our sales to make sure the current inventory.
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
