| Prod Model: |
vehicle gps tracking system GPS103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Weight: |
120g |
| Tracking Way: |
Google Map or Our Web Platform |
| Warranty Time: |
12 Months |
| GPRS Protocol Communication: |
TCP UDP |
| Alarms Under Arm State: |
Acc, Door, Shock Sensor Alarm |
| OEM&ODM Service: |
Customize Logo and Brand.Firmware Modification |
| Model No: |
Car Rastreador De GPS103 |
| Arm/Disarm: |
Acc/Door/Shock Sensor Alarm |
| Fuel Sensor Length: |
Customized, up to Fuel Tank Height |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Screen Size: |
No Screen |
| Chip: |
No Screen |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description
GPRS GSM vehicle gps tracking system with vibration sensor alarm1. fuel level monitor
2.Real time tracking by SMS and Web platform,
3.door alarm, ACC alarm, shock sensor alarm
4.car gps tracking system
5.one year warranty, coban manufacture price
Model: GPS103A/B
Product Description This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Main Function Description1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12.
Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Specifications:
Content | specifications |
| DIM. | 54*62*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Simcom300d or Simcom340d |
| GPS Chip | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Voltage of car power system | 12 V -24V |
| |
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
| Functions | Tracking;Monitor;Geo-fence;Movement alert;Overspeed alert;SOS Button;Low battery alert; Hidden number tracking; Power off alarm; Send sms cut off/resume the oil and power system, arm, door alarm, sensor alarm,ACC alarm; Supoort 4G SD card; Support TCP and UDP protocol |
| Warranty | 12 months Warranty |

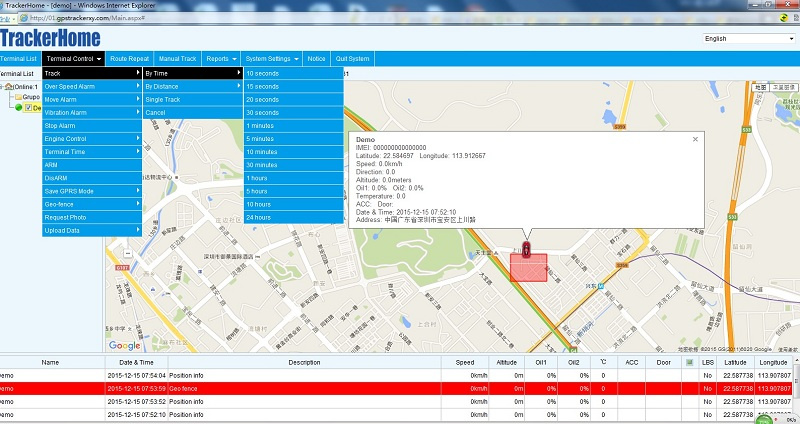

the following Four tracking solutions:SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen. Get absolute address by SMSAndroid IOS app tracking Web server online tracking. Capable of monitor 10,000 objects

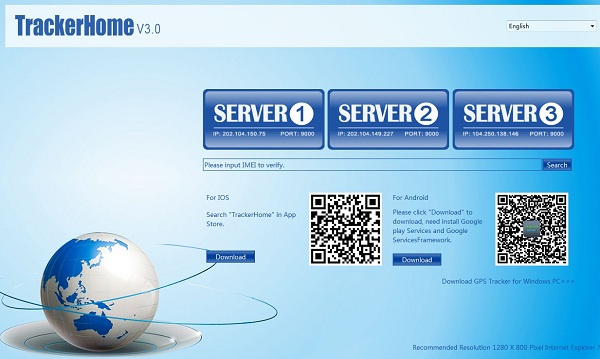

www.gpstrackerxy.cm (User ID:DEMO,PASSWORD :8888)
Android IOS app tracking
GPS103A/B photos
Clients need contact sales to learn optional accessory cost to buy
Shenzhen Coban Electronics co., Ltd company information We Coban Electronics Co.,Ltd are GPS Tracker manufacturer in Shenzhen,China,with the
strength of technical team to develop our own platform&firmware,excellent production lines ,strict quality controllersetc,with pretty competitive price and first-class service
90% of products are exported.The main market are European and American countries ,then Asian-African-Latin countries .
As part of the company growth, we are now sincerely looking for reputable retailers and
wholesalers help us developing new overseas market.
All our trackers are real time tracking system with google map, have the following 4 tracking solutions:
1.SMS tracking on cellphone with a googlemap link to view current location on map on
cellphone screen.
2.Get absolute address by SMS
3.Android IOS app tracking
4.Web server online tracking. Capable of monitor 10,000 objects
Why Choose Us
-Professional enthusiastic marketing team
-Expinreced engineers
-Good after sale service
-Good quality with CE, FCC certificates
-Patent
-fast delivery in 2-3 days
-First manufacturer to use google map link in message
-FREE tracking software
-OEM/ODM service
Our services
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
Delivery
1.Mini order will be delivered within 1-3 working days after the receipt of payment.
2.For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
4.Shipment: Express (FedEx, DHL, UPS ,TNT,Post) or Air freight or by your forwarder
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
