| Prod Model: |
GPS 105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
85*71*26mm |
| Certificate: |
CE |
| Main Feature: |
GPS Tracker, GPS Tracking |
| Sos Button: |
Yes |
| GSM Alarms: |
Geofence, Acc/Shock/Door/Movement Alarms |
| Optional Accessories: |

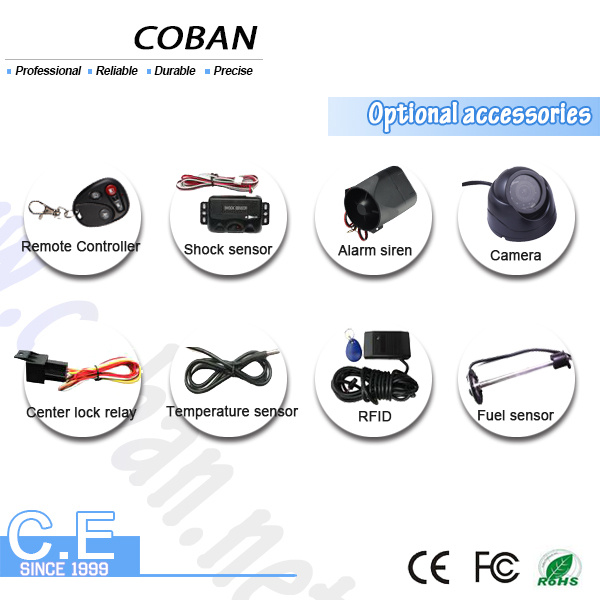

Camera, Fuel Sensor, Locking Door Relay |
| Mobile APP: |
Free APP for Ios, Android Phone |
| Remote Controller: |
Yes, for B Model |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Arm Alarms: |
Acc, Door Open Alarm, Shock Sensor and Camera Shot |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Model: |
GPS105 |
| Certification: |
ISO9001 |
Product Description

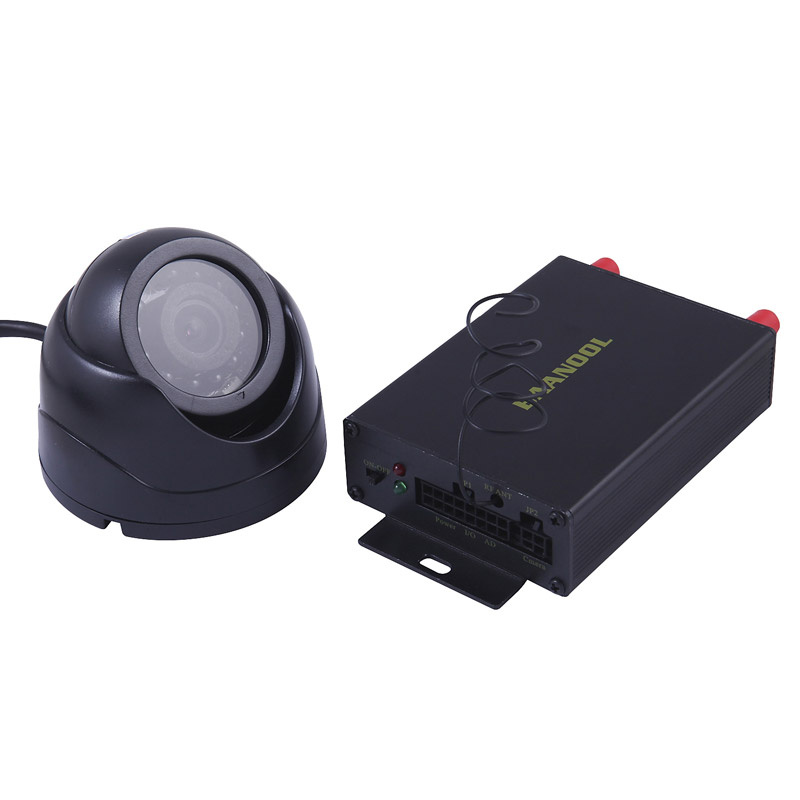

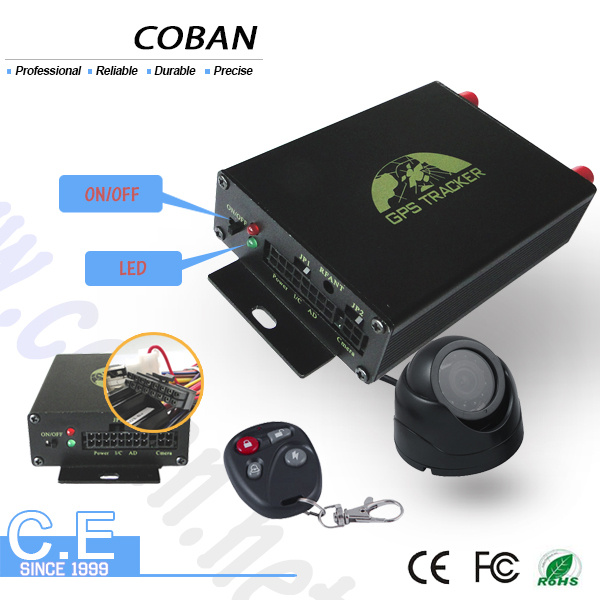

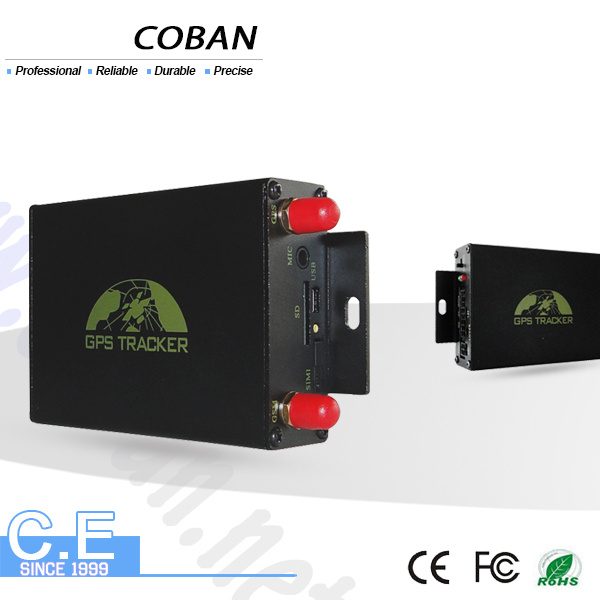

GPS 105 GPS Tracker Camera Dual SIM Vehicle Tracker System
NEW TK105 features and functions:
1. Dual SIM card(NEW).
2. SOS button.
3. Geo-fence; Movement/ overspeed/ low battery/ power off alert.
4. Door open/ ACC/ shock alert.
5. Cut off engine by SMS.
6. Record speed
7. Support 2GB TF card to store/upload data.
8. Support fuel sensor (NEW).
9. Support camera for real time photograph, view photo on the phone.
10. Track by phone/PC software/web platform (www. baanool.net. COM, demo ID: Demo, password: 8888)
New Functions:
14.ACC work and alarm
15.Cut off the Oil and Power,Engine stop and resume
16.Fuel sensor, Fuel alarm
17.Remote controller for option
18.Arm/disarm/silent mode/
19.Door oopen alarm,external shock sensor alarm, Accident alarm
20.Speed detector (speed recording,kilometrage report,governor mode)
21.Vehicle maintenance notification
22.RFID
23.Take photo
24.Temperature alert
25.Electric lock and Vapor lock swith
26.Supports dual SIM card
Specifications features:
DIM: 92*71*26mm
Weight: 170g
Network: GSM/GPRS
Band: 850/900/1800/1900MHz
GPS Sensitivity: -159dBm
GPSAccuracy: 5m
GPS Start Time: Cold status 45s
Warm status: 35s
Hot status: 1s
Applicable vehicle power: 12 V/24V
Backup Battery: Chargeable changeable 3.7V 500mAh Li-ion battery
Storage Temp: -40° C to +85° C
Operation Temp: -20° C to +65° C
Humidity: 5%--95% non-condensing
4 tracking solutions:
- SMS tracking by calling, return google map link
- Absolute street address by SMS
- optional Android IOS app tracking
- Optional web server
Applying directions:
Vehicle fleet/logistics/Vehicle rental / fleet management.
Standard Package Content:
1 X GPS unit
1 X GPS Antenna
1 X GSM Antenna
1 X Remote controller
1 X MIC
1 X Harness(16pin)
1 X Relay(12V)
1 X Manual
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
