| Prod Model: |
GPS305 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE |
| Delivery Time: |
1-3 Working Days |
| Shipment Terms: |
DHL, UPS, EMS, TNT, FedEx, Hkpost, Aramex etc |
| Tracking Solutions: |
SMS, GPRS Web Platform, Android Ios APP |
| Changeable Li-ion Battery: |
2*700mA, Long Battery Life 30days |
| Network: |
GSM GPRS |
| Sleep Mode: |
to Save Power and Data |
| Arm: |
by Inductive Key |
| GPS: |
Ns1315 |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Model: |

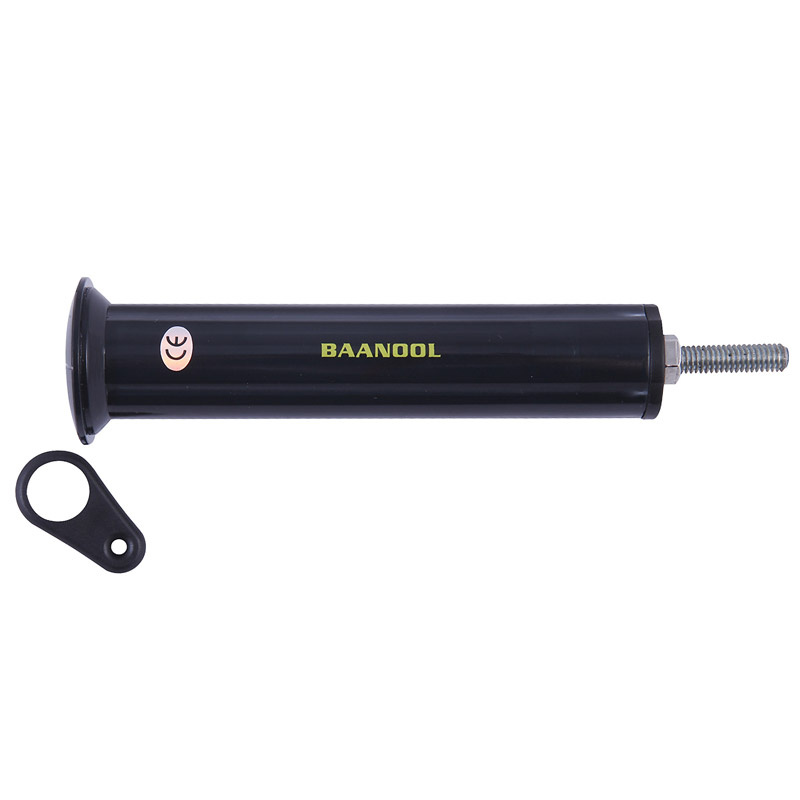

Bike GPS 305 |
| Screen Size: |
No Screen |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description
How is working ?
Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of its location thru a SMS message. You can then use these coordinates on any mapping software (for example google earth) which will show where exactly the unit is located.
With some little setup, you can also have the device to send the data directly to a computer through GPRS and display its location on a map with our bundled software for real-time location tracking. our online software tracking platform is:www.baanool.net (server 1,demo id:demo,password:8888)
Main functions
Band: 850/900/1800/1900Mhz
GPS sensitivity: -159dBm
double real time tracking solution
Bicycle mode
Sleep by shock sensor(Calling is available)
Deep sleep by shcok sensor(Calling is not available)
Report positions according schedule
ARM & DISARM by SMS
ARM & DISARM by inductive key
shock sensor, movement, Geo-fence,over speed and low battery alarm
700MA Changeable Li-ion Battery
SMS tracking on cellphone with google maps link
Absolute street address by SMS.WEB online tracking server, free pc based tracking software
Set Authorization(5 mobile phone numbers to be allowed to authorize in the tracker)
Auto track continuously:track by time and distance interval.
Location based service(LBS) + GPS double real time tracking solution
Specification
Content |
Specs |
DIM |
23.5×110mm |
Weight |
50g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Charger Voltage |
110-240V input
3.7V output |
Battery |
Chargeable changeable 3.7V 700mAh Polymer battery |
Standby time |
30 Days |
Storage Temp |
-40°C to +85°C |
Operation Temp. |
-20°C to +70°C |
Humidity |
5%--95% non-condensing |
