| Prod Model: |

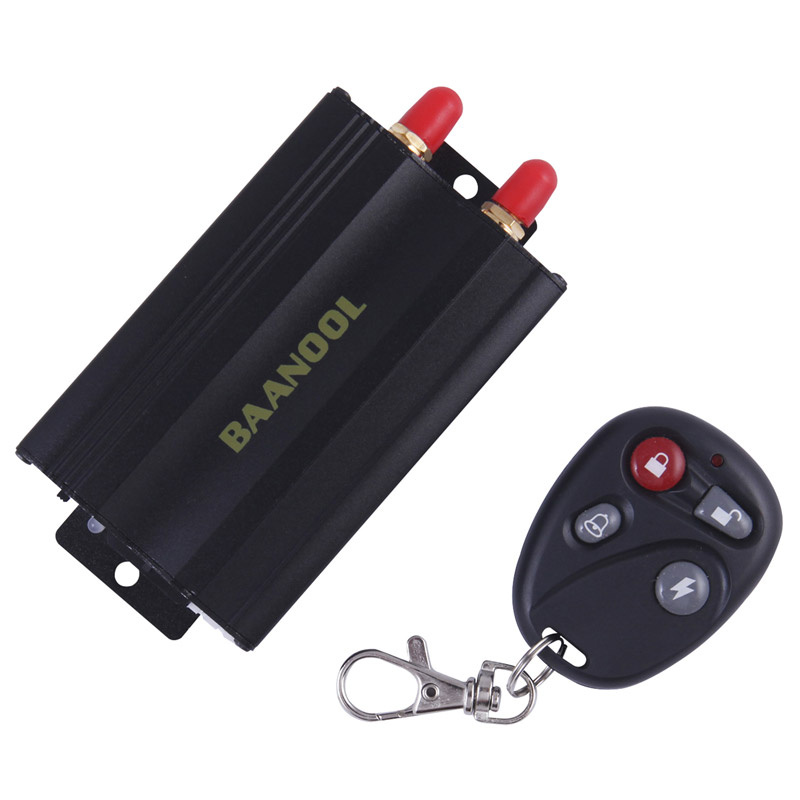

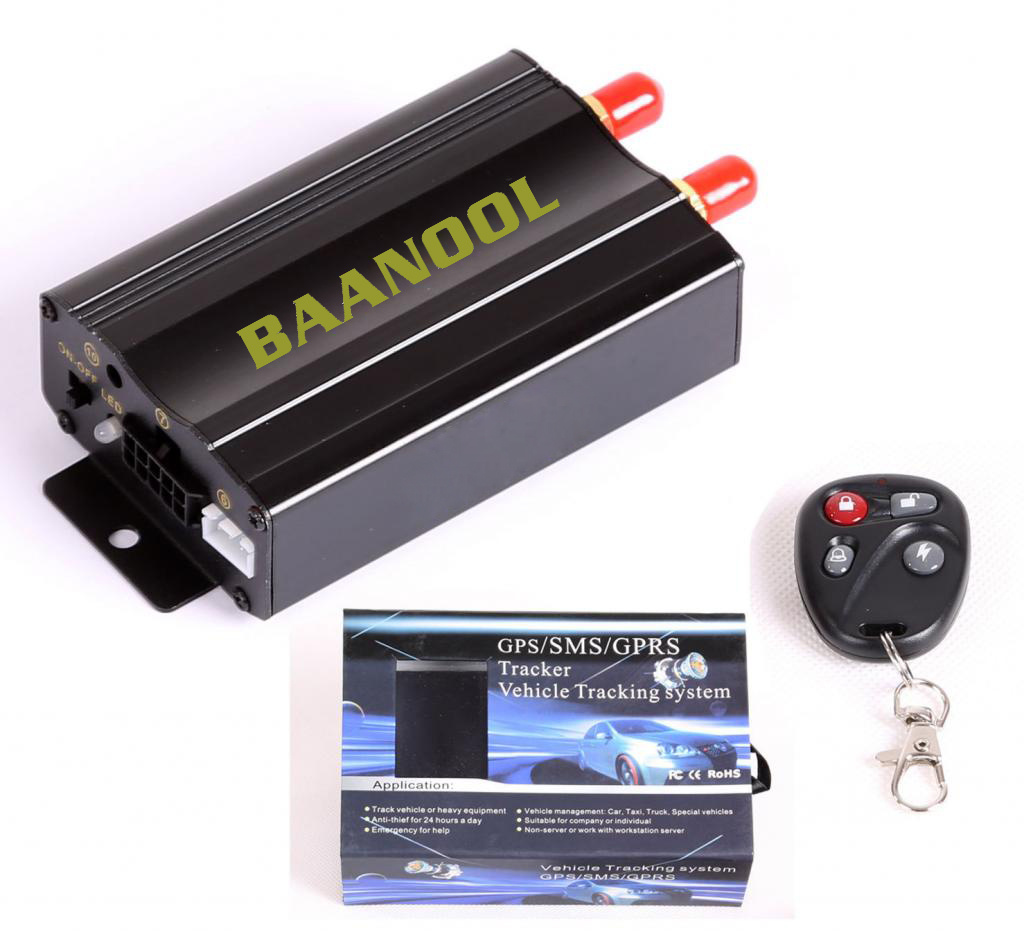

TK103 GPS Car Alarm Tracking System |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
120g |
| Feature: |
Acc / Door Alarm, Fuel Sensor, Engine Cut off |
| Remote Controller: |
Optional |
| Warranty Time: |
1 Year |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Function: |
Vehicle Car Anti-Thift GPS Tracker |
| Certificate: |
CE FCC ISO |
| Network: |
GSM/GPRS |
| Tracking System: |
SMS, Phone APP, Web Platform |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Model: |
103 |
| Screen Size: |
No Screen |
Product Description
TK103 GPS tracker 1. Work worldwide use (850/900/1800/1900MHz)
2. Can accurately position even if with weak signal--LBS location
3. High-sensitivity, latest technology and the most advanced GPS chip
4. Tracking on demands or SMS commands
5. Tracking by time intervals
7. Real time tracking via SMS or GPRS (TCP/UDP)
8. Show location directly on mobile phone with HTTP link
9. Five authorized phone numbers to protect tracker information and assets
10. Easy switch for track or Monitor
11. SOS button for emergency
Feature: 1)Support ACC, Door and Shock sensor alarm
3)Reset inside GSM and GPS module by SMS and Reset button
4)"Arm" and "Disarm" by sending SMS
5)Support Silent Mode by SMS commands
6)SMS tracking on cell phone with Google maps link
7)Get accurate address including street name by SMS
8)Real time tracking
9)Free PC based software for live tracking
10)Web based online tracking server
11)Five mobile numbers can be authorized to device
12)Support GPS+LBS Positioning ways
Basic Functions: 1. ACC alarm, Door alarm and Shock sensor alarm at ARM state
2. Set up ARM and DISARM by Cell phone or remote controller
3. Anti-thief for 24 hours a day to protect the vehicle well
4. Emergency for help, SOS panic alarm
5. The internal GSM and GPS module can be reset by press reset button or SMS
6. Free PC Platform use free Google map, it is not necessary to pay any map charge
7. If enters places (underground park) without GPS, it will report the last position tracked
8. Send alert of over range/speed to the authorization phone when it go out the restricted area/exceeds the restricted speed
9. Power or Oil cut off and resume/restore alarm by SMS GPRS
10. Show location directly on mobile phone with HTTP Google map link
11. Web based online tracking at our server
12. View target current location on map on the cell phone and PDA with maps links in the message from tracker
13.24 hours real-time SMS/GPRS tracking
14. Auto tracking continuously
15. Sending "address+password" to unit to get absolute street address
16. Support GPS+LBS double positioning ways
17. Set the local GPS time by SMS
18. Low battery alarm
19. Geo-fence
20. Movement alarm
21. Over speed alarm
Application Vehicle monitoring
Car positioning
Logistic monitoring
Optional accessories: Shock sensor (optional for model A/B);
Alarm siren (optional for model A/B);
Remote controller (optional only for modelB)

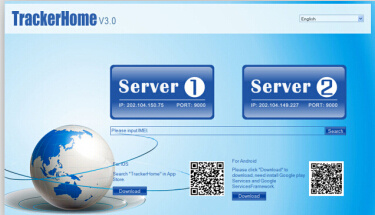

How to tracking ?
The GPS devices support phone tracking and 13 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
| Brand | Specification |
| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Humidity | 5%--95% non-condensing |
| Temperature | Operating Temperature | -20& deg; C to +65& deg; C |
| Storage Temperature | -40& deg; C to +85& deg; C |
| Voltage of Car power system | 12-24V |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
